| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $69.21 | $67.80 | $65.68 | $62.85 | Contact US |
HT6100 Bluetooth Version Shooting Speed Tester with 32mm Protection Tube Initial Speedometer (AAA Battery Version)
$44.53
HT6100 Standard Version Shooting Speed Tester with 32mm Protection Tube Initial Speedometer (AAA Battery Version)
$42.59
HT6100 Voice Broadcasting Version Shooting Speed Tester with 32mm Protection Tube Initial Speedometer Built-in Lithium Battery
$43.56

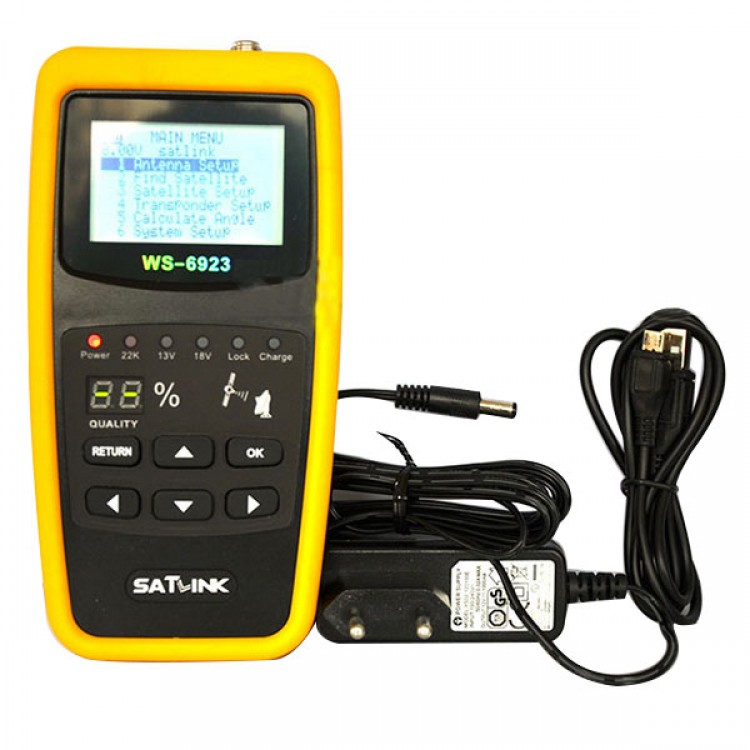

2.1" Satlink WS 6923 Satellite Finder Digital Satellite Finder WS6923
Key Features:
- 2.1 Inch LCD Screen Display
- Input Frequency 950~2150MHz
- Input Level -65~ -25dBm
- Input Impedance 75Ω
- Measurement Type: signal strength,quality;ber;pwr
- Sound for Locking Signal
- Support DISEQC 1.0 and 22khz Tone
- LNB Power Supply:18/13V(IMax 300mA)
- Beep Integrated
- 8.4V/800mAh Lion Battery Included
- Max Operating Time:3 hours
- 12V/1.2A DC Adapter
- USB Port For Software Upgrades
- Speaker Integrated
- 8.4V/3000mAh Lion Battery Included
- Max Operating Time: 4 hours
- 12V/1.5A DC Adapter
Technical Specification:
|
TRANSMISSION STANDARDS |
||
|
DVB-S |
||
|
SATELLITE INPUT/DEMODULATION |
||
|
Connector Type |
F Type |
|
|
Input Frequency |
950 to 2150 MHz |
|
|
Signal Input Level |
- 65 to -25 dBm |
|
|
Band Switch Control |
22KHz |
|
|
LNB Supply |
13V/18V, IMax300mA |
|
|
Demodulation Type |
QPSK |
|
|
Symbol Rate |
2<Rs<45Mband(SCPC/MCPC) |
|
|
LCD FEATURES |
||
|
LCD Type |
FSTN Positive transflective |
|
|
Number of Dots |
128 x64 |
|
|
Active area (WxH) |
59.6x43 mm2 |
|
|
DATA SERVICE PORT |
||
|
Connector |
USB |
|
|
Data protocol |
USB to RS-232 |
|
|
POWER SUPPLY |
||
|
Li-Ion Battery |
8.4V/800mAh |
|
|
Adapter |
OUTPUT :DC12V/1A, INTUPT :100-240VAC 50/60Hz |
|
|
Power consumption |
Max. 5W |
|
|
PHYSICAL CHARACERSTICS |
||
|
Size (W x D x H) |
8x16x4(cm3) |
|
|
Net Weight |
0.25kg |
|
