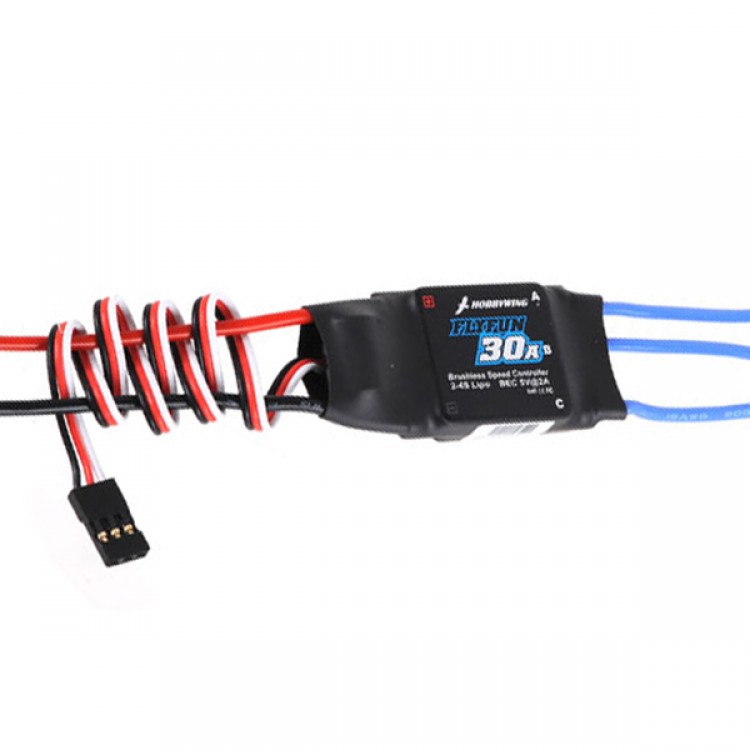

30A Build-in BEC 2A Brushless ESC Hobbywing Program Quad-Rotor Multi RC Helicopter
Features
- Safety Arming Feature: Regardless the throttle stick position, the motor will not spin after battery connected.
- Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.
- Programmable Items:
- Brake Setting: brake enabled / brake disabled.
- Battery Type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd).
- Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power.
- Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high.
- Start Mode: normal / soft / very soft.
- Timing: low / medium / high.
- Reset: reset all the programmable items to their default settings.
- Full Protection Features: Low voltage cutoff protection / Over-heat protection / Throttle signal lost protection.
Specification
- Output: Continuous 30A, Burst 40A up to 10 Secs.
- Input Voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery.
- BEC: 2A / 5V (Linear mode).
- Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.
(BLM: BrushLess Motor)
- Size: 45mm (L) * 24mm (W) * 11mm (H).
- Weight: 25g.
