Product Description:

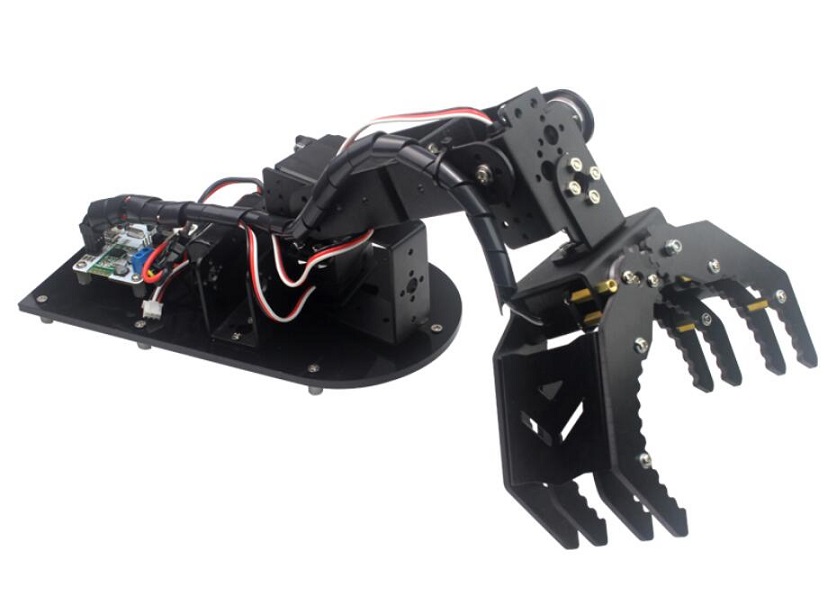

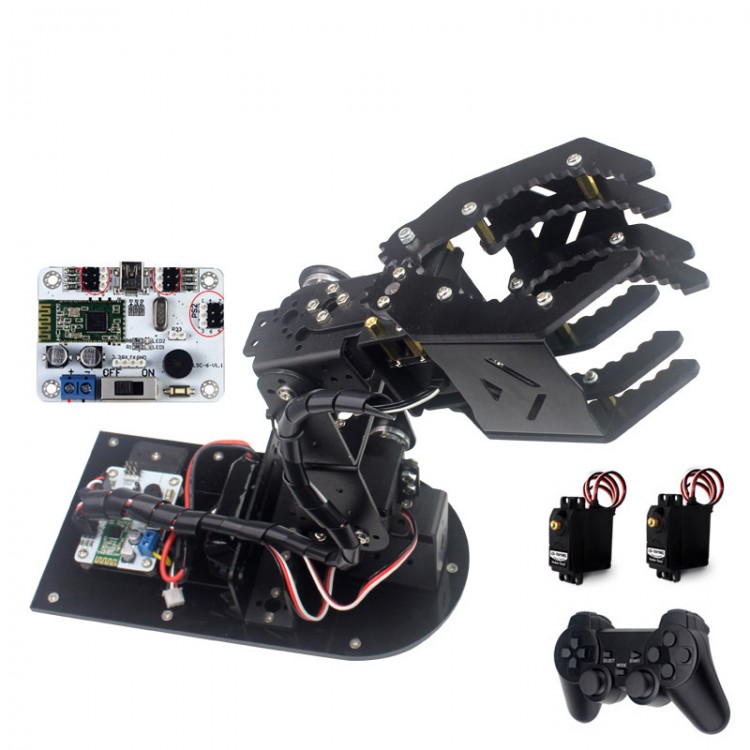

- 4DOF Large Claw Robot Mechanical Arm
- Mobile bluetooth control,computer/handle control
- Digital servo
Mechanical Arm Features:

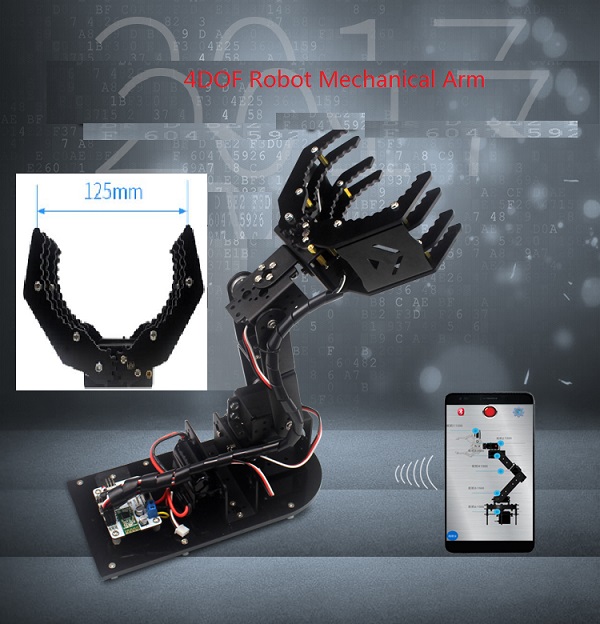

- Super large claw:125mm opening width,110mm claw length.hard aluminium alloy+ glass fiber material,stable symmetrical clipping

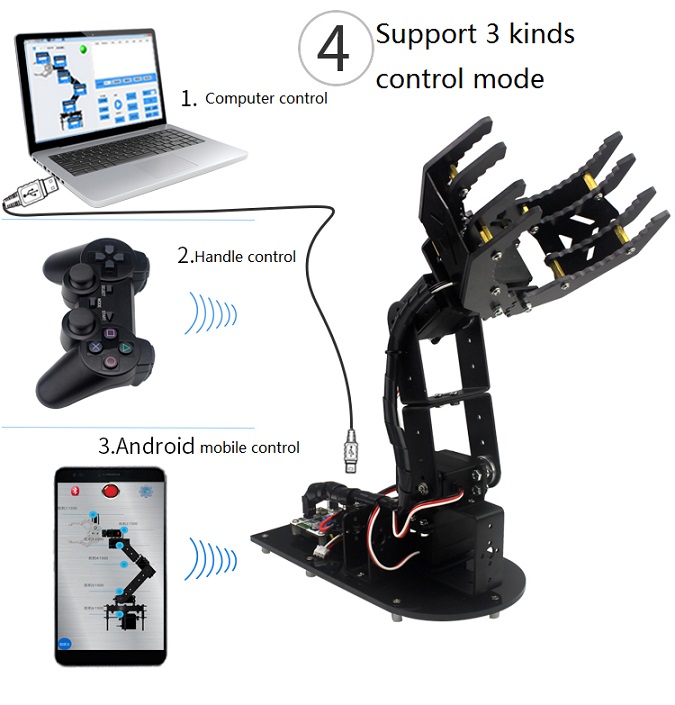

- Multi control method:mobile,computer,handle,the second development.support 3 kinds control mode:computer control,handle control,Android mobile control.
- Strong protection:The control board has over current protection avoiding servo damage.
- Long endurance:7.4V aeromodel lithium battery,1500mah,can last 60 minutes.

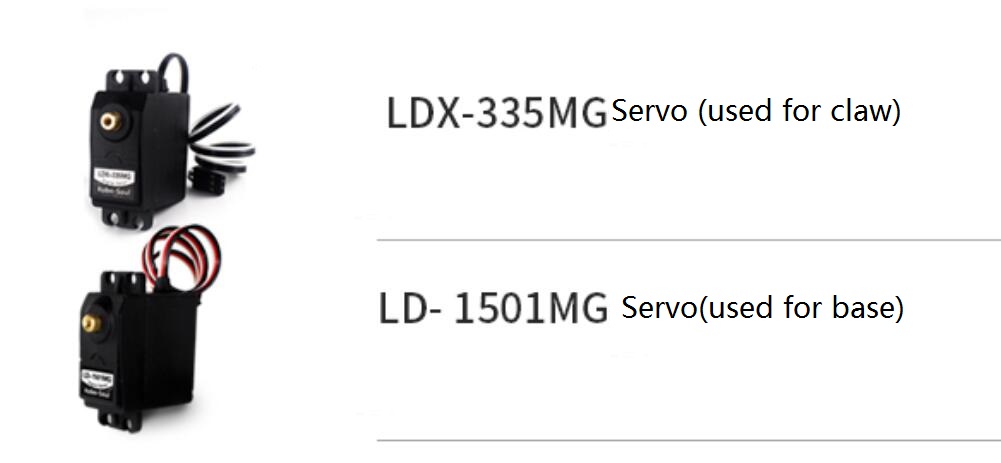

Digital servo:
- LDX-335MG servo (used for claw);large torque:17kg/cm;long life,fire resistant.
- LD-1501MG servo(used for base);large torque:15kg/cm;mall noise,smooth.

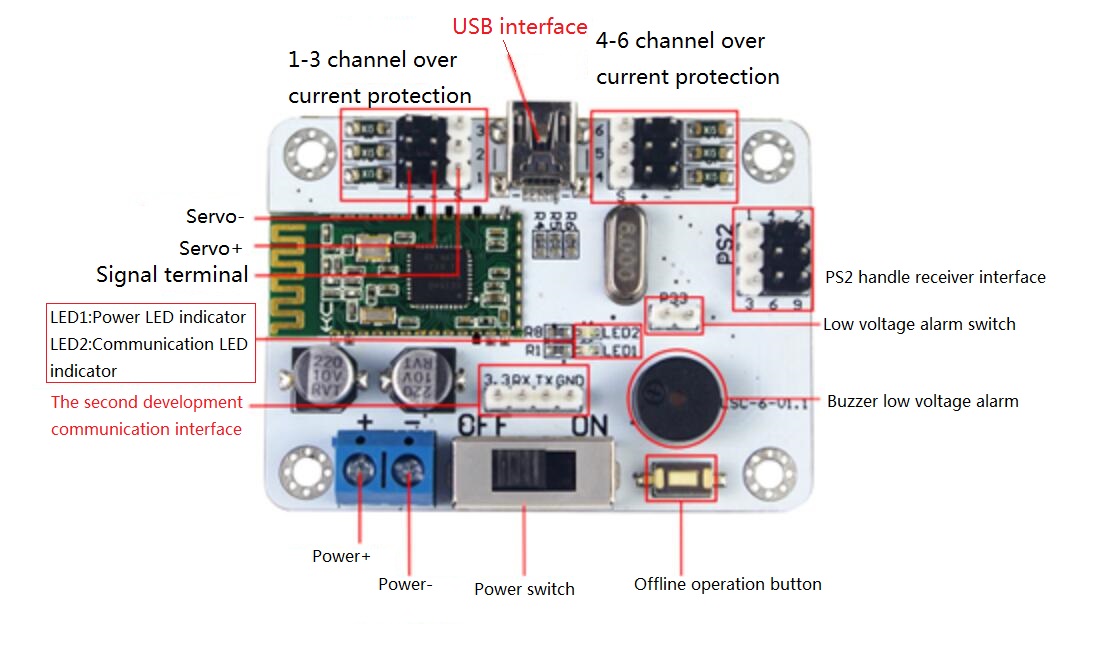

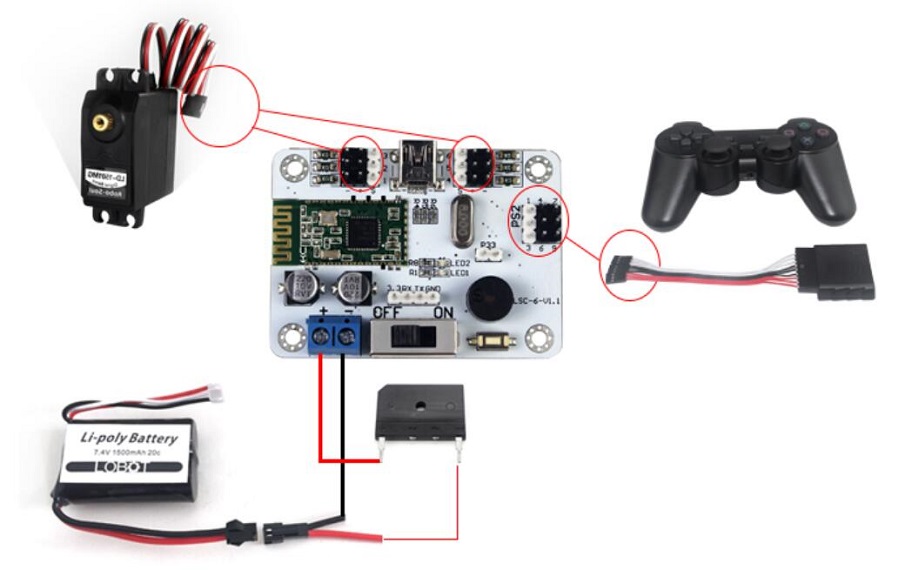

6-channel bluetooth servo control board Features:

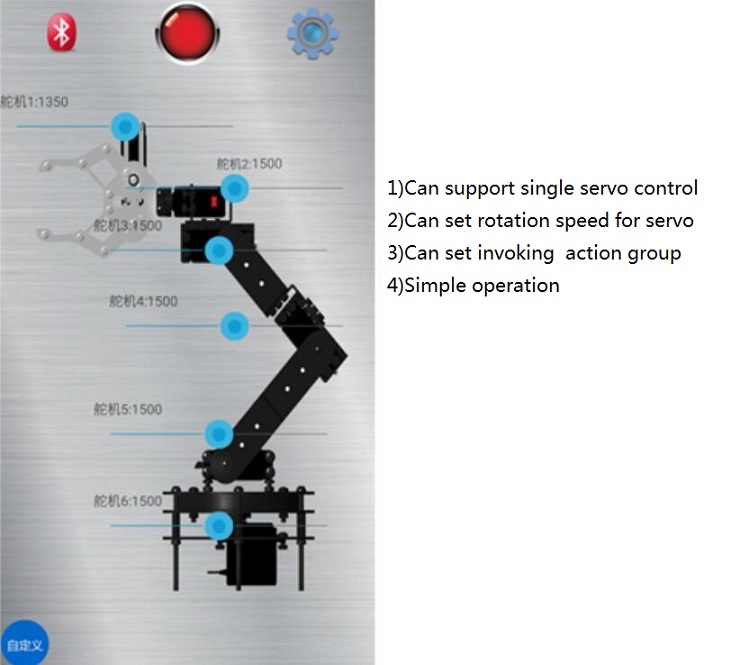

- Built-in bluetooth,support mobile control mechnical arm,can control single servo

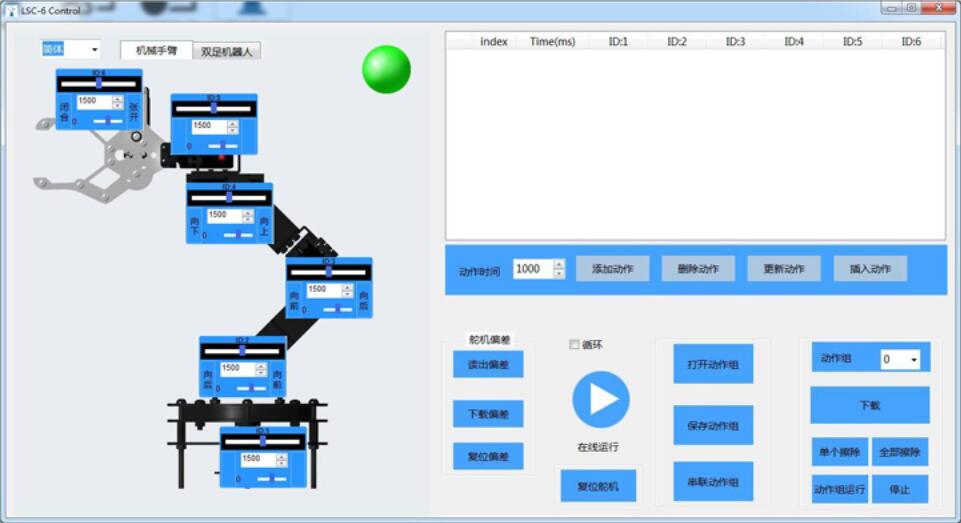

- Support graphical programming,connect computer with USB cable,you can operate online.
- Built-in switch,imple interface,low voltage alarm.
- 6-channel over current protection avoiding servo damage.
Note:The servo controller reserves serial communication interface and it can conduct TTL level serial communication with other singlechip.You can issue instructions to control board through other singlechip and achieve intelligent movement for mechnical arm.

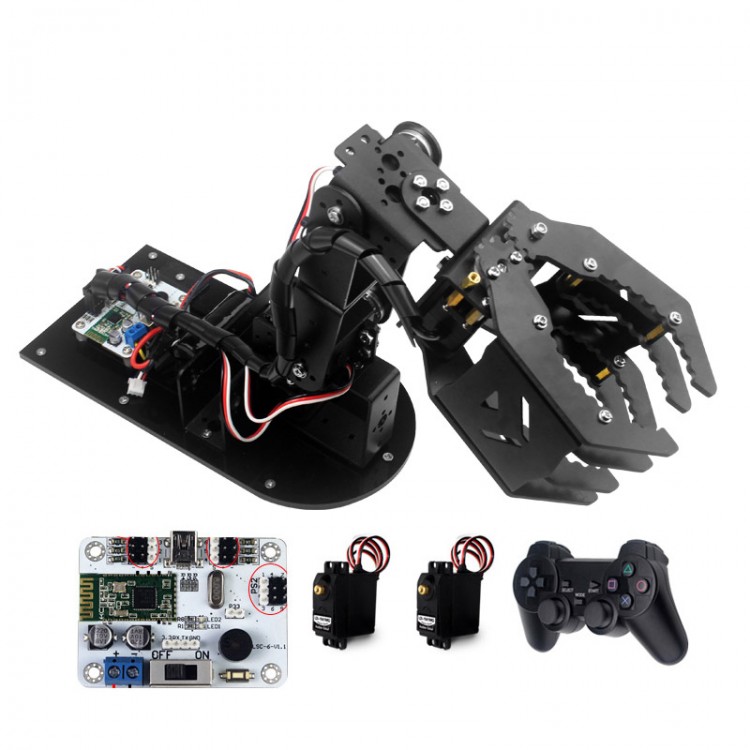

Package List:
- 1 x Mechnical arm bracket
- 1 x PS2 handle
- 1 x LDX-335MG servo
- 1 x LD-1501MG servo
- 1 x 6-channel bluetooth control board
