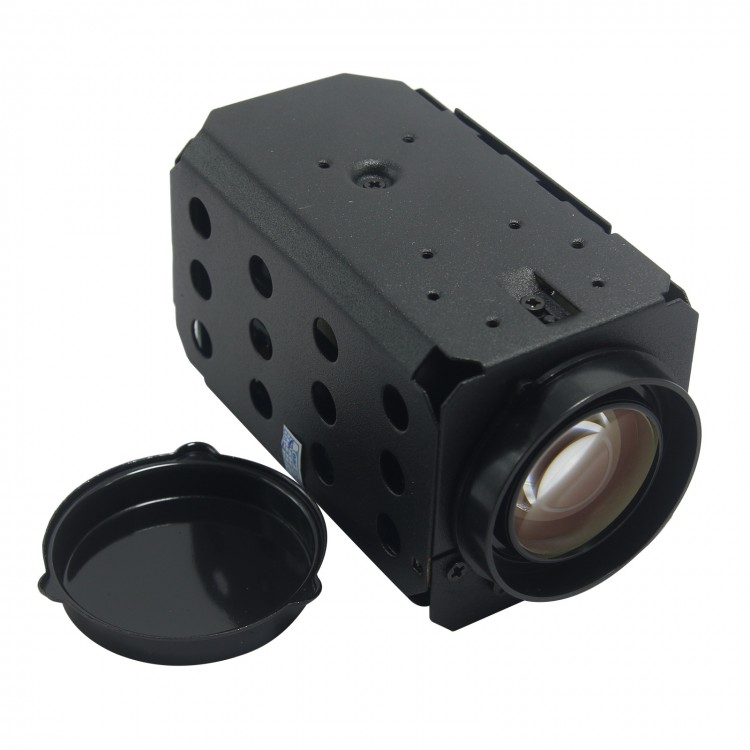

FPV Monitor Camera 300X Zoom 700TVL HD High Speed Cam Core 1/3" CCD Effio DS for Photography

FPV Monitor Camera 300X Zoom 700TVL HD High Speed Cam Core 1/3" CCD Effio DS for Photography

Features:
- New 1/3SONY Effio-S DSP 700TVL Super high level resolution
- English and Chinese menu
- High speed digital continuous tracking auto focus technology
- Strong light suppression, privacy shielding function
- Dual filter IR-cut switching, enhanced infrared, low illumination
- Frame accumulation 10 times electronic amplification (digital amplification)
- Digital 3D down impatient
- Compatible with sony/LG protocol

Specification:
- Type: Special high speed ball movement
- Video standard: PAL (PAL by default)
- Imaging source: 1/3" SONY CCD Effio DSP  with IR-cut switch
- Active pixel: 976 (H) * 582 (V)
- Synchronization system: 50Hz internal synchronization
- Minimum illumination:Color: 0.01Lux/F1.2 black and white: 0.001Lux/F1.2 (infrared compensation under 0Lux/F1.2)
- Induction infrared: Yes
- Color to black and white: Yes
- IR-cut: Yes
- Resolution: 700 TVL
- Signal to noise ratio:>60dB (enhanced)
- Focal length:3.9~39.0mm
- Multiple:10 times
- White balance: automatic
- Strong light suppression: Turn on / off
- Focus control:Automatic / manual / automatic
- RIS Mode:automatic
- Screen menu control:Address code, gain control, backlight compensation, strong light suppression, privacy masking
- Electronic shutter:automatic
- Video output: 1.0Vp-p, 75
- Gamma coefficient: 0.45
- Backlight compensation:Built in (on / off)
- Gain control: automatic
- Agreement: SONY or LG
- Baud rate: 2400/4800/9600
- Working temperature: -20 C to  +50 C
- Working humidity:0%~96%
- Power Supply:DC12V/90mA
- Outline dimension:65x40x40mm

Package List:
- 1 x FPV monitor camera
