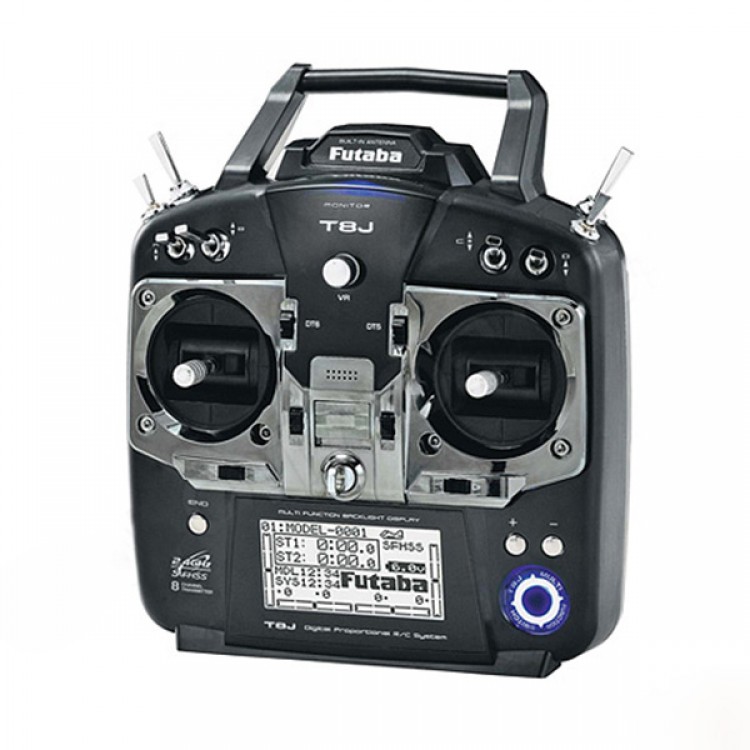

Futaba T8J 2.4Ghz S-FHSS 8ch Transmitter + R2008SB Receiver Combo Mode1 /2/3/4
System Features:
- Futaba S-FHSS 2.4GHz security (also compatible with FHSS)
- Airplane and Helicopter modes
- 20 model memory
- S.Bus-compatible S-FHSS receiver
- Wireless transfer of model data to and from other 8J transmitters
- 10-character model and user naming
- Large (128 x 64 dot) backlit LCD display
- 8 channels (one variable knob, five 2-position switches, two 3-position switches, one momentary switch, two digital levers)
- Quick and easy programming using a jog dial and three buttons
- End point adjustment
- Dual Rate/Expo (any switch selectable)
- Servo reversing
- Sub Trim on all 8 channels
- Digital Trims
- Trim Step adjustability
- ATL (Adjustable Travel Limit)
- Failsafe on all 8 channels
- Trainer mode
- Throttle cut
- Two Count-up/Count-down timers plus integrated timer
- Model timer
- Range check mode
- Servo Monitor/Test
- Auxiliary Channel switch/level assignability
Helicopter Features:
- Six programmable mixes (two with curves)
- 8 Swash Plate types
- 5 Flight Conditions (normal, idle up 1, idle up 2, idle up 3, hold)
- Throttle curve (five points/four curves)
- Pitch curve (five points/five curves)
- Throttle hold
- Hover pitch mixing
- Hover throttle mixing
- Gyro sensitivity/mixing
- Governor setting/mixing
- Hi/Lo Pitch mixing
- Offset mixing
- Condition delay
- Throttle mixing (swash>throttle)
- Throttle/Needle mixing (5 point curve)
- Swash AFR
- Swash mixing
- Electronic swash ring
- Throttle delay
- Revolution mixing
Aircraft Features:
- Six programmable mixes (two with curves)
- Flaperons with differential rate
- Flap Trim
- Differential Ailerons
- V-tail mixing
- Elevon
- Ailevator
- Snap Roll
- Elevator/Flap mixing
- Airbrake/Landing
- Aileron/Rudder mixing
- Flap/Elevator mixing
- Gyro sensitivity
- Throttle curve (5 points)
- Pitch curve (5 points)
- Throttle delay
- Throttle/Needle mixing (5 points)
- Idle down (any switch selectable)
- T8J 2.4GHz S-FHSS 8-Channel Transmitter Specifications:
- Type: 2-stick, 8-channel S-FHSS/FHSS selectable
- Current Drain: 140mA
R2008GS 2.4GHz S-FHSS 8-Channel High-Voltage Receiver Features:
- Small, lightweight 2.4 GHz FHSS eight-channel receiver incorporating Frequency Hopping technology, S.Bus supported!
- No crystals, no spot frequency selection, and maximum protection from same-channel interference thanks to high-speed 2.4 GHz FHSS technology. High-speed Frequency Hopping for effective suppression of interference signals.
- Frequency Hopping system with thirty channels at 1.5 MHz spacing in the 2404 - 2447.5 MHz range. Maximum 28 simultaneous users.
- Not compatible with FASST transmitters. Only for FHSS systems such as T2PL, T3PL, T4YF, T4PL, T6JG)
- Not recommended for large-scale model aircraft and jets.
- Range: approx. 1000 m
R2008SB Receiver Specifications:
- Type: Full-range flight receiver
- Modes: S-FHSS or FHSS
- Features: High-voltage operation, frequency-hopping Spread Spectrum design, Dual Antenna Diversity, S.Bus compatibility
- Voltage Input: 4.8V-7.4V battery or regulated output from ESC
- Compatible Batteries: NiCd, NiMH, LiPo, LiIon or LiFe
- Dimensions: 0.98 x 1.69 x 0.55 in (24.9 x 42.8 x 14.0 mm)
- Weight: 0.34 oz (9.5 g)
Included:
- T8J 2.4Ghz S-FHSS 8ch Transmitter (support mode 1,mode 2,mode 3,mode 4)
- R2008GS 2.4Ghz 8ch HV S.Bus Receiver
- On/Off Switch Harness
- Extra Brade Spring
- English Manual
