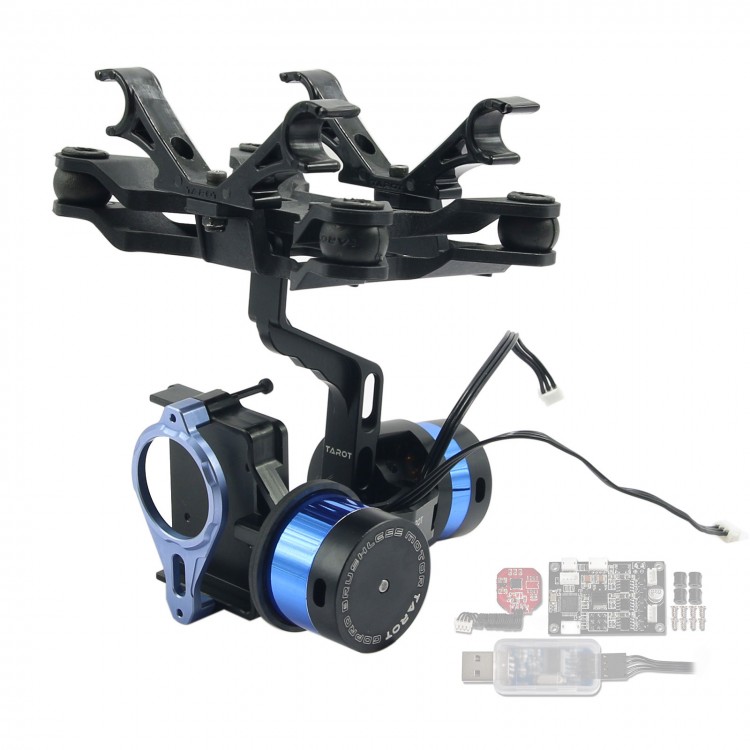

Gopro 2-axis Brushless Gimbal with Gyro TL68A00 Tarot Two Axis FPV Camera Brushless Gimbal

Gopro 2-axis Brushless Gimbal with Gyro TL68A00 Tarot Two Axis FPV Camera Brushless Gimbal

T-2D PTZ is TAROT company for GoPro Hero3 camera was developed, used in photographic film and entertainment, advertising and many other areas of model aircraft photography. PTZ using 6061T6 aluminum alloy full CNC precision machining, brushless direct drive motor, the overall framework designed with the idea of ​​compact, easy installation and other characteristics. Stable head structure allows the aircraft is flying at high speed state, still be able to precisely control the camera mounted GoPro Hero3 remain stable, so that the screen output to achieve the best model aircraft photographic effects.
Gopro two-axis brushless PTZ English software description and download link:
manual

Product Features:
- Support GOPRO Hero3 video auxiliary output
- Support the supply voltage polarity protection and voltage compensation
- Support the motor drive end short-circuit protection
- Support for custom initial pitch angle
- Support sensitivity parameter adjustment and software 3D pose show
- The support rocker rate mode and position mode
- Support Receiver: conventional receiver, S-BUS receiver, DSM2/DSMJ/DSMX receiver
- Support for remote devices: PPM/PCM/2.4G
- The working voltage: DC 7.4V ~ 14.8V (Recommended 12V, three lithium battery)
- Working current: 200mA-500mA (power supply voltage and the motor related)
- The working environment temperature: -15℃ ~ 65℃
- The processor: Dual 32-bit high-speed ARM core processor
- The sensor: Three rotor MEMS gyroscope rotor MEMS accelerometers and the three
- The maximum angular rate: 2000° / sec
- The maximum acceleration: 16g
- The control frequency: 2000Hz
- The motor drive frequency: 20KHz (no noise smoothing driven)
- The control accuracy: 0.1°

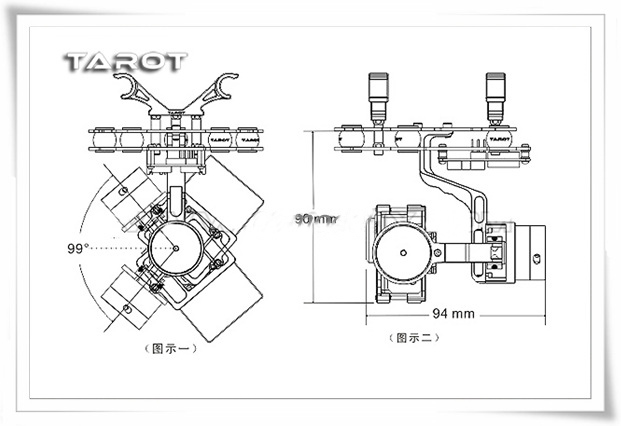

- The control angle range: -45° ~ 45° (roll), -135° ~ 90° (tilt)
- Pose solver algorithms: PTZ dedicated brushless motor decoupled EKF algorithm
- For shooting equipment: GOPRO Hero

Related Part Number:
- Head hanging hook TL68A01
- GOPRO camera fasteners TL68A02
- GOPRO brushless PTZ camera frame assembly TL68A03
- GOPRO head roll arm TL68A04
- GOPRO PTZ stand arm motor base TL68A05
- GOPRO brushless motor TL68A06 PTZ
- GOPRO two axes PTZ shock group TL68A07
- GOPRO brushless pan rack assembly TL68A08
- GOPRO head roll axis brushless motor TL68A09
- GOPRO AV video output cable TL68A10
- GOPRO PTZ suspension ball TL68A11
- GOPRO two-axis gyroscope ZYX22 PTZ



Specifications:
- GOPRO brushless pan rack assembly TL68A08 × 1
- GOPRO two-axis gyroscope ZYX22 × 1 PTZ
- Weight: 195G
