HSS86 Hybrid Servo Driver Full Closed Loop + 86HSE4N-BC83 4Nm Speed Stepper Motor
Introduction:
- 86 full close loop stepper motor driver HSS86 + motor 86HSE4N-BC38 set:1500 rpm rated speed, the maximum rated speed 3000 rpm, torque 4NM, shaft 14MM, send 3 meters coding line, with low heating efficiency, high precision, high response and so on!
- The HBS series offers an alternative for applications requiring high performance and high reliability when the servo was the only choice, while it remains cost-effective. The system includes a 3-phase stepper motor combined with a fully digital, high performance drive and an internal encoder which is used to close the position, velocity and current loops in real time, just like servo systems. It combines the best of servo and stepper motor technologies, and delivers unique capabilities and enhancements over both, while at a fraction of the cost of a servo system.
Product Feature:
- Closed-loop, eliminates loss of synchronization
- Broader operating range – higher torque and higher speed
- Reduced motor heating and more efficient
- Smooth motion and super-low motor noise
- Do not need a high torque margin
- No Tuning and always stable
- Fast response, no delay and almost no settle time
- High torque at starting and low speed, high stiffness at standstill
- Lower cost
Parameters:
- Dimensions: 86*86*102mm
- Shaft diameter: 14mm
- Torque: 4Nm
- Max.speed: 3000rpm
- Rated speed:1500rpm
- Key groove: with
- Current: 4A
- Output current:peak 5.0A (The current varies with load.)
- Logic input current:5~20mA
- Pulse frequency:0~300KHz
- Adaptive motor:86HSE4N
- Voltage:VAC20-80V
- Rated speed: 1000rpm
- Motor:32 bit motor DSP chip
- Insulation resistance:>=500M ohm
- It can drive 86 Series hybrid stepping closed loop motor
- The pulse response frequency is up to 200KHZ
- The maximum 40000 steps / RPM,16 segments are optional
- With over-current, overvoltage, position exceeding tolerance protection
Package included:

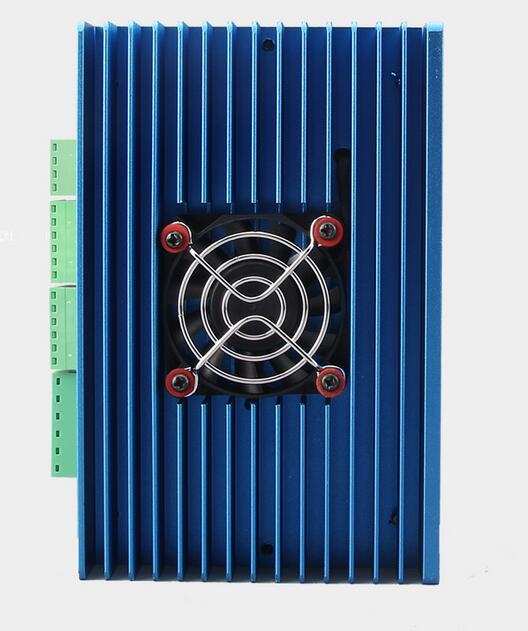

- 1 x HSS86 Hybrid Servo Driver Full Closed Loop 86HSE4N

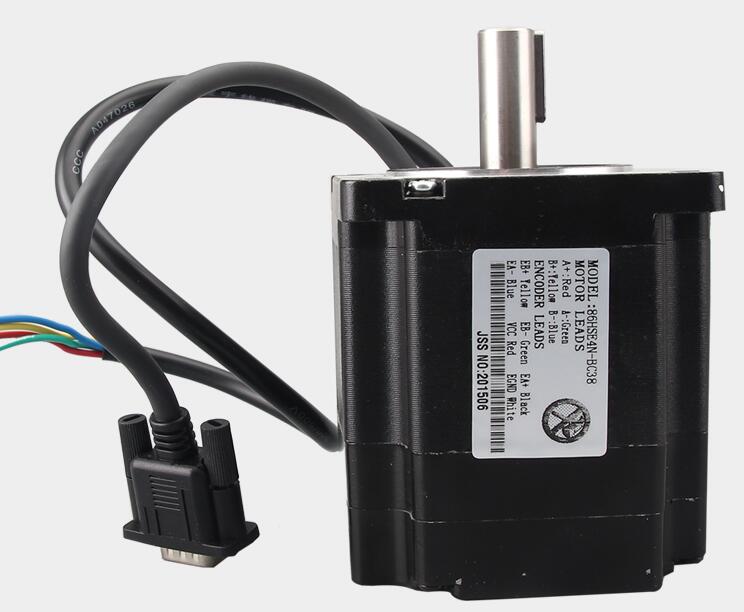

- 1 x 4Nm Stepper Motor
