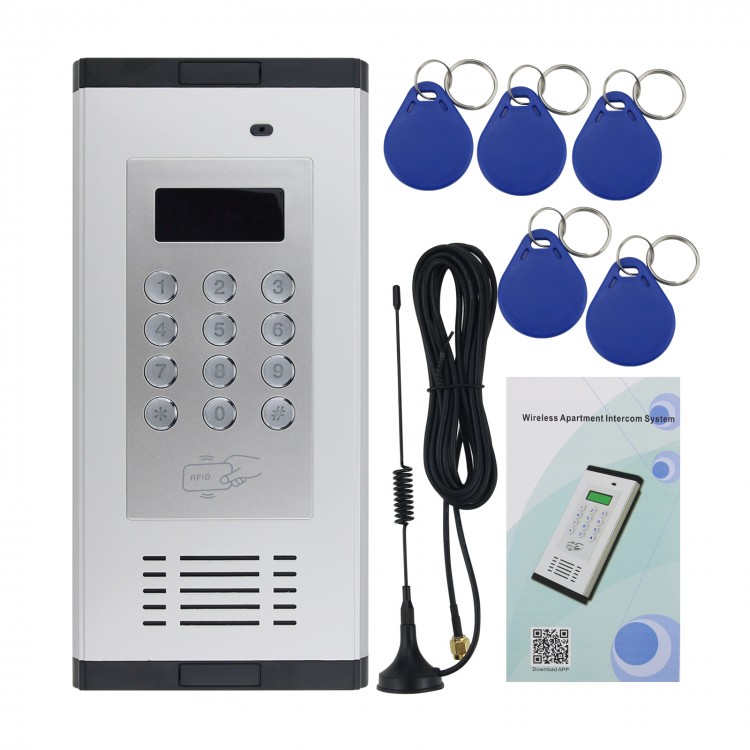

K6 Wireless Intercom System Security 2G Audio Intercom Gate Door Entry Access Control RFID

K6 Wireless Intercom System Security 2G Audio Intercom Gate Door Entry Access Control RFID

Advantages:
- Open the gate with a FREE call from authorized phones;
- Each Room has an Admin Password and 5 authorized Phone Numbers and 10 IC card;
- 2G module:Full frequency
- User Friendly Design, LED Screen, Alloy Shell and keypad , Easy for installation;
- Authorized 200 users open the gate,designed for large apartment;
- High quality two-way communication,or carries out the open door action on the first 'ring' (Be switchable);
- Nice price ,Functional and practical,No indoor extension,No cabling cost,lower maintenance costs later;
- 2 Relay Outputs (NC/NO),  compatible with Electronic Locks and CCTV Camera;
- 12V DC Power supply, Relay close time is programmable (1~300 seconds), when it is 0 second, indicating no action.

Product Description:
- Name:2G Access Control
- Model: K6
- The 2G Access Control is a new type advanced Access Control system, it supports dial to open the door for user or visitors. By this new type access control system, no need to install indoor intercom any more to save wiring and indoor intercom cost.
- The 2G Access Control full frequency, supports up to 1000 authorized phone numbers for maximum 200 room numbers, it is special for apartment access control.
- For authorized users, the 2G Access Control will reject the call from authorized number then carries out the open door action on the first 'ring', no call charges. Also, the user can use RFID card to open the door.
- For visitors, dial the room number on the Access Control keypad, the Access Control will dial the room owner’s phone automatically, the owner can open the door remotely or reject to open the door.
- For administers, can manage the room owner phone numbers remotely by SMS or by keypad.

Mainly Features of Access Control system:
1.Full frequency 2G module;
2.Secure - Using caller ID for identification, unknown callers are ignored;
3.No need to install indoor intercoms, no need wiring and indoor intercom cost;
4.No call charges. the Access Control rejects the call from authorized number then carries out the open door action on the first 'ring';
5.Can open the door for visitors from anywhere, no distance limit;
6.No need to provide a remote control or keys or RFID card for different users;
7.Up to1000 authorized phone numbers for maximum 200 room owners;
8.Each Room has an Admin Password and 5 authorized Phone Numbers and 5 RFID Card;
9.Supports RFID Card to open the door;
10..Administer can add or remove authorized users by SMS Text commands;
11.2 Relay Outputs (NC/NO), Relay close time is programmable (1~300 seconds), compatible with Electronic Locks and CCTV Camera;
12.User Friendly Design, LED Screen, Alloy Shell and keypad , Easy for installation;

Specification:
Item & Reference Scope
- DC Power supply:Standard adapter: DC 12V/1.5A
- Power consumption:Standby:12V/70mA;  Working Max.: 12V/300mA
- 2G Full Frequency:
- SIM interface:Supporting 3V SIM Card
- External antenna:SMA Antenna interface, 50 Ohm
- Max.Autorized Number:1000
- Max. Room Number:200
- Max. RFID Card:1000, non-contact RFID Card(M1 S50)
- Relay Outputs:2, Rated: 5A/30VDC,5A/250VAC
- Temperature range:-10-+70 °C
- Humidity range:Relative humidity 95% (condensation free)
- Exterior dimension:273mm*130mm*50mm
- Install Dimension:252mm*113mm*33mm
- Wall-mount Dimension:252mm*113mm*33mm
- Net Weight:1000 g

Package List:
- 1 x K6 2G Wireless Intercom System
