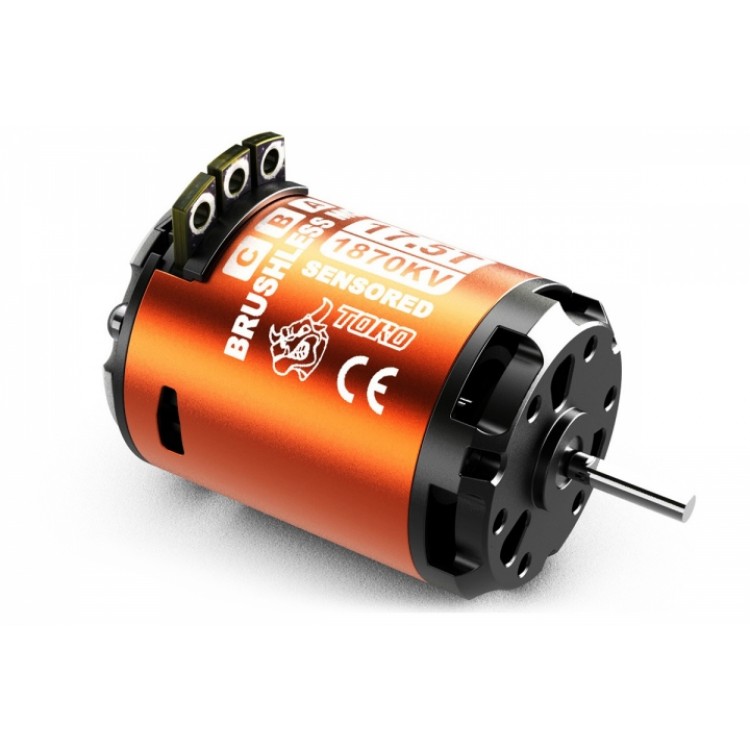

SkyRc Ares Motor 1/10 Sensor 1870KV/17.5T/2P Brushless Motor for Car
Description:
ARES series brushless motor incorporates radial fan in its front end bell, creating powerful airflow to dissipate heat. The high efficient cooling system enables cooling operating temperature during and after running compared to motor of others.
Like all SKYRC brushless motors, the ARES Brushless motor is hand-wound for maximum copper fill, and each motor is individually tested for consistency to ensure the best product is sent to customers.
Features:
- Sensor -based for Excellent Torque and Low-Speed Driveability;
- Incorporate Radial Fan in Front End Bell;
- Adjustable Timing;
- Compatible with any Sensored/ Sensorless ESC;
- CNC Machined Billet T6 Aluminum Heatsink Can;
- High Purity Copper Windings Maximizes Conductivity;
- High Power Solder Tabs;
- Removable/Replaceable Rotor;
- Powerful Sintered Neodymium Magnet ;
- Precision Engineered for Maximum Energy Conversion;
Specifications:
| Item Name | Ares 1870KV/17.5T/2P BL Motor for 1/10 Car | ||
| Sensored /Sensorless | sensored | No loading @7.2V Current | 2A |
| Turns | 17.5T | Max current | 17A |
| KV value | 1870KV | Resistance (Ω) | 0.0513Ω |
| Poles | 2P | Battery range | 2S |
| Diameter | 35.9mm | Operation Temperature | / |
| Motor length | 51.5mm | Max Temperature | 180° |
| Extend shaft diameter | 3.17mm | Suitable car scale | 1/10 |
| Length of extend shaft | 13.6mm | Suitable ESC | 60A |
| Weight | 163g | Connector Type | / |
