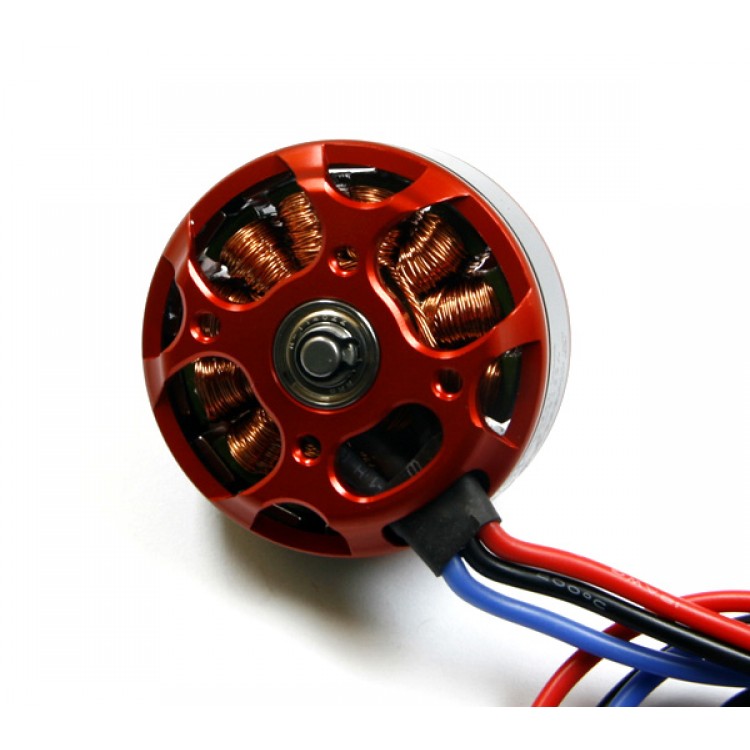

SUNNYSKY V3508 KV580 580KV Brushless Motor for Multi-rotor Quadcopter Hexacopter Aircraft DJI15x5 1447 1555 prop
Description:
- 28 poles. High torque. High efficiency. Specifically designed for Multi Rotor.It also can be used for Remote control aircrafts
Specification:
- Model:V3508 580KV
- KV: 580RPM/V
- Weight: 107g
- Diameter: 42mm
- Diameter of Shaft: 3mm
- Motor silicone wire:600mm
| Model |
Propeller (inch) |
Voltage (V) |
Throttle |
Load-Currency (A) |
Pull (g) |
Load (RPM/Min) |
Power (W) |
Efficiency/w |
Temperature (in full throttle load 10min. （℃） |
| V3508KV380 | APC12x3.8 | 18.5 | 50% | 1.4 | 410 | 3480 | 25.9 | 15.83011583 | 48 |
| 65% | 2.5 | 580 | 4100 | 46.25 | 12.54054054 | ||||
| 75% | 4.8 | 860 | 4877 | 88.8 | 9.684684685 | ||||
| 85% | 6.1 | 990 | 5215 | 112.85 | 8.772707133 | ||||
| 100% | 8.1 | 1190 | 5615 | 149.85 | 7.941274608 | ||||
| APC14x4.7 | 50% | 2.4 | 610 | 3230 | 44.4 | 13.73873874 | 65 | ||
| 65% | 4 | 810 | 3745 | 74 | 10.94594595 | ||||
| 75% | 6.6 | 1100 | 4310 | 122.1 | 9.009009009 | ||||
| 85% | 8.9 | 1290 | 4635 | 164.65 | 7.834801093 | ||||
| 100% | 11.2 | 1460 | 4937 | 207.2 | 7.046332046 | ||||
| DJI15x5 | 50% | 2.2 | 600 | 3274 | 40.7 | 14.74201474 | 55 | ||
| 65% | 4 | 870 | 3960 | 74 | 11.75675676 | ||||
| 75% | 6.3 | 1150 | 4590 | 116.55 | 9.867009867 | ||||
| 85% | 8.2 | 1330 | 4837 | 151.7 | 8.767303889 | ||||
| 100% | 9.8 | 1470 | 5210 | 181.3 | 8.108108108 | ||||
| APC10x3.8 | 22.2 | 50% | 1.2 | 380 | 4457 | 26.64 | 14.26426426 | 40 | |
| 65% | 2.2 | 550 | 5331 | 48.84 | 11.26126126 | ||||
| 75% | 3.7 | 740 | 6131 | 82.14 | 9.009009009 | ||||
| 85% | 5.1 | 900 | 6762 | 113.22 | 7.949125596 | ||||
| 100% | 6.5 | 1050 | 7245 | 144.3 |
