| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $39.19 | $38.39 | $37.19 | $35.59 | Contact US |
SimpleFOC Shield V2.0.4 BLDC Motor Driver Board Compatible with Ar-duino UNO & for Gimbal Motors
$29.43
SimpleFOC Shield V1.3.3 Brushless DC Motor Driver Board for Low-power FOC Applications up to 5Amps
$24.18
FLYCOLOR Raptor 5th Generation G071 60A 3-6S 4-in-1 ESC 128K Drone ESC Suitable for FPV Drones
$76.28

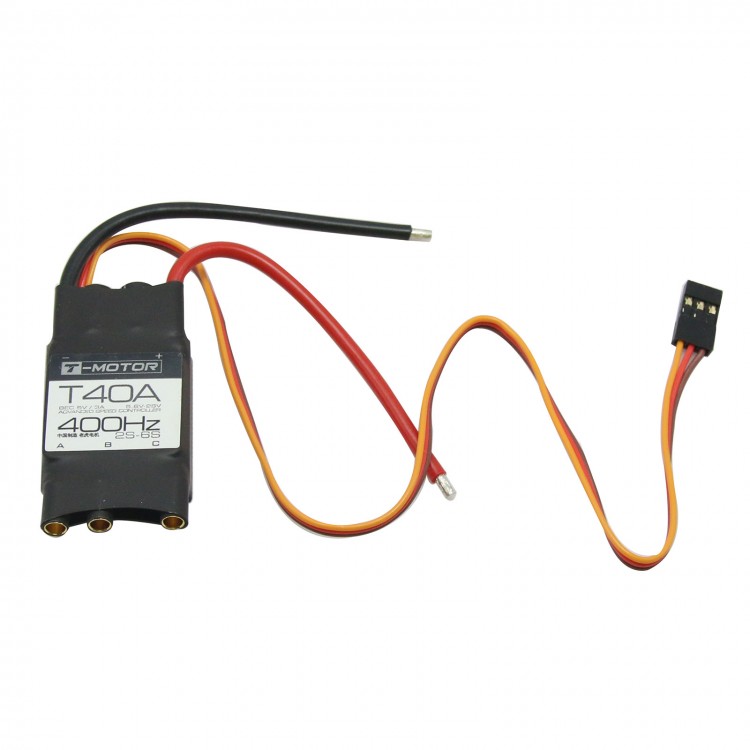

Tiger T-Motor 40A ESC Speed Controller 400HZ 6S ESC Compatible Quadcopter/Hexacopter/Octocopter
ESC40A
- Output: Continuous 40A, Burst 60A up to 10 Secs.
- Input Voltage: 2-6 cells lithium battery or 5-18 cells NiCd/NIMh battery.
- BEC: 3A / 5V (Switch mode).
- Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM. (BLM: BrushLess Motor)
- Size: 55mm (L) * 28mm (W) * 12mm (H).
- Weight: 35g.
Features:
- 1.Extreme low output resistance, super current endurance.
- 2.Multiple protection features: Low-voltage cut-off protection / over-heat protection / throttle signal loss protection.
- 3.3 start modes: Normal / Soft / Super-Soft, compatible with fixed-wing aircrafts and helicopters.
- 4.Throttle range can be configured and is fully compatible with all transmitters currently available on market.
- 5.Smooth, linear and precise throttle response.
- 6.Our pocket-sized Program Card can be purchased separately for extremely easily programming the ESC at the field.
- 7.With a program card, you can activate the music playing function of the ESC, and totally there are 15 songs can be selected
