| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $40.92 | $40.08 | $38.83 | $37.16 | Contact US |

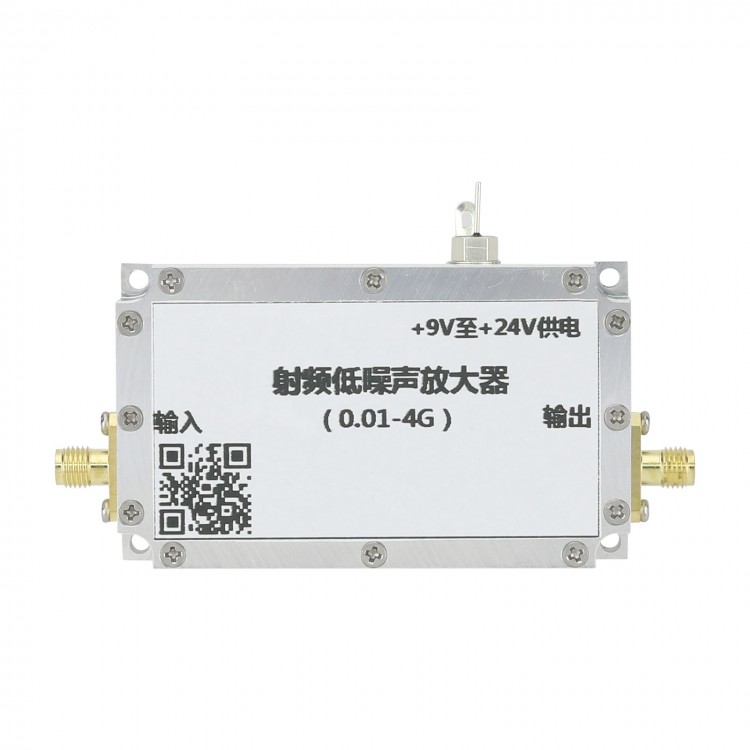

0.01-4G Low Noise Amplifier LNA RF Amplifier 40DB Gain Low Noise Receiver Amp Powered by 9-24V
Description:
Low-noise amplifiers are generally used as high-frequency or IF preamplifiers for various types of radio receivers, as well as amplification circuits for high-sensitivity electronic detection equipment. The module can be powered by +9V to +24V. The module adopts imported LNA chip featuring super low noise. Its CNC housing package makes the module have excellent electromagnetic shielding performance. It can operate in the range of 0.01-4G, with two-stage high-gain amplification, and has a high gain of 40dB. Therefore, it can be widely used in the front end of wideband receiver systems, and can be added to the input of spectrum meters to improve sensitivity.
Specifications:
- Operating voltage: +9 to +24V supply
- Operating Current: 40mA at +12V Supply (Low Power Consumption)
- Operating frequency: 0.01-4GHz
- Gain: 37dB at 1GHz (see test curve below)
- P1dB Output Power: 100mW (20dBm)
- Noise figure: 0.6dB
- Input and output interface: SMA (female connector)

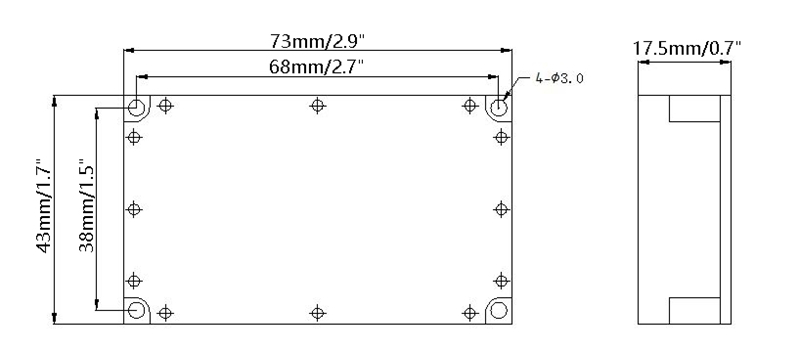

- Module size: 73 x 43 x 17.5mm/2.9 x 1.7 x 0.7" (not including the size of connectors)
- With mounting holes
Package Included:
- 1 x Module

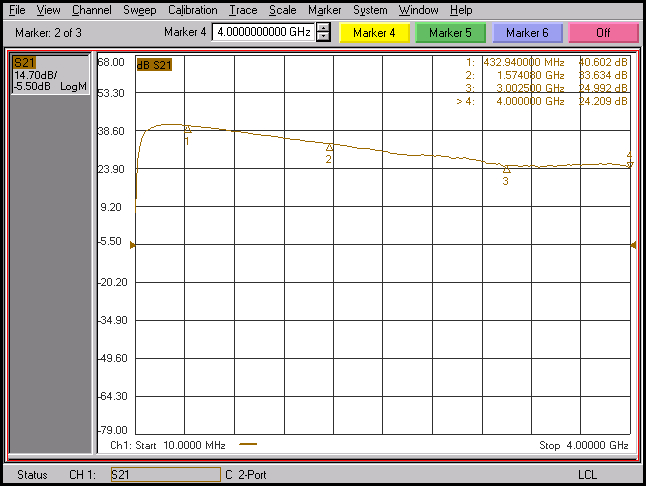

Tested Gain:
