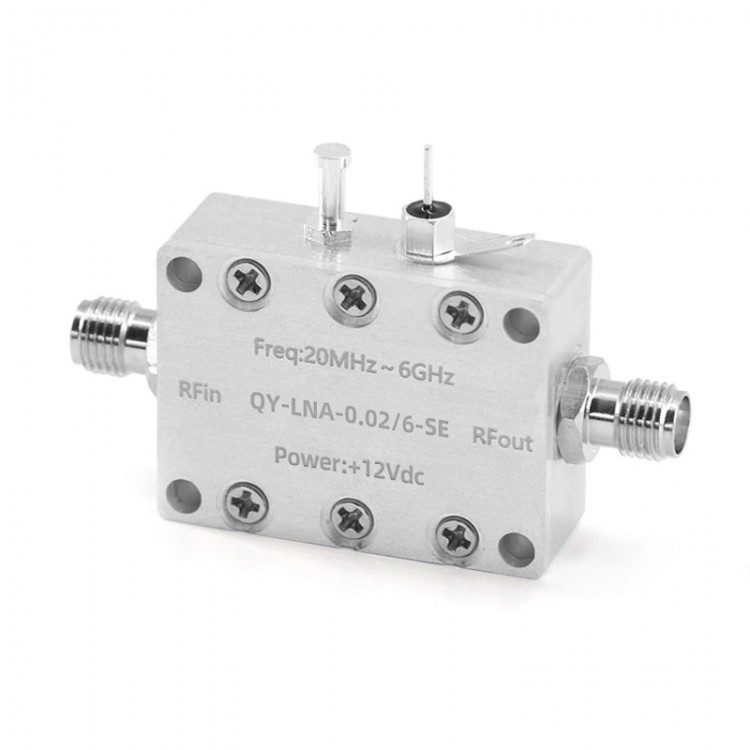

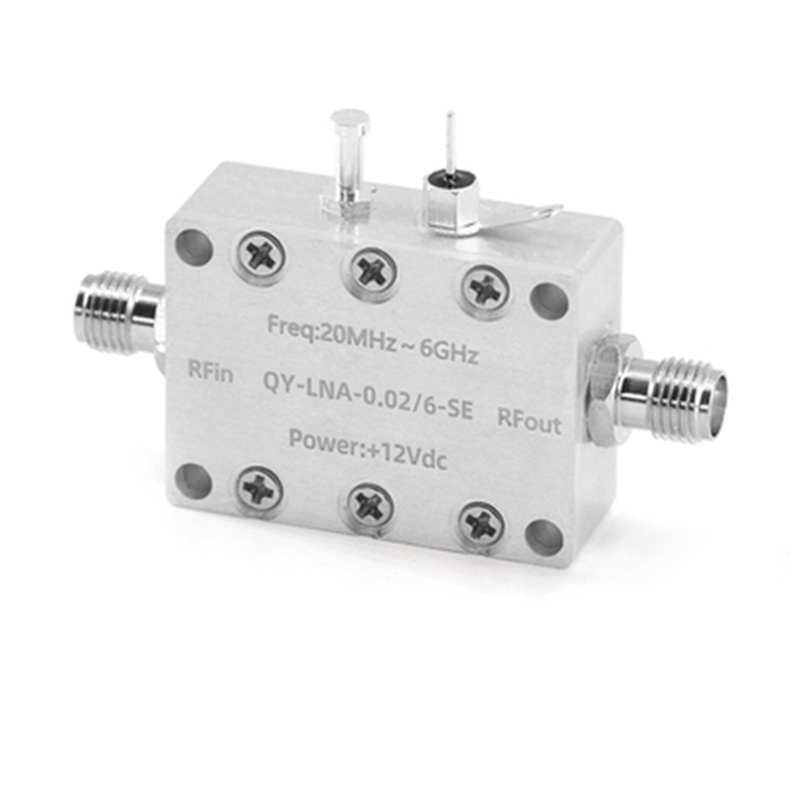

0.02 - 6GHz 12V LNA Low Noise Amplifier High Linearity and High Gain RF Preamplifier with SMA Female Connector
Features:
- Low SWR, low distortion, high isolation, corrosion resistance and high mechanical reliability.

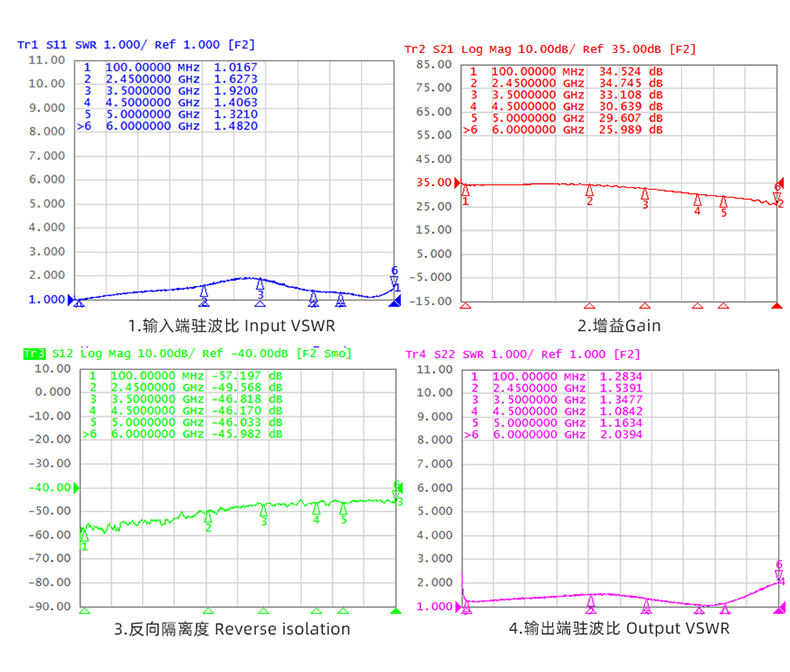

Specification:
- Frequency range: 0.02 ~ 6GHz
- Gain: 23dB min
- Input SWR: ≤2.0
- Output SWR: ≤2.2
- Noise figure: ≤2.4dB
- Output 1dB compression point: 20dBm at 2GHz/12dBm at 6GHz
- Output third-order intercept point: 30dBm
- Working current: 85mA at 5V TYP.

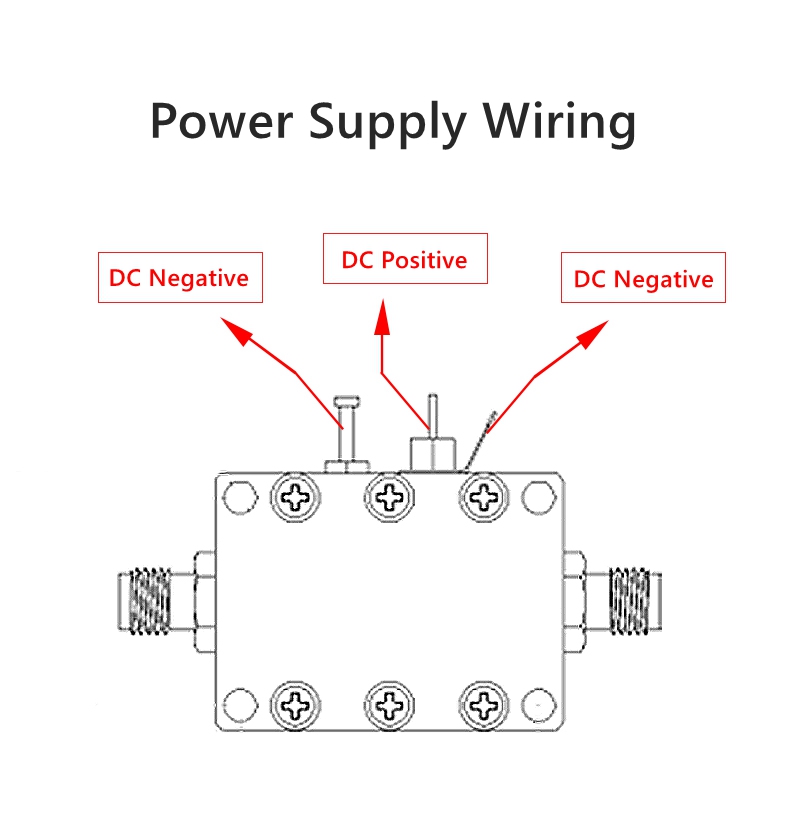

- Working voltage: 12V
- Maximum input level: 0dBm
- Connector: SMA female connector
Package Included:
- 1 x Low Noise Amplifier
