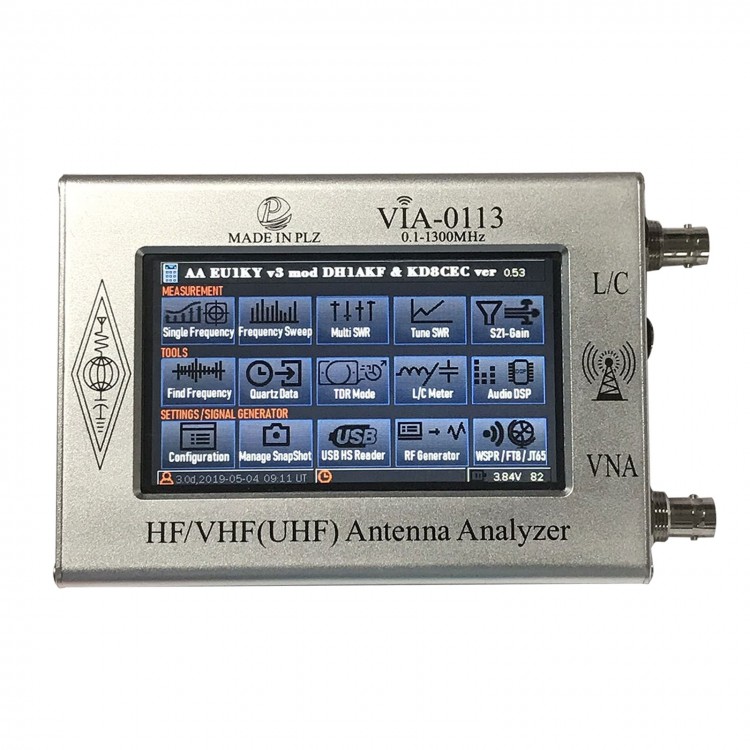

0.1-1300MHz HF VHF Antenna Analyzer with 4.3" TFT Imported Capacitive Touch Screen VIA-0113 Silver
Specifications:
- Frequency range: 0.1-1300MHz
- HF, VHF frequency band
- In/impedance: 50Ω
- Measurement parameters: SWR R + Jx, Jx, Z Returnloss
- Measurement mode: single-point measurement, scanning (frequency scanning)
- SWR measurement range: -1999 to 1.0 (single point mode), 1.0 to 20.0 (scan mode)
- Display mode: digital display, curve display, Smith chart
- LCD size: 480 x 272 4.3" imported capacitive touch TFT LCD
- Touch screen type: Capacitive touch screen displays, no buttons required
- Power supply: USB or internal charging circuit and DC-DC boost (default 3.7V 2500mAh)
- Maximum charging current: 5V/1.5A
- External storage method: 4G TF card
- Product Size: 136 * 100 * 30mm (exclude the sizes of connectors)
- Weight: 650g
Warning:
- If the product parameters change, the actual test will obtain new data.
Package Included:
- 1 x Antenna Analyzer
