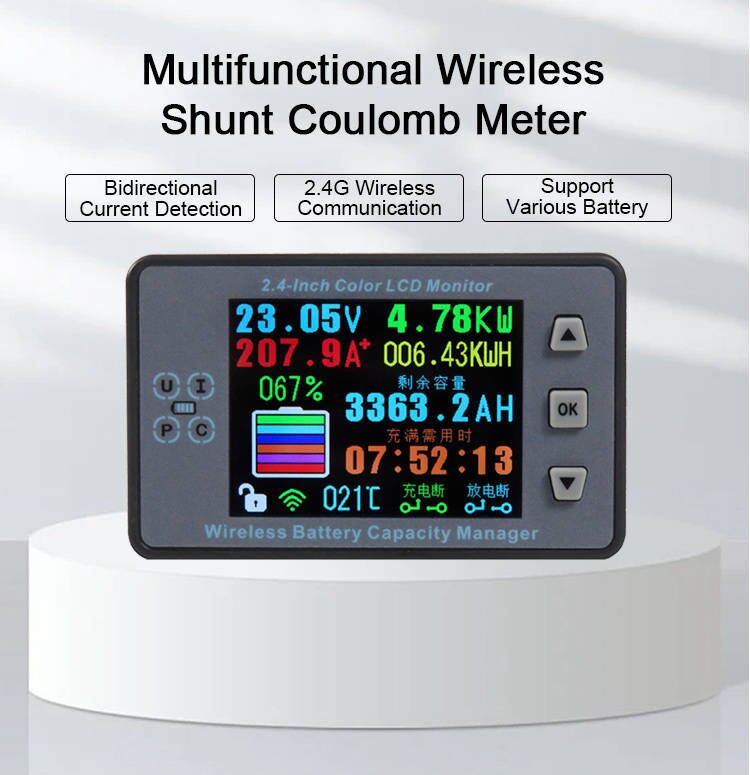

0 - 120V 100A VAC8710F Coulomb Meter 2.4-inch Color LCD Screen Multifunctional Wireless Splitter

Availability: In stock, usually dispatched in 1 business day

  • Price:$38.95
  • Price in reward points: 390 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $38.17 $37.39 $36.22 $34.67 Contact US
Quantity:

0 - 120V 100A VAC8710F Coulomb Meter 2.4-inch Color LCD Screen Multifunctional Wireless Splitter

Specification:

- Input voltage:

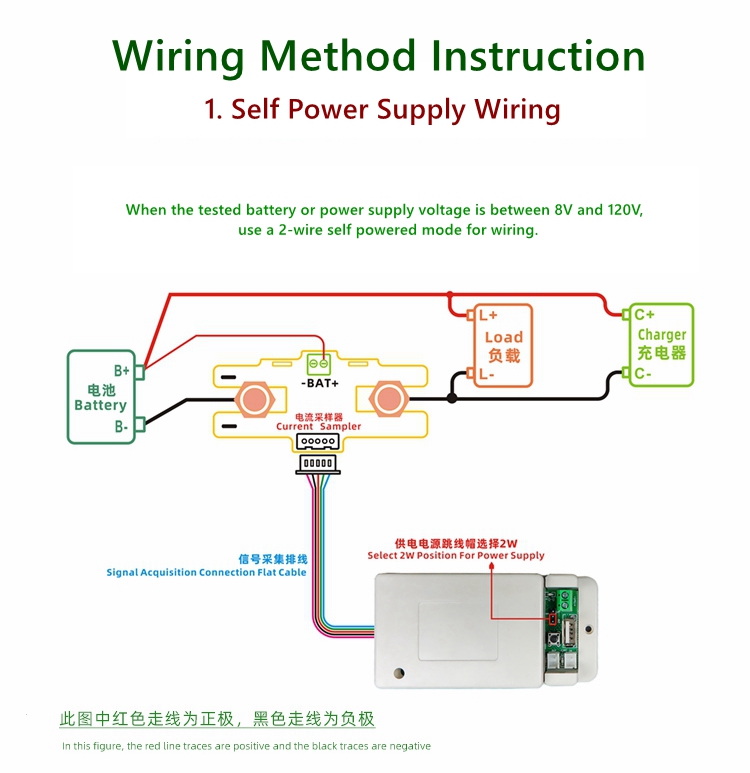

  Self power supply measuring range: 8V ~ 120V

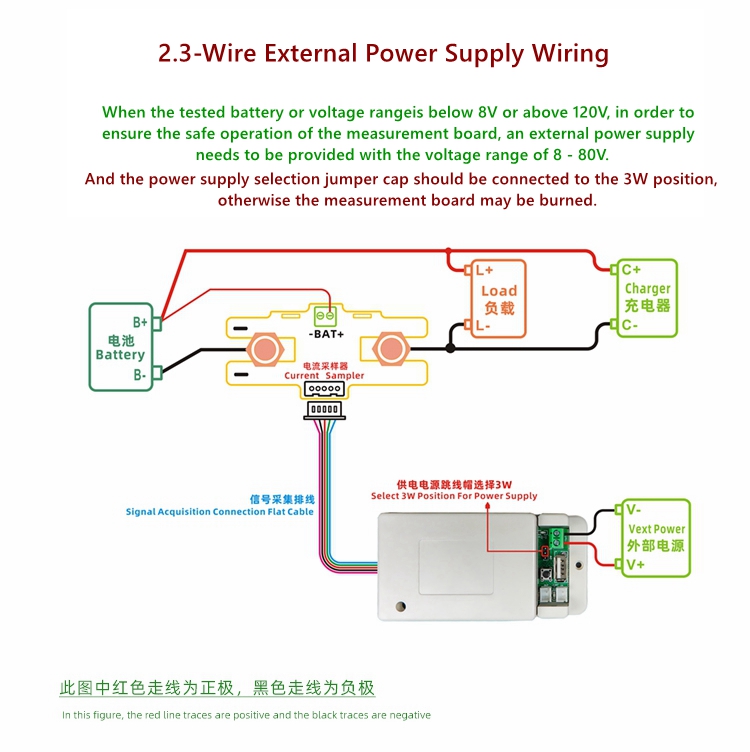

  External power supply measuring range: 0 ~ 120V
- Input current measuring range: 0.02 - 100A
- External power supply: 8 - 100V

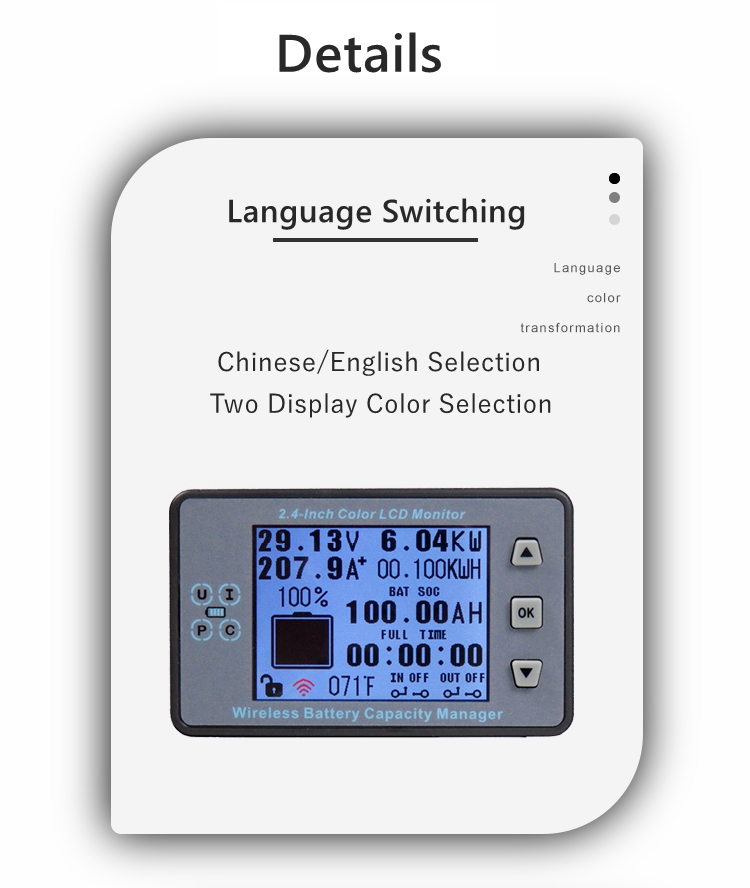

- Display language: Chinese/English
- Communication channel: 0 - 40

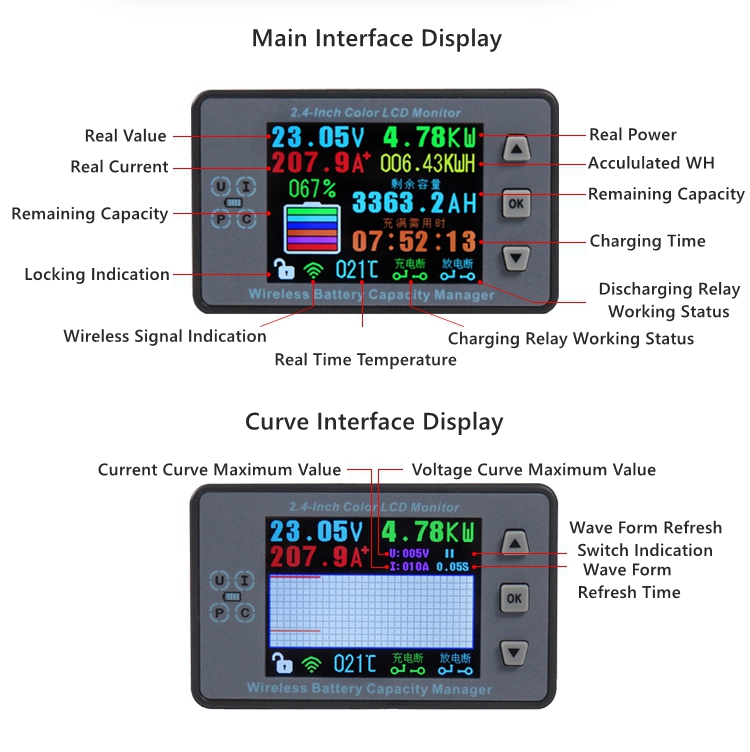

- Display method: 2.4-inch color LCD screen

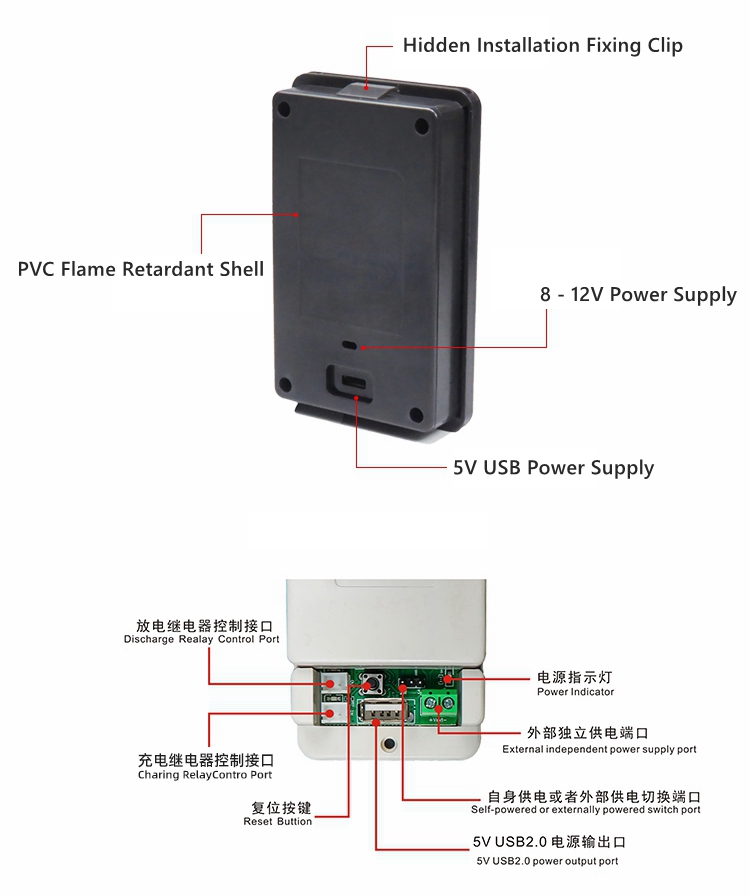

- Monitor power supply:
  USB power supply: 5V
  Independent power supply: 8 - 12V
- Measuring range:
  Capacity: 0.000AH ~ 99999.9AH
  Energy: 000.00KWH ~ 5999.9KWH
  Time: 0 ~ 100hours
  Power: 000.0 ~ 999KW
  Temperature: 000 ~ 150℃
- Precision:
  Voltage:±(1%+2) digits
  Current:±(0.5%+2) digits
  Temperature:±2℃
- Measuring speed rate: 20 times/second
- Relay delay time: (0 - 100) S
- Serial port communication baud rate: 9600Bps

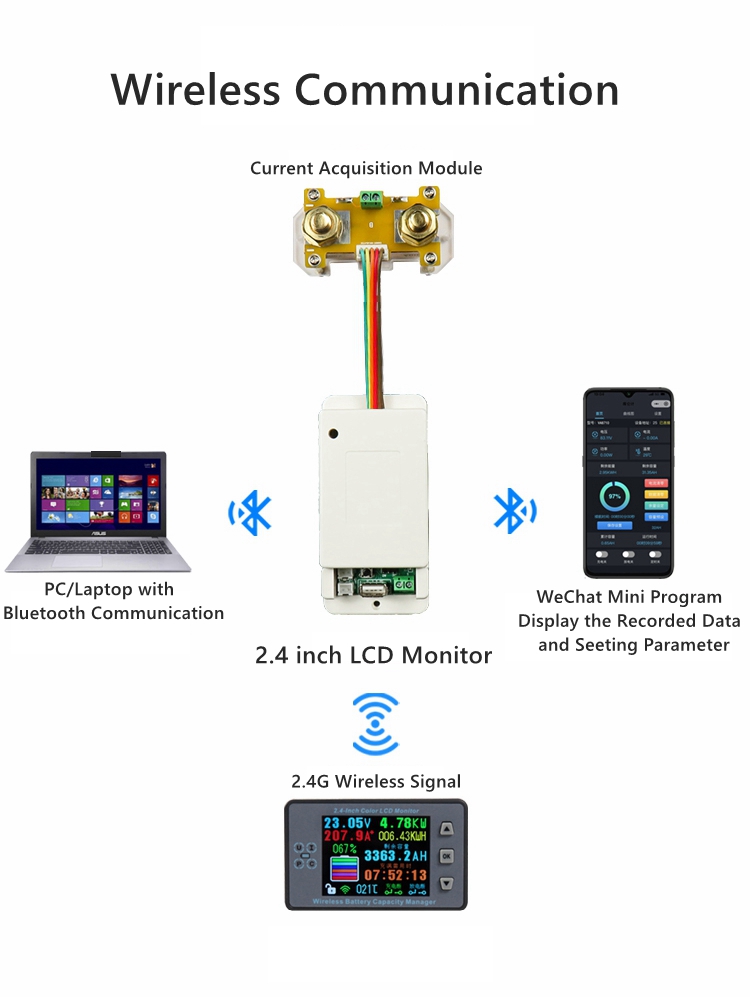

- Wireless communication distance: 10m in open field (Bluetooth Version)
- Protection type and range:
  OVP: 0.1 ~ 500V
  LVP: 0.1 ~ 500V
  OCP: 0.1 ~ 500A
  NCP: 0.1 ~ 500A
  OTP: 0 ~ 100℃
  LTP: 0 ~ 100℃

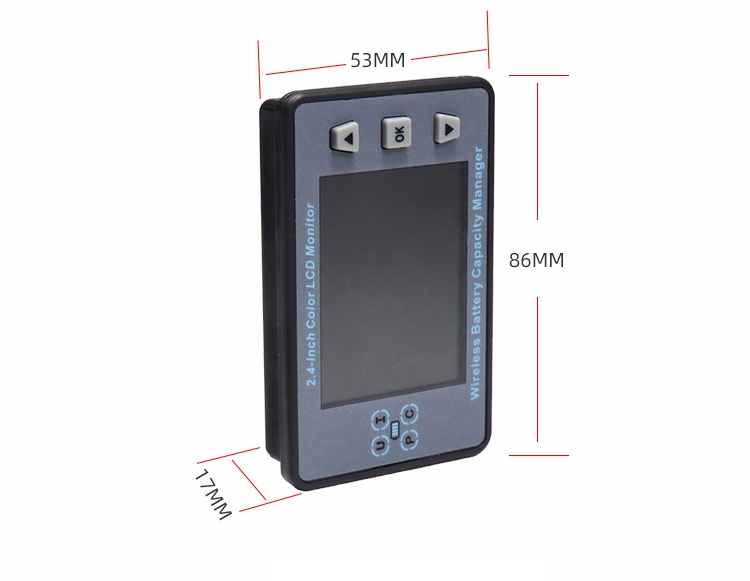

- Display board size: 80 x 48 x 17mm
- Measuring board size: 114 x 54 x 28mm

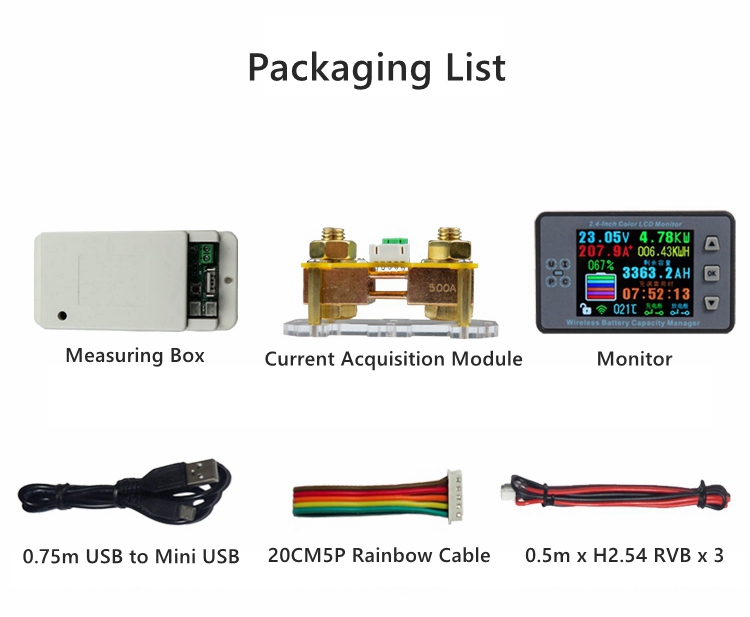

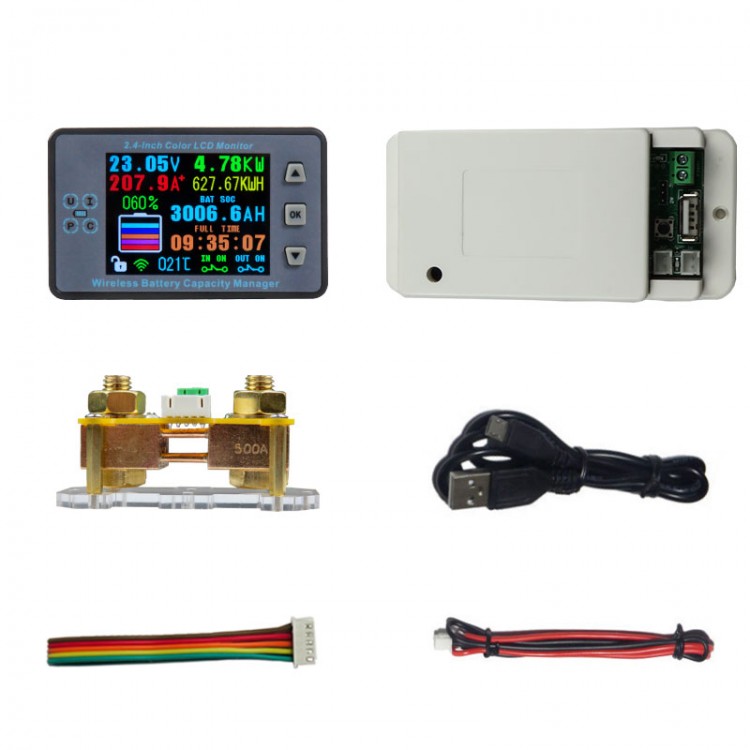

Package Included:
- 1 x Measuring Box

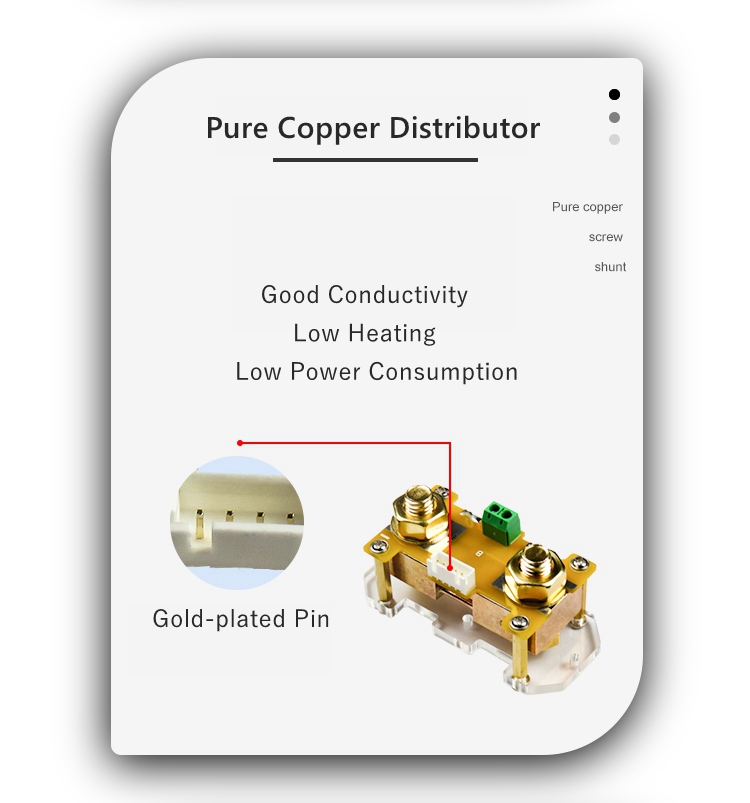

- 1 x Current Acquisition Module
- 1 x Monitor
- 1 x 0. 75m USB to Mini USB Cable
- 1 x 20CM 5P Rainbow Cable
- 3 x 0.5m XH2.54 RVB Cable

Note:
- Battery is not included.
