| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $36.26 | $35.52 | $34.41 | $32.93 | Contact US |
M6T24 24-CH Serial Battery Pack Precision Voltage Monitor with Shell + Adapter Board for Ternary Lithium/LiFePO4 Batteries
$82.14
M6T24 24-Channel Serial Battery Pack Precision Voltage Monitor 5-inch HD LCD with Shell for Ternary Lithium/LiFePO4 Batteries
$78.41
M6T24 24-CH Serial Battery Pack Precision Voltage Monitor + Adapter Board without Shell for Ternary Lithium/LiFePO4 Batteries
$55.48
0-120V 300A VAC8710F Coulomb Meter Support Bluetooth without 2.4-inch Color LCD Screen Multifunctional Wireless Splitter
Specification:
- Input voltage:
Self power supply measuring range: 8V ~ 120V
External power supply measuring range: 0 ~ 120V
- Input current measuring range: 0.02 - 300A
- External power supply: 8 - 100V
- Display language: Chinese/English
- Communication channel: 0 - 40
- Measuring range:
Capacity: 0.000AH ~ 99999.9AH
Energy: 000.00KWH ~ 5999.9KWH
Time: 0 ~ 100hours
Power: 000.0 ~ 999KW
Temperature: 000 ~ 150℃
- Precision:
Voltage:±(1%+2) digits
Current:±(0.5%+2) digits
Temperature:±2℃
- Measuring speed rate: 20 times/second
- Relay delay time: (0 - 100) S
- Serial port communication baud rate: 9600Bps
- Wireless communication distance: 10m in open field (Bluetooth Version)
- Protection type and range:
OVP: 0.1 ~ 500V
LVP: 0.1 ~ 500V
OCP: 0.1 ~ 500A
NCP: 0.1 ~ 500A
OTP: 0 ~ 100℃
LTP: 0 ~ 100℃
- Measuring board size: 114 x 54 x 28mm

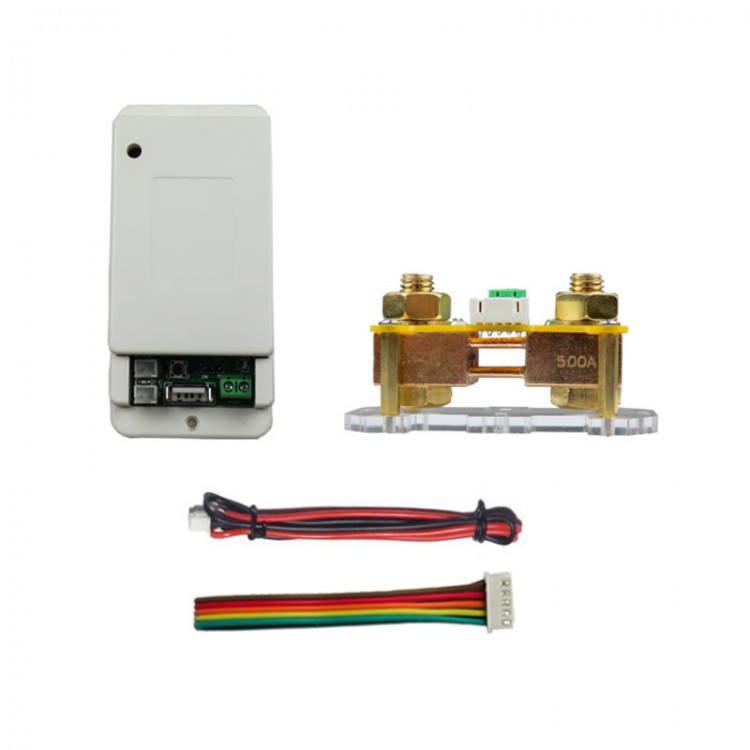

Package Included:
- 1 x Measuring Box
- 1 x Current Acquisition Module
- 1 x 0. 75m USB to Mini USB Cable
- 1 x 20CM 5P Rainbow Cable
- 3 x 0.5m XH2.54 RVB Cable
Note:
- Battery is not included.
