0 - 120V 500A VAC8710F Coulomb Meter 2.4-inch Color LCD Screen Multifunctional Wireless Splitter
Specification:
- Input voltage:
Self power supply measuring range: 8V ~ 120V
External power supply measuring range: 0 ~ 120V
- Input current measuring range: 0.02 - 500A
- External power supply: 8 - 100V
- Display language: Chinese/English
- Communication channel: 0 - 40
- Display method: 2.4-inch color LCD screen
- Monitor power supply:
USB power supply: 5V
Independent power supply: 8 - 12V
- Measuring range:
Capacity: 0.000AH ~ 99999.9AH
Energy: 000.00KWH ~ 5999.9KWH
Time: 0 ~ 100hours
Power: 000.0 ~ 999KW
Temperature: 000 ~ 150℃
- Precision:
Voltage:±(1%+2) digits
Current:±(0.5%+2) digits
Temperature:±2℃
- Measuring speed rate: 20 times/second
- Relay delay time: (0 - 100) S
- Serial port communication baud rate: 9600Bps
- Wireless communication distance: 10m in open field (Bluetooth Version)
- Protection type and range:
OVP: 0.1 ~ 500V
LVP: 0.1 ~ 500V
OCP: 0.1 ~ 500A
NCP: 0.1 ~ 500A
OTP: 0 ~ 100℃
LTP: 0 ~ 100℃
- Display board size: 80 x 48 x 17mm
- Measuring board size: 114 x 54 x 28mm

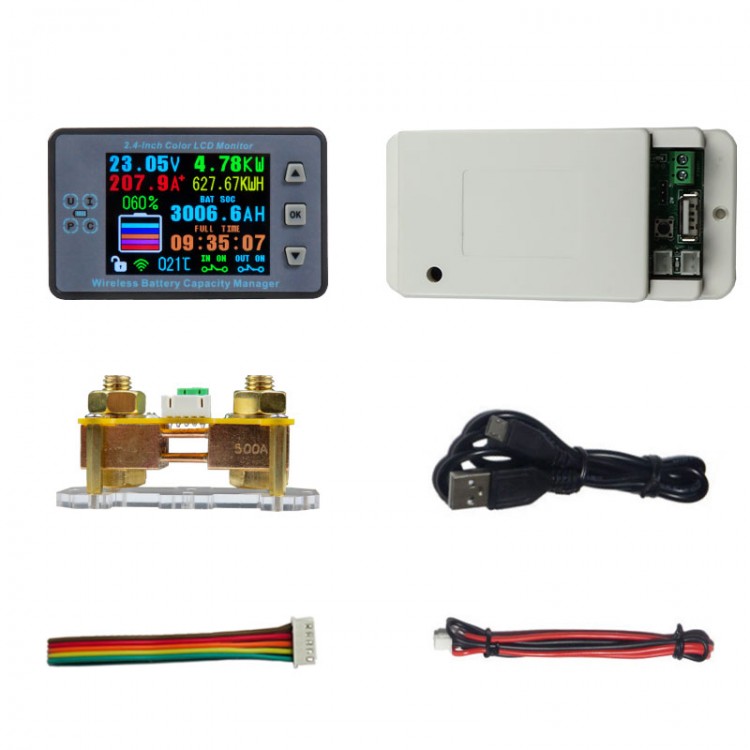

Package Included:
- 1 x Measuring Box
- 1 x Current Acquisition Module
- 1 x Monitor
- 1 x 0. 75m USB to Mini USB Cable
- 1 x 20CM 5P Rainbow Cable
- 3 x 0.5m XH2.54 RVB Cable
Note:
- Battery is not included.
