Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $248.53 | $243.46 | $235.85 | $225.70 | Contact US |

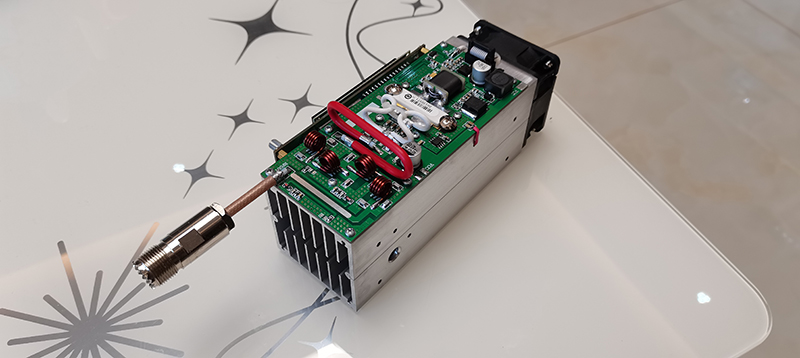

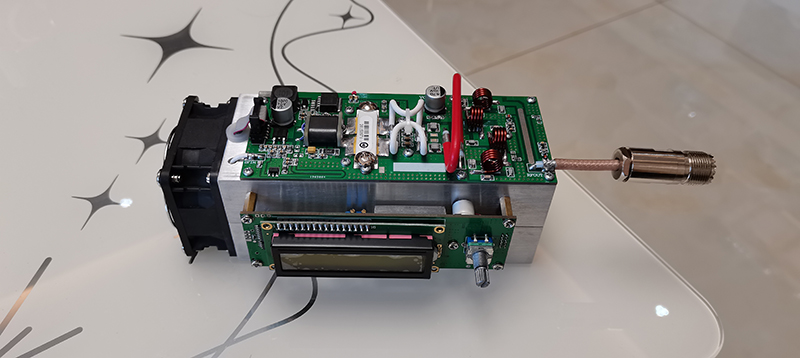

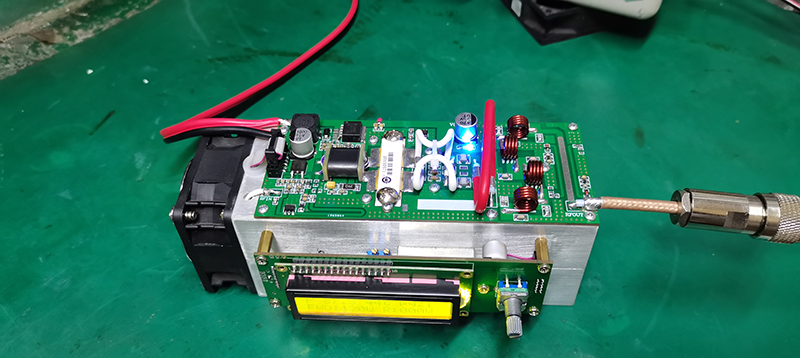

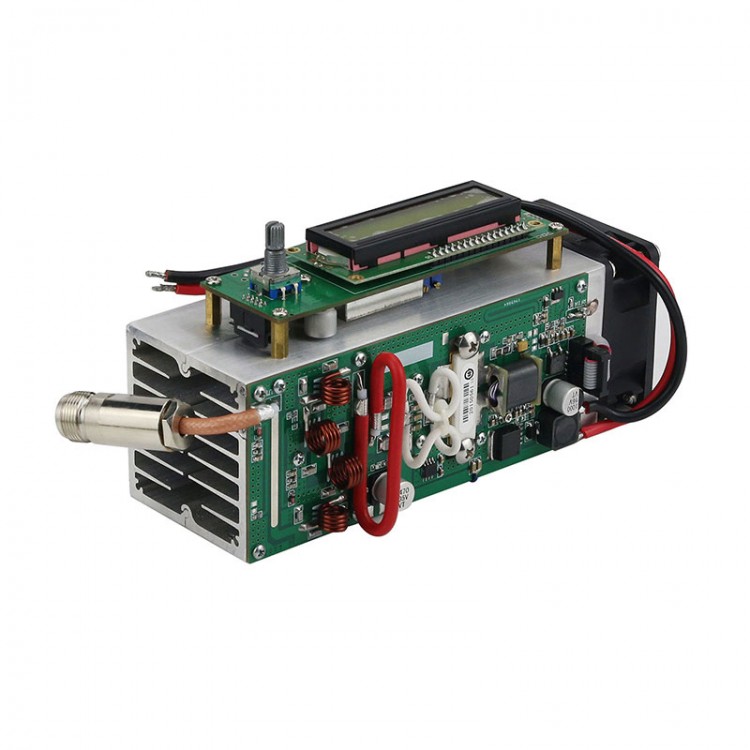

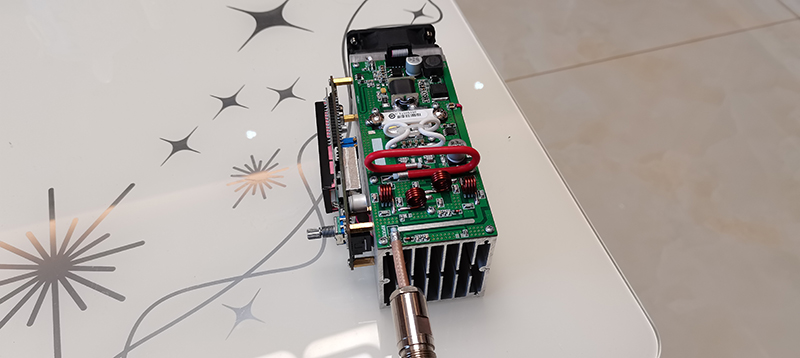

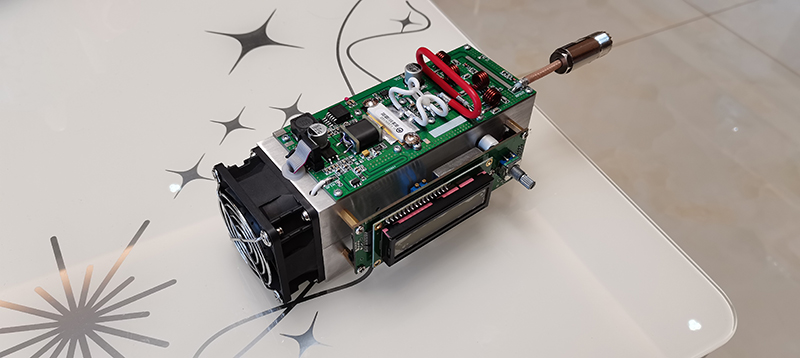

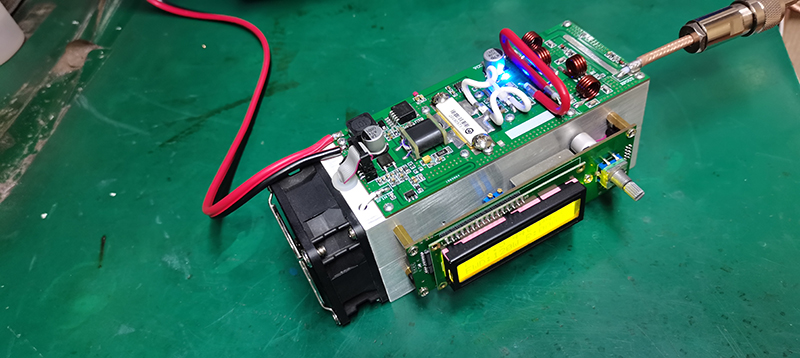

0-120W FM Transmitter 87.5-108MHz FM Radio Transmitter Full Protection Design Supports SD Card MP3
Specifications:
- Input Voltage: 20V DC
- Input Current: Less than 15A
- Frequency: 87.5-108MHz
- Frequency step value: 100KHz
- Modulation method: FM, peak deviation ±75KHz
- Frequency stability: < ±100Hz
- Frequency stabilization method: PLL phase-locked loop frequency synthesis

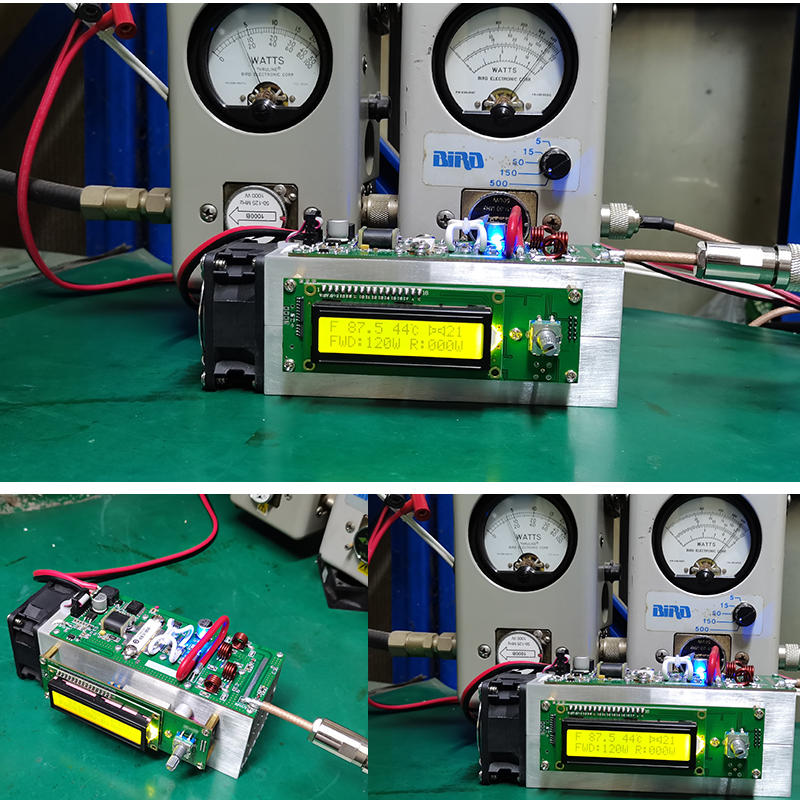

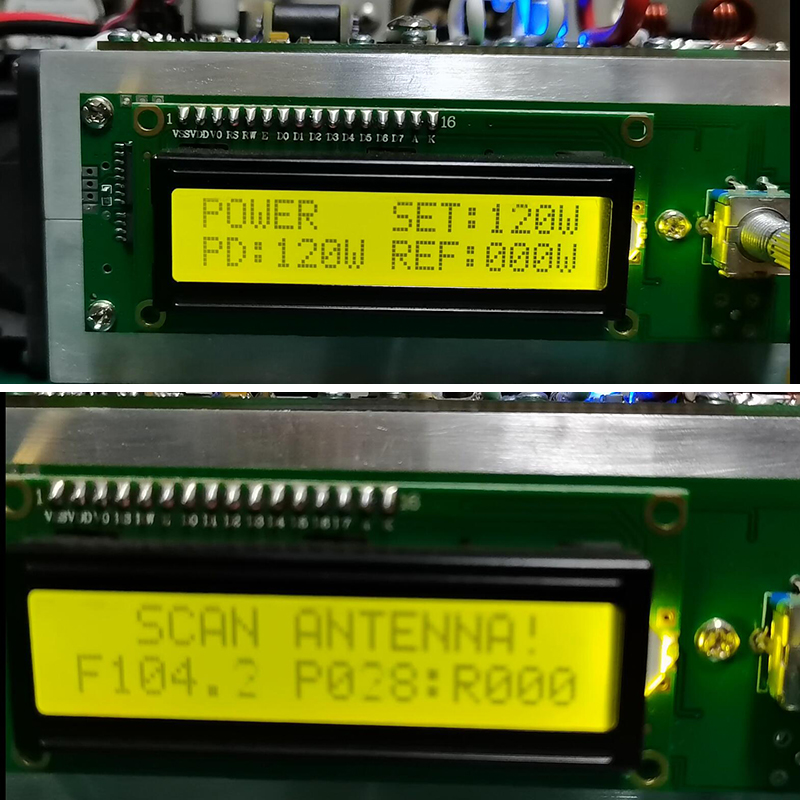

- RF output power: 0-120W watts (AGC power automatic balance)
- Power calibration accuracy: +/- 5%
- Standing wave ratio protection: up to 2.0
- Temperature protection: -20°C to 74°C
- Harmonic suppression: <-65dBc
- RF output impedance: 50Ω
- RF output connector: L16 N-type female
- Audio input: 1. SD card; 2. Audio input 3.5MM female socket
- Pre-emphasis: 50us
- Stereo separation: -55dB
- Audio frequency response: 80-15000Hz
- Audio distortion: <0.5%
- Power supply voltage and current: 20V 10A (not included)
Package Included:
- 1 x FM Transmitter
Note:
- Power supply is not included.
- When using the transmitter, please make sure that the transmitting
frequency of the transmitter is the same as that of the transmitting
antenna, otherwise the VSWR is too large and the transmitting tube may
be damaged.

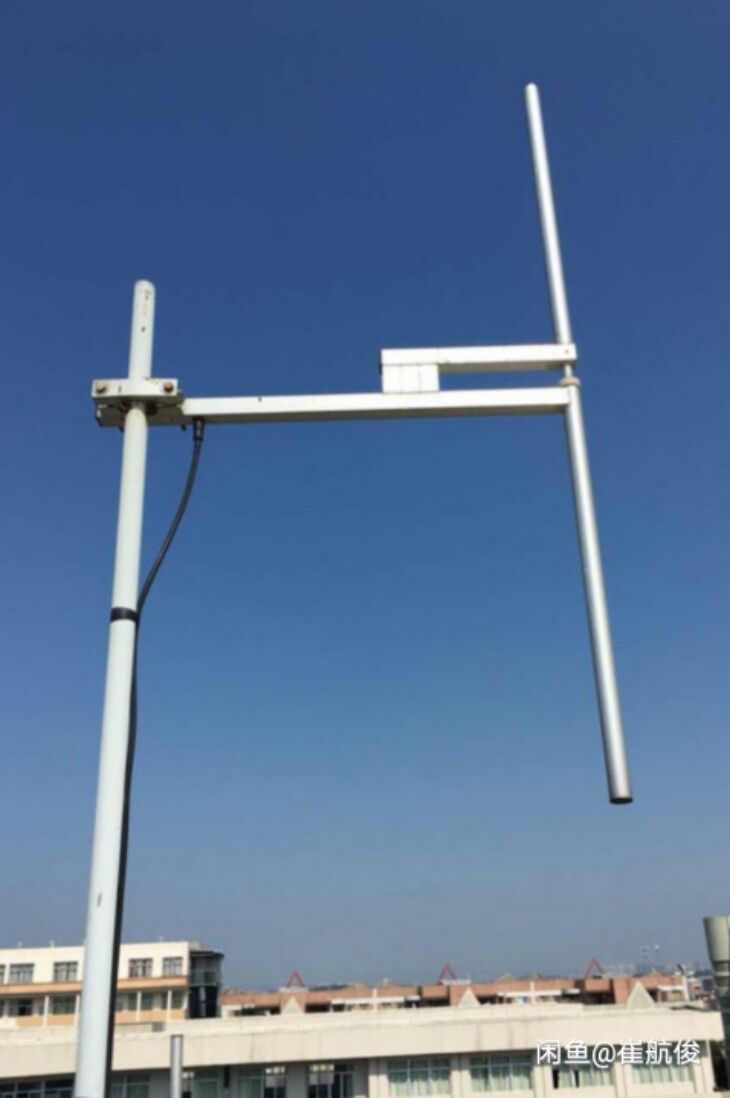

Recommend Antenna (not included):
Dipole FM transmitting antenna
