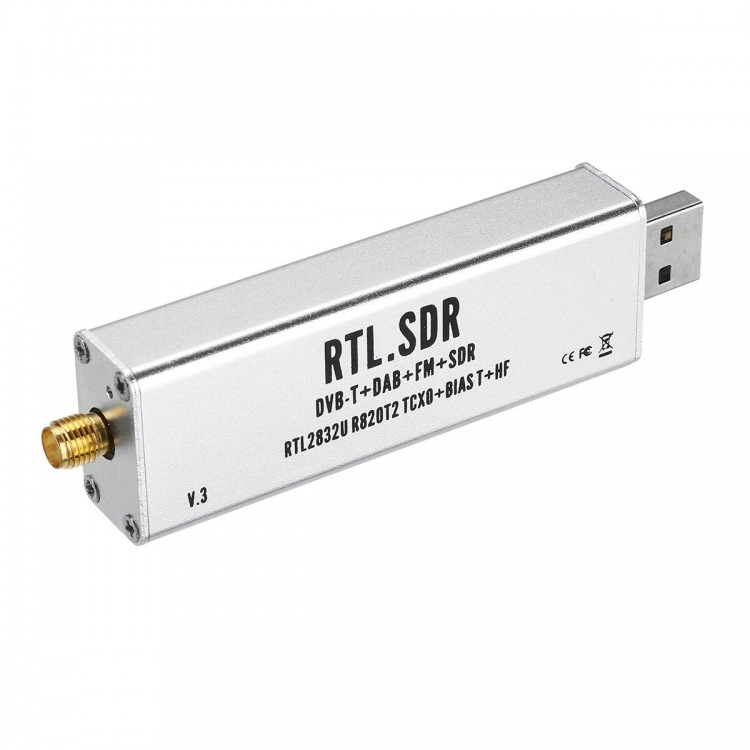

0.1MHz-1.7GHz TCXO Stable Full Band For RTL SDR Receiver Without Antenna Version Aviation Band ADSB
Optional Versions:
- Version 1: SDR Receiver Without Antenna
- Version 2: SDR Receiver Full Kit With Antenna
Functions Introduction:
Signal received by an antenna is converted into data by the receiver, and sent to a computer, mobile phone for Android and other devices through USB interface, and then processed by software on the computer, mobile phone for Android and other devices to demodulate the signal, and display spectrum, and set receiving bandwidth arbitrarily, signal recording, saving, playback and other functions. Through SDR software, it can receive electromagnetic waves in the range of 100KHz-1.7GHz (0.1MHz-1.7GHz) to support AM, FM (NFM, WFM), CW, DSB, LSB, and USB demodulation. It can be used to listen to short-wave SSB communications, FM radio, walkie-talkie calls, aviation bands, meteor monitoring ADS-B decoding radar, AIS signal receiving, etc.
Analog sub-tone and digital sub-tone can be cracked through software.
You can set up automatic search and scan.
You can use software to crack the ID of commonly used digital walkie-talkies and demodulate voice signal.
Technological Features:
- This receiver has a built-in 1 ppm TCXO, making the frequency more stable and accurate. - Almost zero temperature drift (initial deviation of 2 ppm, temperature drift of 1 ppm) improves internal chip heat dissipation, making the work more stable.
- Using the latest RTL2832U+R820T2 solution. (R820T2 tuner has slightly better sensitivity than R820T, lower noise level, and higher signal-to-noise ratio. It can work more stably at frequencies around 1.5 GHz.) Using the Q channel on the RTL2832U to increase the direct sampling reception for the frequency of 100KHz-24MHz.
- 100KHz-1.7GHz full range receiving.
- For XP Win7, Win8, Win10, MAC, Android and other systems.
Package Included:
- 1 x Set of SDR Receiver
Note: Commonly used software, driver, installation instructions, and instructions for use are provided.
