0.1MHz-7.2GHz RF Module LNA Low Noise Amplifier 22dB High Quality RF Accessory with SMA Female Connector

Availability: In stock, usually dispatched in 1 business day

  • Price:$37.52
  • Price in reward points: 375 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $36.77 $36.02 $34.89 $33.39 Contact US
Quantity:

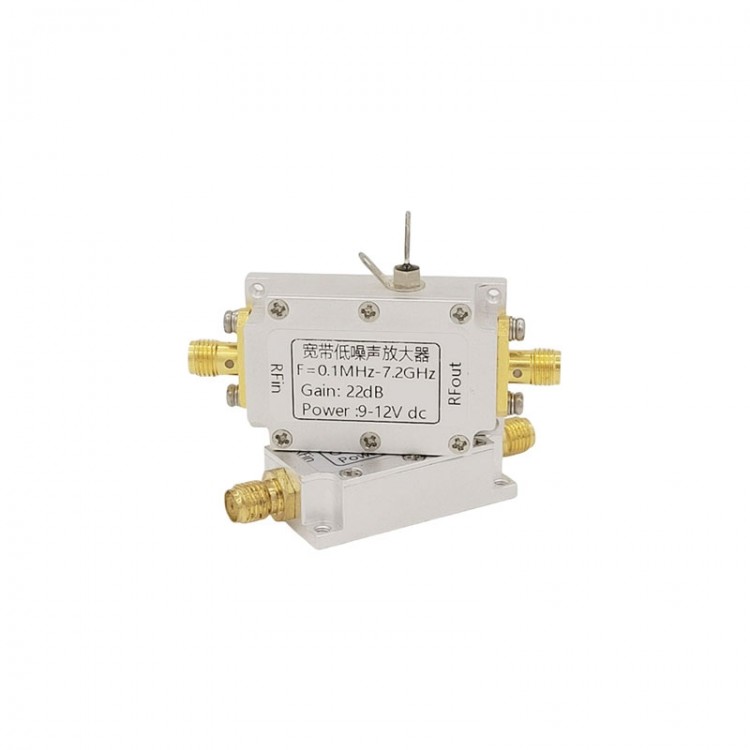

0.1MHz-7.2GHz RF Module LNA Low Noise Amplifier 22dB High Quality RF Accessory with SMA Female Connector

Specification:

- Frequency bandwidth: 0.1MHz - 7.2GHz
- Impedance: 50ohm
- Gain: 22dB
- Maximum input power: 0dBm (mW)
- Maximum output power: 13dBm (20mW)
- NF: < 2.5dB

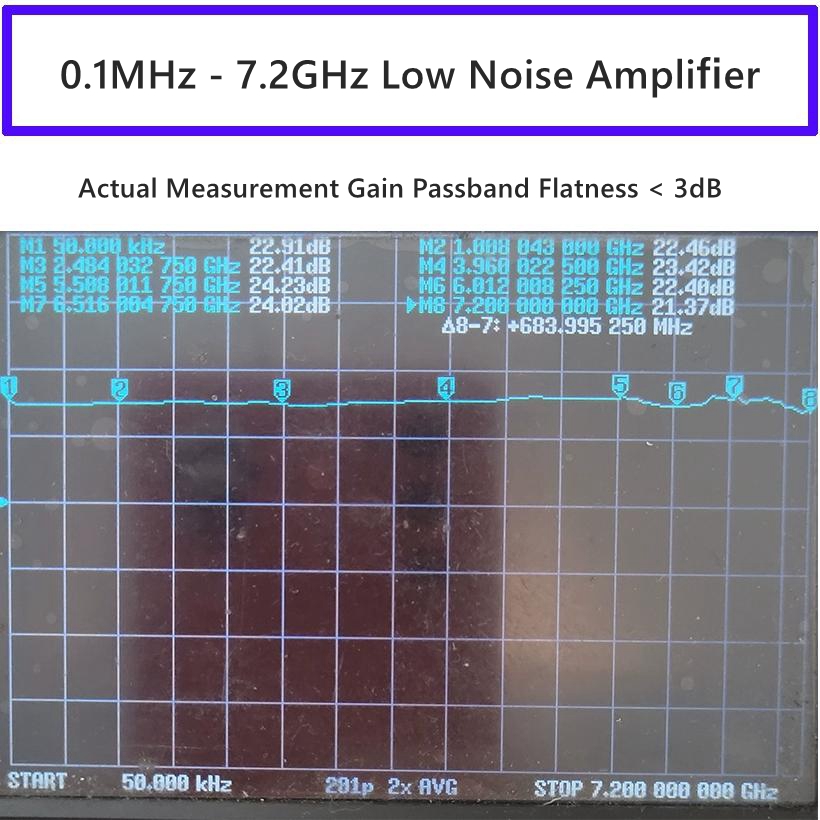

- In-band flatness: < 3dB

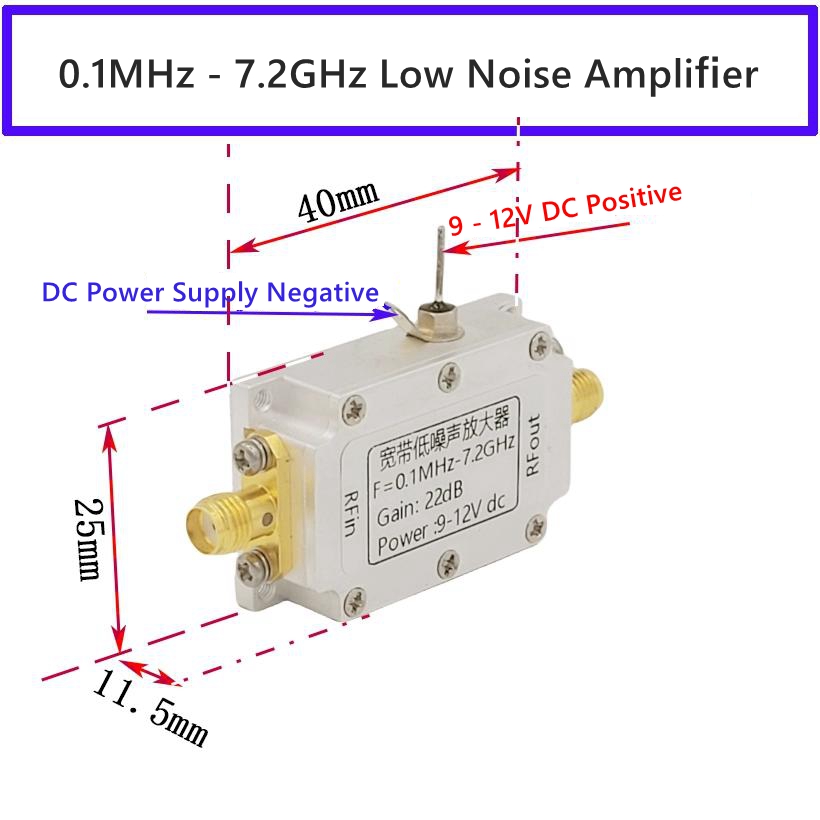

- DC power supply: 9 - 12V/130mA
- Connector type: SMA female connector

Package Included:
- 1 x LNA Module

Note:
- This module must first connect the input and output terminals, and then connect the DC power supply.
- When supplying DC power to the module, be sure to connect the DC positive and negative poles correctly. Do not reversely connect it, which may cause module damage.
