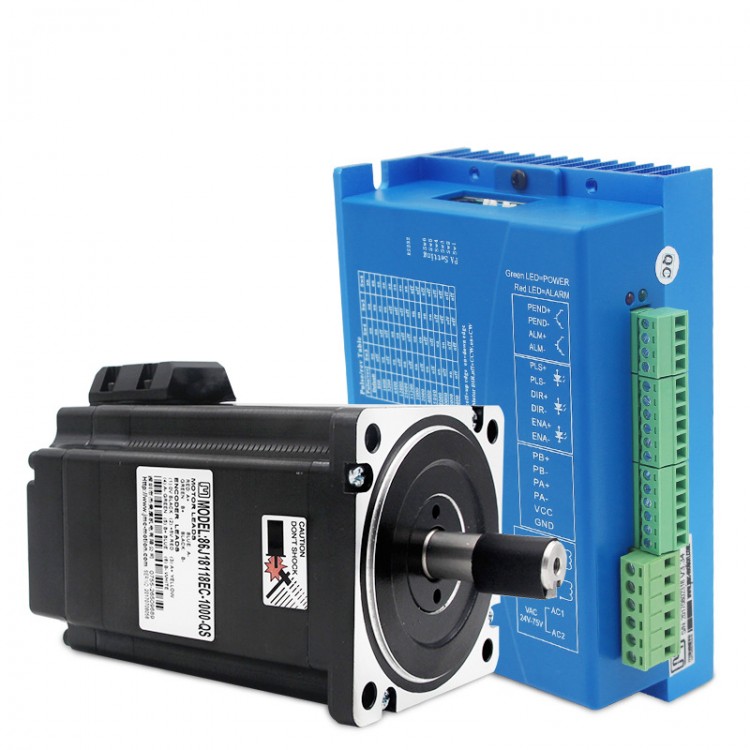

0-2000RPM 4.5NM 86 Closed Loop Stepper Motor Driver Kit with 2M Encoder Extended Cord

0-2000RPM 4.5NM 86 Closed Loop Stepper Motor Driver Kit with 2M Encoder Extended Cord

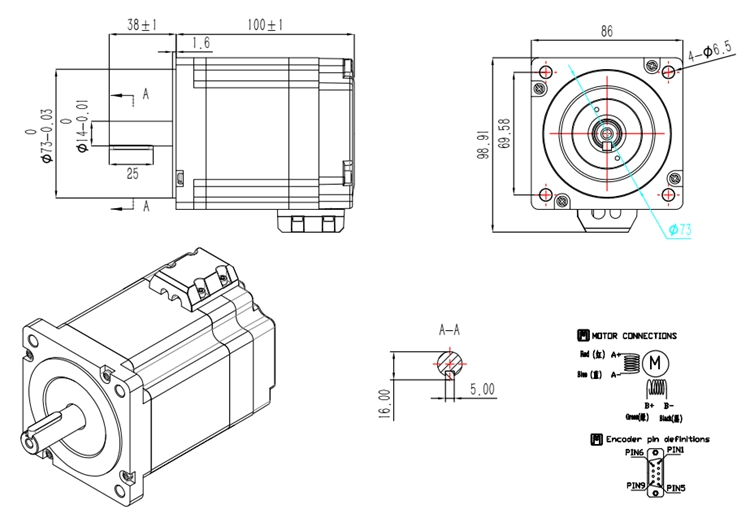

Motor Parameters:
- Item Name: 86 Two-Phase Closed Loop Stepper Motor
- Model: 86J1880EC-1000-QS
- Rated Current: 6A
- Static Torque: 4.5NM
- Shaft Size: 14x38mm
- Motor Length: 102mm
- Flat Filament Size: 5x25mm
- Working Speed: 0-2000rpm
- Encoder: 1000Hz

Driver Parameters:
- Item Name: Hybrid Stepper Servo Driver
- Model: 2HSS86H-A-5/24
- AC Voltage: AC 24-75V
- DC Voltage: DC 30V-110V
- Output Current: Maximum 8A
- Communications Rate: 57.6Kbps
- Pulse Frequency: 200 KHz
- Weight: around 0.58kg
- Control Modes: Pulse + Direction
- Pulse Width: ＞2.5μs
- Overcurrent Peak: 12A±10%
- Signal Voltage: Compatible with 5V/24V
  Multiple Protections:
- Over-Current Peak: 12A±10%
- Over-Voltage Peak: 160V DC
- Over-heat peak is settable via an extra handheld smart regulator

Using Environment:
- Working Temperature: 0℃ to 70℃
- Storage Temperature: -20℃ to 80℃
- Humidity: 40 to 90%RH
- Cooling Way: Natural cooling or forced air cooling
- Application Scene: Please avoid dust, oil mist and corrosive gases

Features:
◆ Full Closed Loop: Position encoder is installed and the vector control technology is adopted to ensure that there is no desynchronizing.
◆ Low Heating / High Efficiency: Adjust current in real time according to the actual load conditions to minimize heat generation. It is highly efficient because it outputs around 99% torque in such a compact space with the maximum energy conversion rate.
◆ Speedy Response: It is suitable for short-distance quick start and stop and other occasions. The hybrid servo system retains some of the advantages of a conventional open loop stepper system in that the position response output is synchronized almost instantaneously with the input command signal. Advanced DSP control chip makes faster frequency response possible.
◆ Smooth & Accurate: Based on the encoder space vector current control algorithm, it has excellent performance in the full speed range. Even at low speed applications, it can maintain a smooth and quiet operation.
◆ Multiple Protections: With over-current, over-voltage, and over-heat protections, our stepper motor driver kit runs well.
◆ Noise Reducer: With German process, its internal rotor can effectively address noise problem after carbon steel being oxidized and grinded.
◆ Premium Materials: Imported silicone steel rotor enables high torque and stable output performance. Winding with enameled copper wire, the motor heats up slowly and won’t deform during long-time operation. And its high-intensity blue shell ensures sturdiness and longer lifespan.
◆ LED Warnings: The different flashing times of the red light on the drive represent different alarm causes.
◆ Powerful Fan: The fan functions well for quick heat dissipation.
◆ Wide Application: It can be used together with small and medium-sized automation equipment and instruments, including screw machines, laser cutting machines, engravers, and numerical control machine tools.

Package Included:
- 1 x Closed Loop Stepper Motor
- 1 x Hybrid Step-Servo Driver
- 1 x 2M Encoder Extended Cord
