0-20mA Signal Generator Active Simulate Debugging PLC Valve Transmission Frequency DCS Control

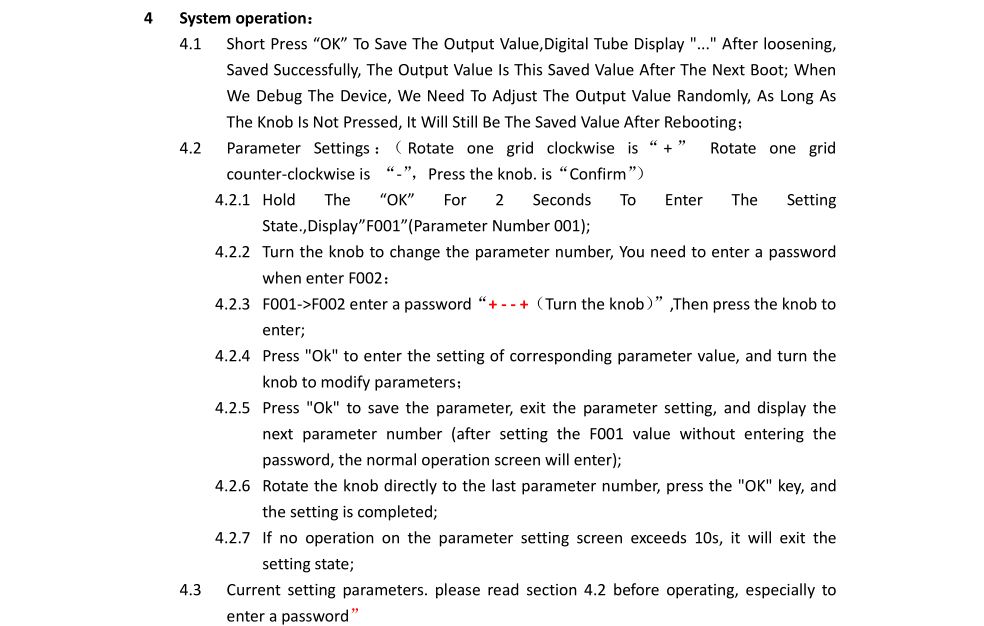

Download User Manual:
http://www.sz-qhkj.com/data/um/JS-020ISG-S-3L_UM_V201EN.pdf
Features:
- Display modes can be set: 20.00 (mA), 100.0 (%), and 50.0 (Hz)
- Default output current 0-20mA. Can be set to 4-20mA
- Coarse and fine adjustment. Can set the number of turns separately
- Minimum knob adjustment number 0.01mA: the last number plus or minus 1
- The actual error after calibration is 0.01mA, and high-precision linear output
- 0.4" 4-digit bright digital tube and clear display
- Digital encoder improve product accuracy, repeatability and reliability. Storage method at power down - Press the knob to save the output value, then turn the knob again. The last value will be retained on the next boot
- Power supply with reverse connection protection
- Output can be short-circuited
- Imported chip for stable performance in the long run
Technical Parameters:
- Output current: default 0-20mA (can be set to 4-20mA)
- Supply voltage: 15-30V
- Sampling resistance: 10-500Ω
- Output accuracy: 0.01mA
- Product size (front): 79.5 x 42mm/3.1 x 1.7"
- Product size (rear): 72.5 x 39.5mm/2.9 x 1.6"
- Installation panel/chassis opening size: 77 x 40mm/3 x 1.6"
Package Included:
- 1 x Signal Generator

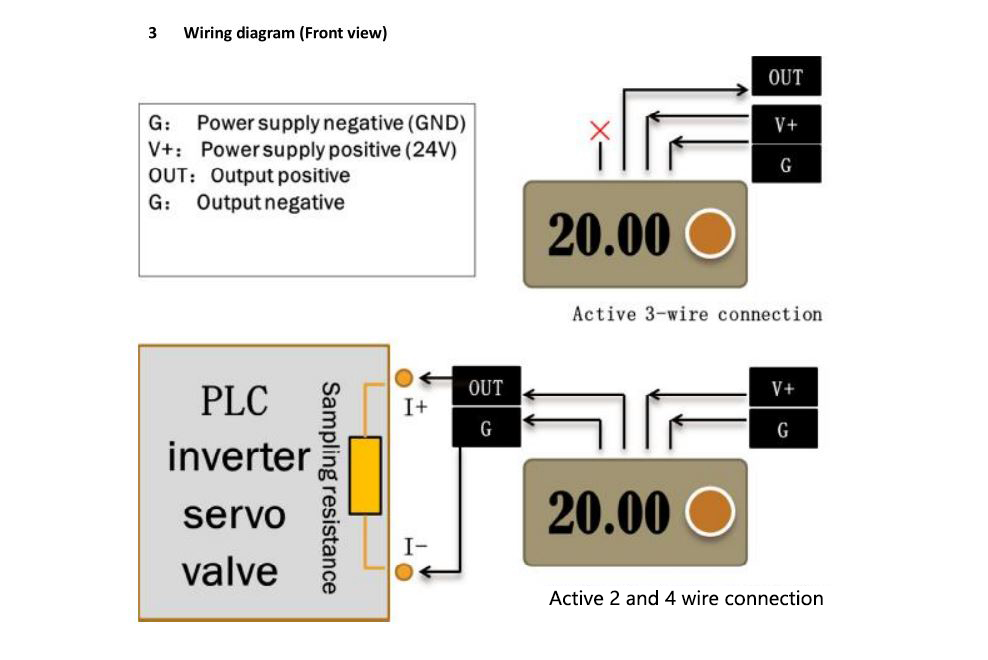

The current loop signal generator enables active connection. So, it can be connected to common PLC inverter.
