Application:

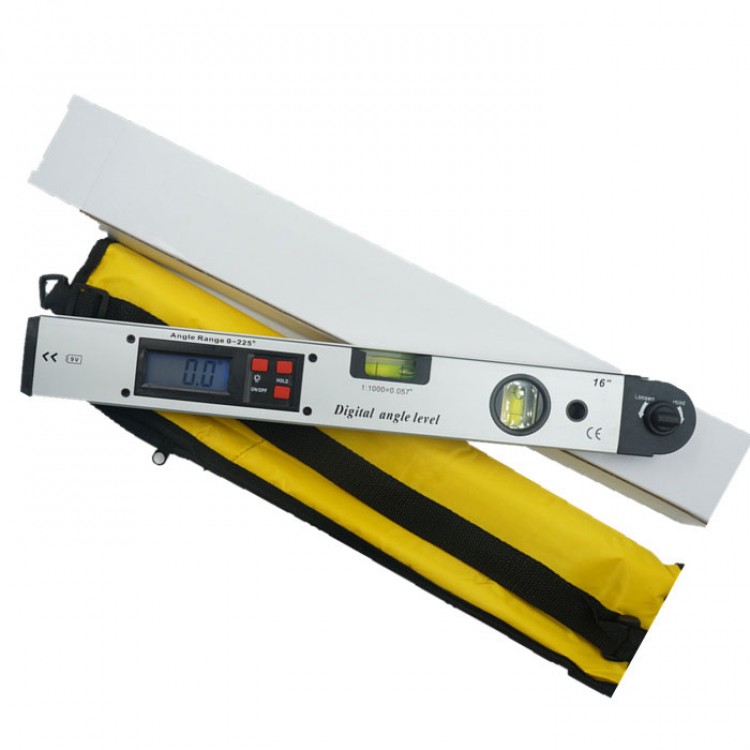

- It is a digital angle measuring device whose read is easier and exact than other scale indicated angle level. It is mainly intended for applications which involve lineation for woodworkers, measure and definition of the exact angles such as trays, sloping roofs and handrails. It also can be used as spirit level to quickly measure the horizontal and vertical angle.
Features:
- Easily readable LCD Display shows the exact angle at once.
- Automatically shut off after five minutes to prolong the batteries? life.
- Backlight design: keep its normal use on dark light.
- Data holding function: Help the use on dark light.
- Horizontal level
- Vertical level
- Mechanical lock(Lock knob): Keep the angle invariable in the process of line or measure the angle.
- HOLD button to lock angle
- Angle guide
- Low power Alarm.
- Measuring range: 0~225°.
-The value of the angle increases or decreases in the step of 0.1° as you open or close the angle.
- ON/OFF LED Lighted display
- ON/OFF Button
- 9 Volt battery (Included)
- Hole to hang the digital angle level
Specifications:
- Length: 400mm
- Increase/decrease angle: 0.1°
- Measuring range: 0~225°
- Measuring precision: ±0.5°
- Working temperature: ?10°C~+50°C
- Battery: 9V 6F22
Operating Procedure
Measure angles function
- Switch on SK99G.
- Unfold the arm of ST99G, the opening angle increases or decreases on LCD display
Caution:
- Do not move the screws and components at random.
- Please handle your angle meter with care, use even strength to rotate the Rotate Arm, and do not use too much strength.
- Don?t keep the backlight open for a long time.
- When the low power Alarm icon appears on the display, please change batteries
- Adopt the comparative method to measure the angle or set the lineation angle.
- You can fasten the Lock Button to keep the angle invariable when drawing the angle line.
- Open the backlight when the beam is dark.
Spirit level Function:
-Quickly measure the horizontal and vertical degree.
