0-24VDC 0-33A 800W Switching Power Supply Adjustable Voltage and Current Switch Mode Power Supply NES-800-24

0-24VDC 0-33A 800W Switching Power Supply Adjustable Voltage and Current Switch Mode Power Supply NES-800-24

Features:
- Using switching power supply technology. The whole machine is small in size, light in weight and high in efficiency, ensuring stable and reliable long-term full-load operation

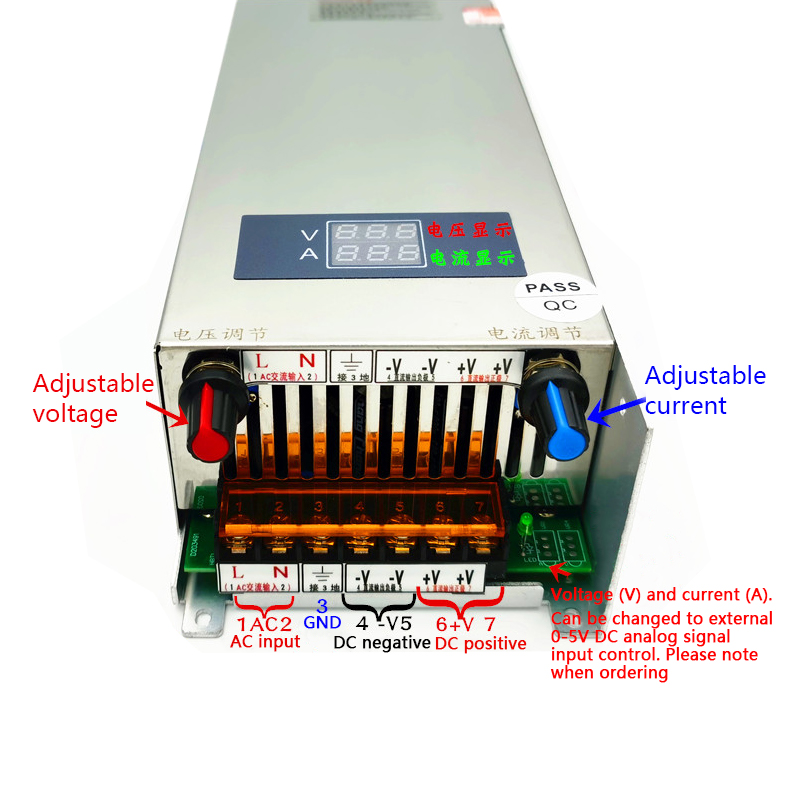

- Both the voltage regulation value and the constant current value can be continuously adjusted within the range of (0~100)% of their respective maximum values
- Digital tube displays output voltage V and current A. 3-digit display meter voltage display accuracy: 0.01V below 10V; 0.1V below 100V; 1V above 100V; current display accuracy 0.1A

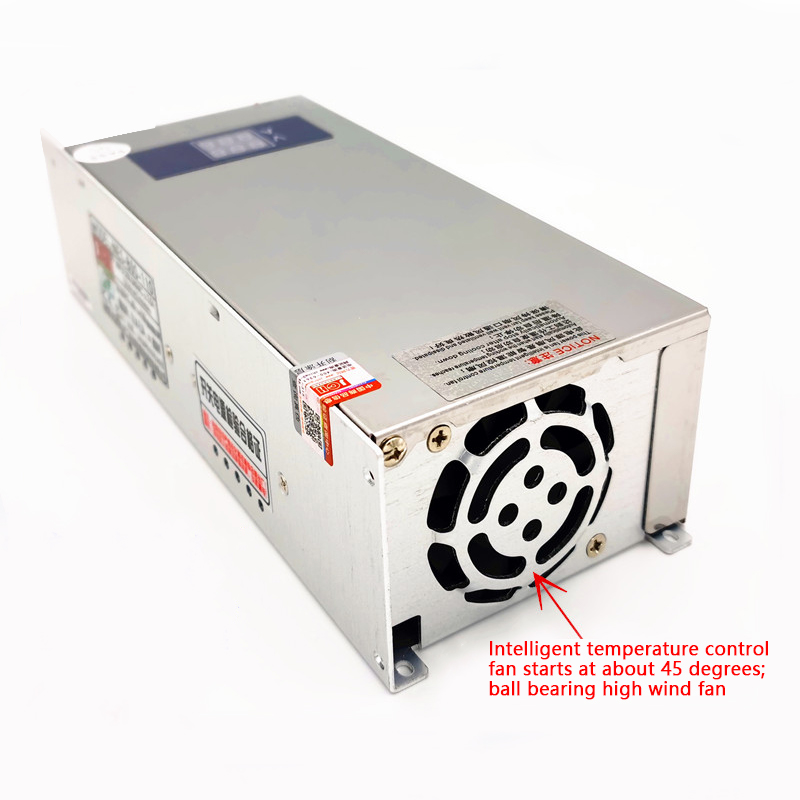

- Temperature control fan, automatic overheat protection; output over-voltage, over-current and short circuit protection; boot delay soft start to avoid output voltage overshoot when booting
- Easy to operate and convenient to use
- Widely used in power DC screen system, industrial control, communication, scientific research, and other equipment

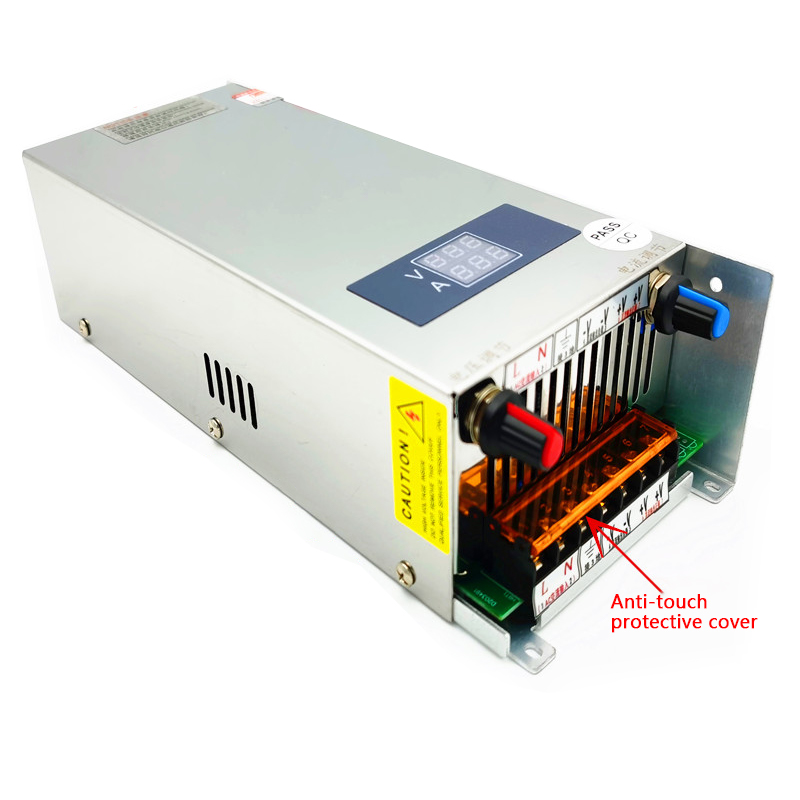

- Harsh environment-resistant industrial-grade housing material: stainless steel upper cover and thermally conductive aluminum base
- The power supply adopts new imported chip components; advanced automatic production process of patch; double-sided PCB board; pure copper foil and pure copper enameled wire transformer; new electrolytic capacitor and double ball bearing fan intelligent temperature control; excellent performance and stable industrial pole circuit structure

Specifications:
- Model: NES-800-24
- AC input voltage: AC220V (±10%) [AC110V can be customized]
- Output Voltage: 0-24VDC (adjustable to 30VDC maximum)

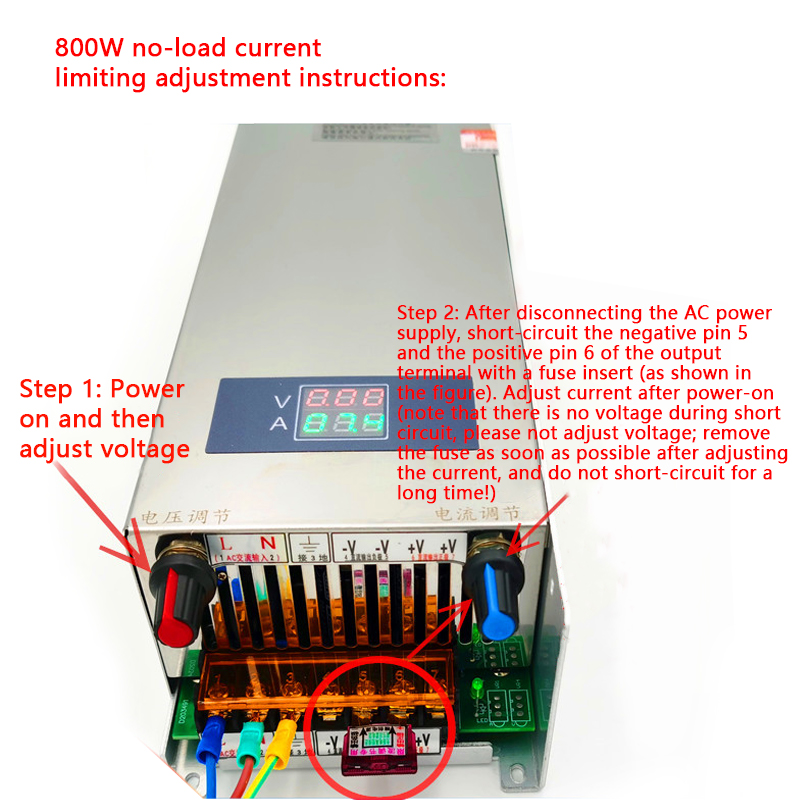

- Output current: 0.2A-33A current limit adjustable
- Rated power: 800W
- Digital meter showing voltage and current
- 3-digit display: Voltage display accuracy: 0.01V (below 10V), 0.1V (above 10V), and 1V (above 100V); current display accuracy: 0.1A

Technical Indicators:
- Environmental conditions: Working temperature: -20 to 50℃; Storage temperature: -40 to 70℃; Relative humidity: 90% (40±20℃); Atmospheric pressure: 70-106KPA
- Dimensions: 260 x 105 x 65mm/10.2 x 4.1 x 2.6" (LxWxH)
- Hole spacing: 252 x 88mm/9.9 x 3.5" (LxW)
- Overall weight: 1.5KG/3.3LB
- Efficiency: > 85%
- Power factor: > 0.85
- Load regulation rate: < 1%
- Voltage regulation rate: < 0.1%
- Ripple voltage: < 1%
- Protection: Input over-voltage and under-voltage protection; output over-voltage, over-current, and short-circuit protection; over-temperature protection of the whole machine
- Overheating protection threshold of the whole machine: 80~85℃
- Insulation resistance: ≥ 20M
- Input to chassis withstand voltage: ≥ AC1500V
- Input to output withstand voltage: ≥ AC1500V
- The withstand voltage of the output to the chassis: ≥ AC500V
- Mean time between failures: ≥ 50000H

Package Included:

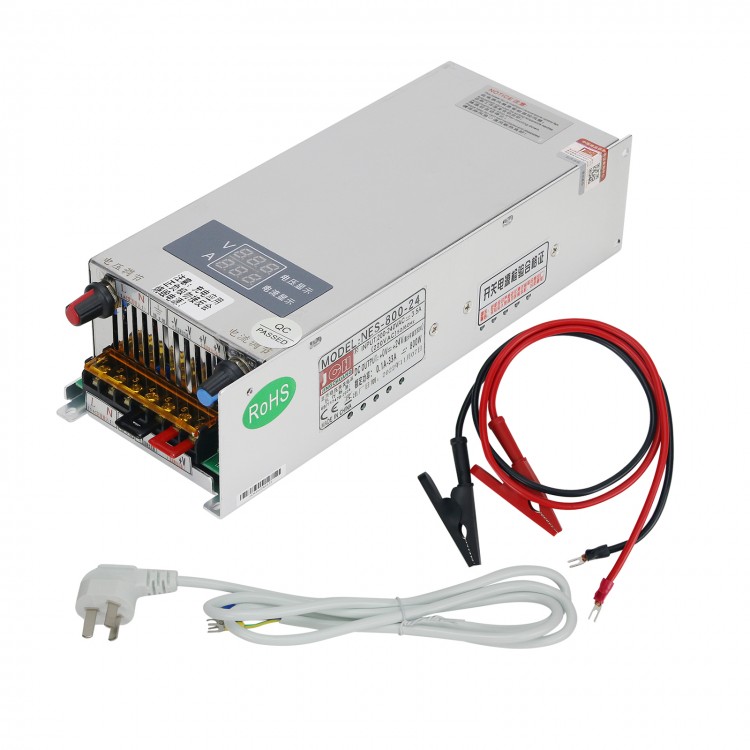

- 1 x Power Supply
- 1 x User Manual
