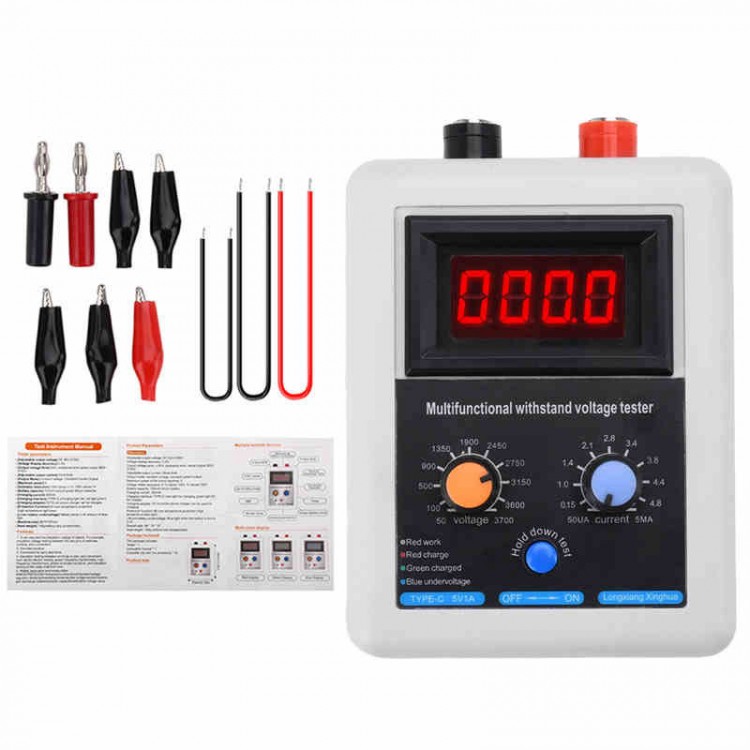

0-3500V Multifunctional Transistor Withstand Voltage Tester (w/ Red Display) for MOSFET Triode LED

0-3500V Multifunctional Transistor Withstand Voltage Tester (w/ Red Display) for MOSFET Triode LED

Features:
- It can test the insulation voltage of objects. For example, it can test the insulation voltage between switches, buttons and connector pins
- It is also convenient for insulation testing between windings. For motors, power frequency transformers, high-frequency transformers, phase insulation, and insulation testing of the insulation part between the iron core and the external metal shell
- Widely applicable: Can measure the dielectric withstand voltage of NIMOS/PMOS/IGBT/transistors/thyristors/voltage regulator diodes/light-emitting diodes/rectifier bridges/varistors/ceramic gas discharge tubes/electrolytic capacitors
- Multifunctional withstand voltage tester can test devices in the range of 0-3700V. It can test voltage regulator diodes, N-P MOSFET, triode, thyristor, IGBT and various devices. It can also test bidirectional trigger diodes, N-MOSFET, rectifier bridge, electrolytic capacitor, varistor, unidirectional thyristor and P-MOSFET
- Tested devices include bidirectional silicon controller, P-type MOSFET, ceramic discharge tube, electrolytic capacitor, triode, voltage regulator diode, unidirectional thyristor, rectifier diode, IGBT, light emitting diode, CCFL lamp and N-type MOSFET
- Compact size makes it easy to carry and store

Specifications:
- Adjustable output voltage: DC 50V-3700V
- Voltage display accuracy: 0.3%
- Output voltage error: 50V, resistance error actual output 3650-3750V
- Adjustable output current: 50uA-5mA
- Output mode: constant voltage and constant current output
- Maximum power: 5W
- Voltmeter resolution: below 0.1V for 100V, and above 1V for 100V
- Battery capacity: 700mA class A lithium battery
- Charging current: 550mA
- Charging interface: Type-C (charging indicator light is red. Full power indicator light is green)
- Charging adapter: 5V 1A mobile phone charger can be used for charging
- Protection: 80℃ over-temperature protection (high temperature indicator light is blue)
- Lithium battery under-voltage indicator: When the battery is lower than 3.3V, the blue light will be on
- Main unit size: 98*70*37mm
- Main unit weight: 108g

Package Included:
- 1 x Set of Withstand Voltage Tester

Packaging Details:
- Weight: 0.2kg
