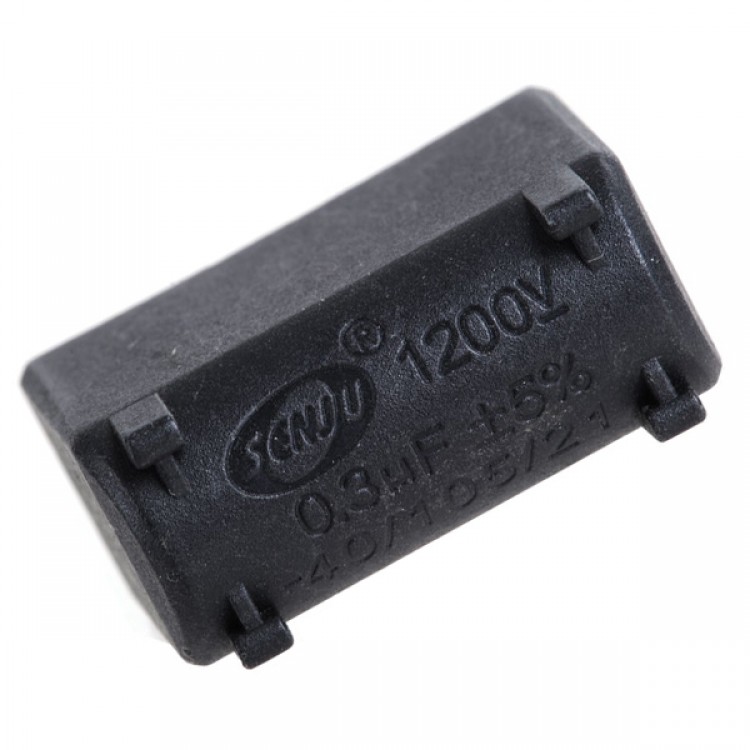

0.3uf 1200V Capacitor for Motor Metallized Polypropylene Film Capacitor 10-Pack
Features:
- Small dissipation factor
- long life,safety
- small size small loss
- ISO 9001:2008 standard
- With a small loss,anti-moist,excellent electrical performance,reliability,large capacity,long life and good self-healing properties
Application:
- AppIied to starting and better working of single-phase motor in 50Hz(60Hz) AC electric power system. It is widely used for electric fan, range hood, air exchange fan,washing machine, and also power saver
Technical parameters:
| Capacitance Range | 0.1μF—35μF |
| Capacitance Tolerance | ±5% , ±10% |
| Rated Alternate Voltage | 250VAC, 350AC, 370AC, 400VAC, 440VAC, 450VAC,500VAC |
| Rated Frequency | 50/60 Hz |
| Dissipation Factors | ≤0.002(1KHz,20°C) |
| Operating Temp. | -40°C ~ +85°C or -40°C ~ +70°C |
| Case Material | PBT, PP, ABS, Flammability Class - UL 94 V -2, 750C (RTI) |
| Dielectric | Polypropylene with self healing SH |
| Insulation Resistance | ≥3000S |
| Weather Category | 40/85/21, 40/70/21 |
| Withstand voltage(Terminal to Terminal) | 2 X Rated Voltage |
| Withstand voltage (Terminal to Case) | Minimum 2000 V AC for 1 Min. |
| Ref. Standard | IEC - 252-1993 |
| Quality System | ISO 9001:2008 |
| Approvals | CQC,CE |
| Application | Electrical motor, pump, washing machine, Power saver |
