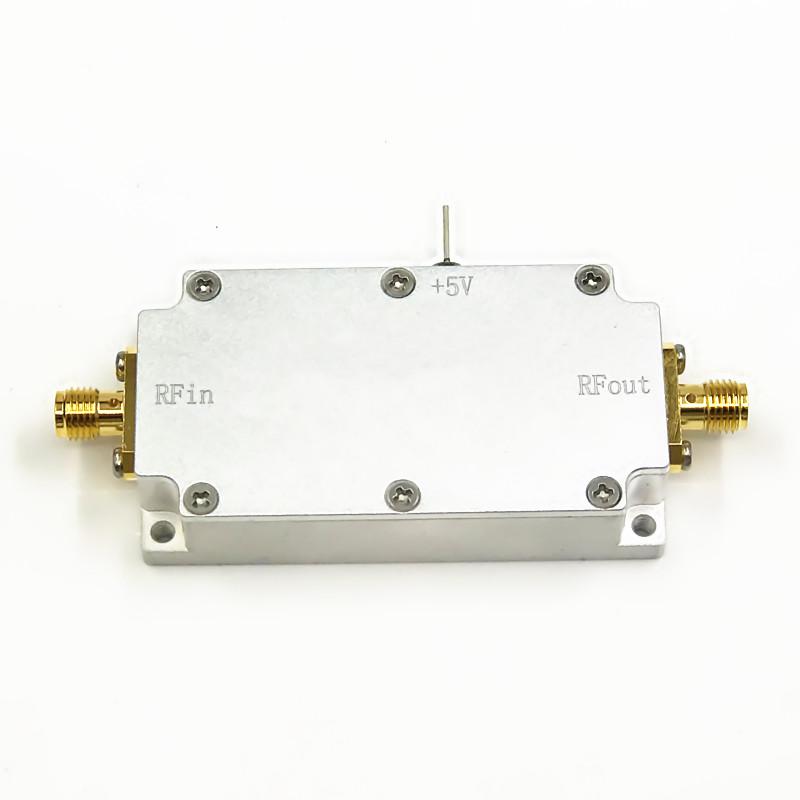

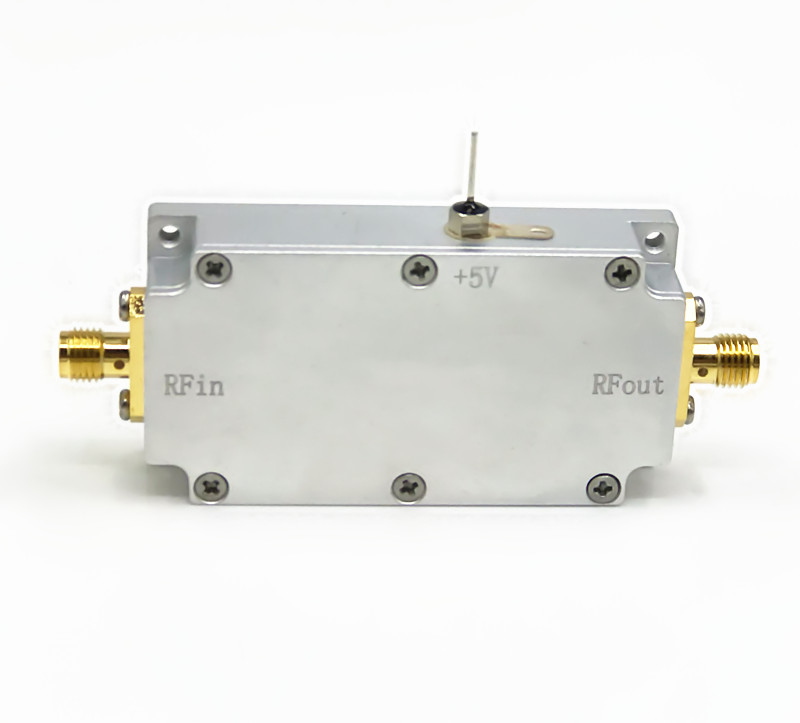

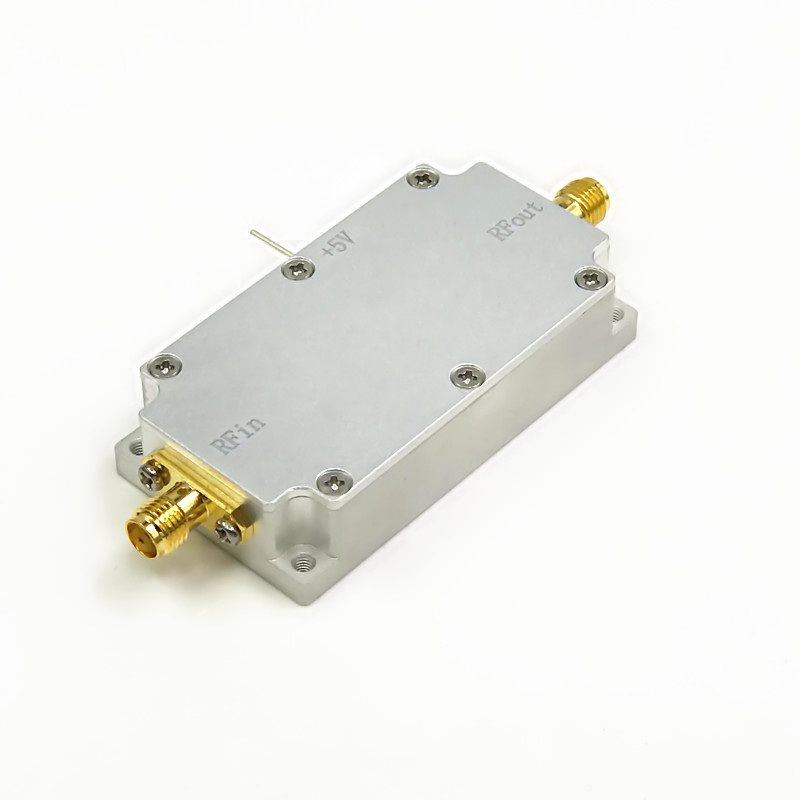

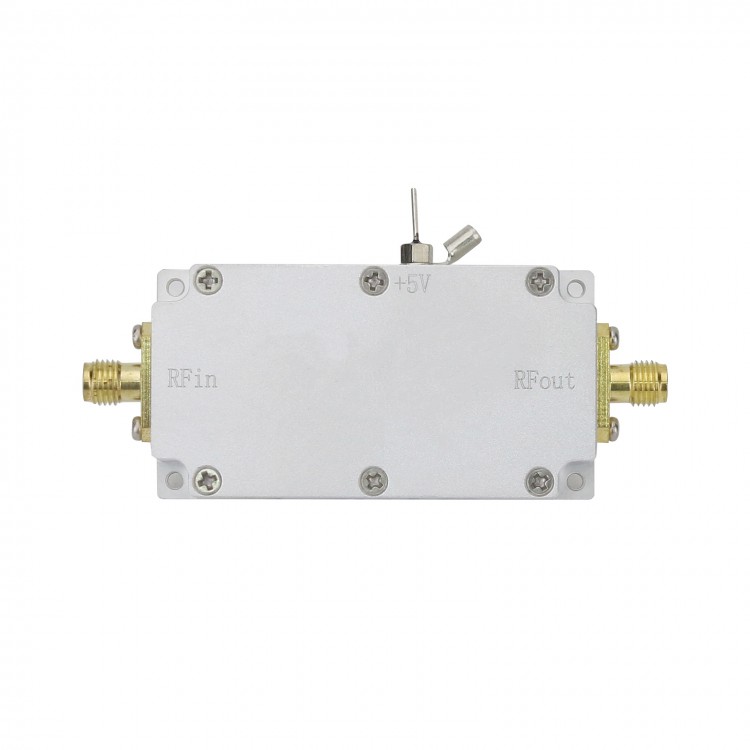

0.5 - 3.5GHz LNA Low Noise Amplifier 50dB High Gain RF Radio Accessory for GPS Beidou GLNSS
Description:
- This amplifier has the advantages of wide frequency range, high gain, low noise figure, etc. It can be used as a front-end for satellite positioning RF reception, increasing communication distance and other situations that require low noise and small signal RF amplification.
Specification:
- Working frequency: 0.5 - 3.5Ghz
- Working voltage: 4.5 - 5.5V
- Working current: 180mA
- Amplification gain: 50dB (5V power supply)
- Maximum output: +20dBm (100mW) at 1dB compressed point
- Noise Ratio: 0.8dB (Typ.)
- System impedance: 50ohm
- Connector: SMA Female connector
- Size: 31 x 59 x 13.5mm (not include the connector)
- Weight: 52g
Amplification gain:
- F = 0.5GHz, gain = 47dB
- F = 0.9GHz, gain = 47dB
- F = 1.2GHz, gain = 46dB
- F = 1.4GHz, gain = 46dB
- F = 1.5GHz, gain = 45dB
- F = 1.8GHz, gain = 45dB
- F = 2.4GHz, gain = 46dB
- F = 3.0GHz, gain = 46dB
- F = 3.5GHz, gain = 46dB
Package Included:
- 1 x Low Noise Amplifier
