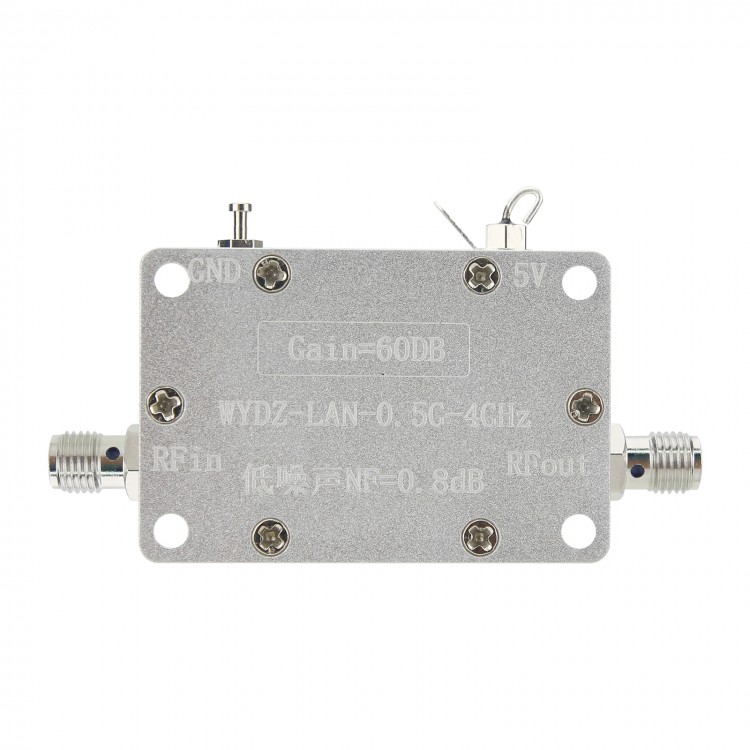

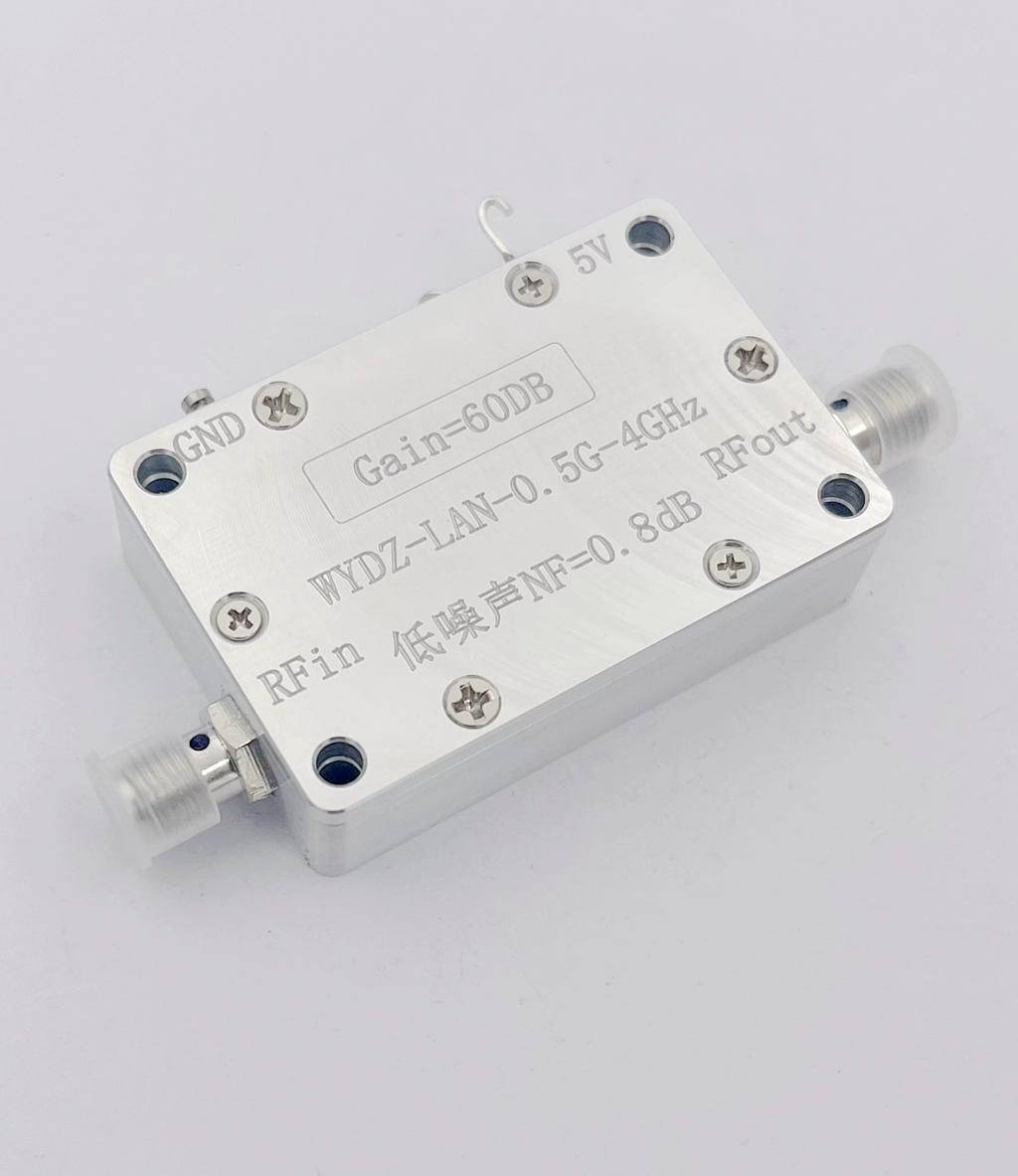

0.5-4GHz LNA 60dB High Gain 50ohms Low Noise Amplifier with SMA Female Connector for GPS/Beidou/GLNSS Amplifier
Application:
- This amplifier has the advantages of wide frequency range, high gain, and low noise coefficient, and can be used as a front-end for satellite positioning RF reception, increasing communication distance. Waiting for places that require low noise and small signal RF amplification.
Specification:
- Working frequency: 0.5 - 4GHz

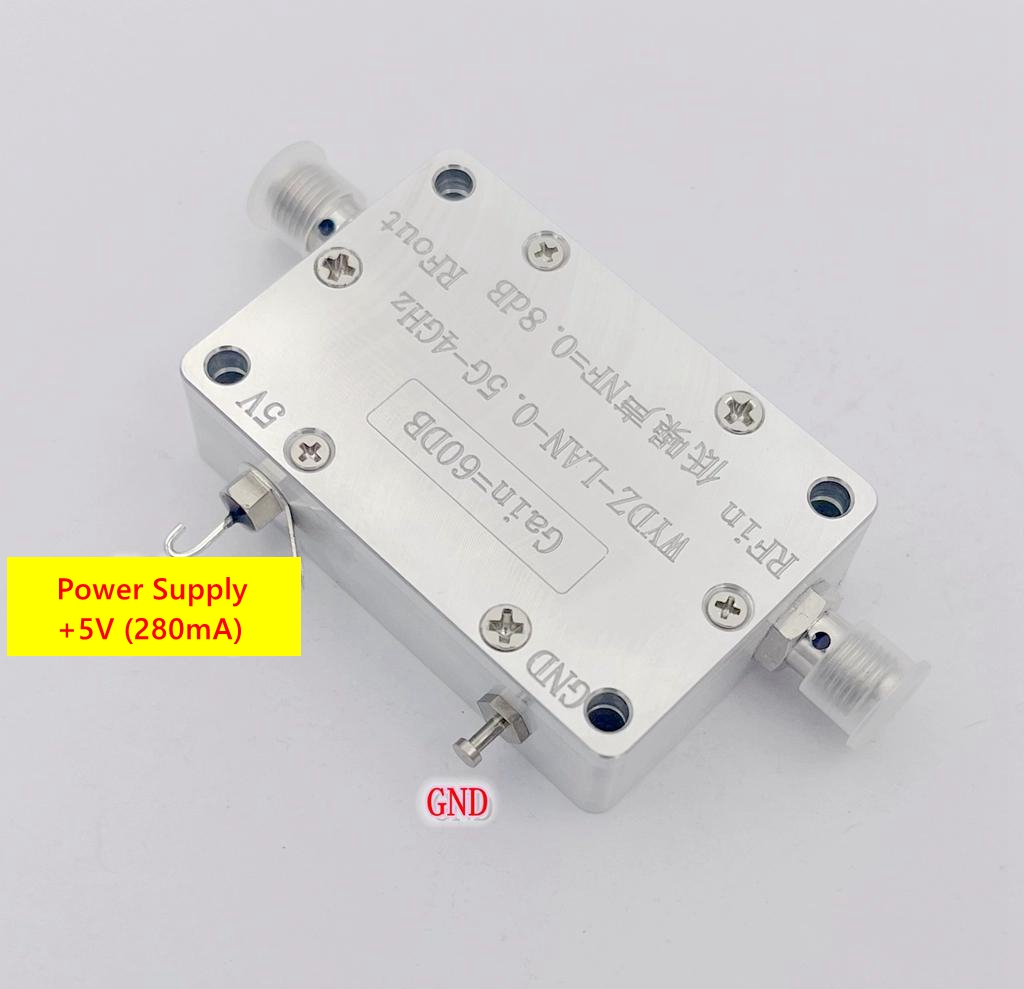

- Working voltage: 4.5 - 5.5V
- Working current: 280mA

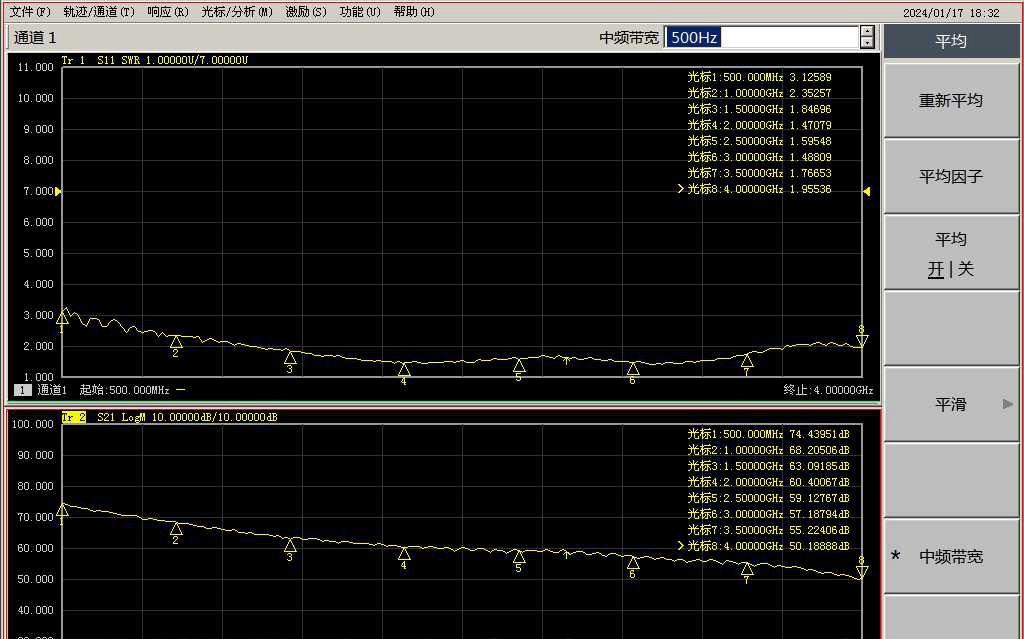

- Amplification gain: 60dB (5V power supply)
- Maximum output: +22dBm at 1dB compressed point

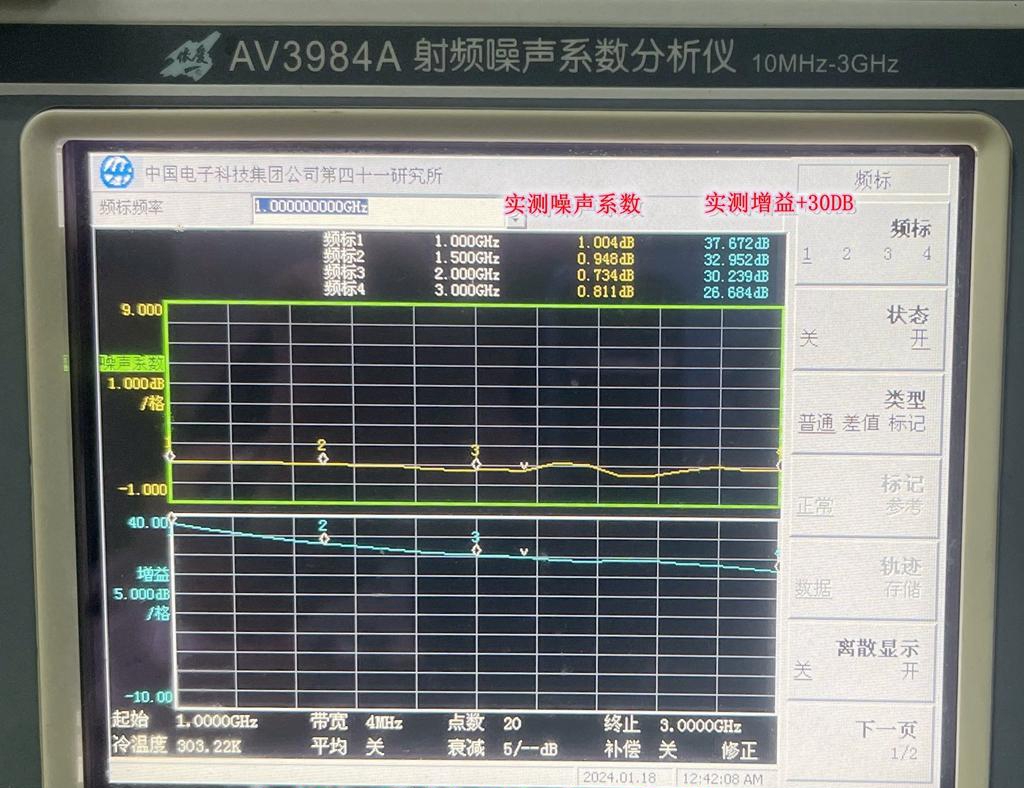

- NF: 0.8dB (Typ.)
- System impedance: 50ohms
- Case material: CNC processed

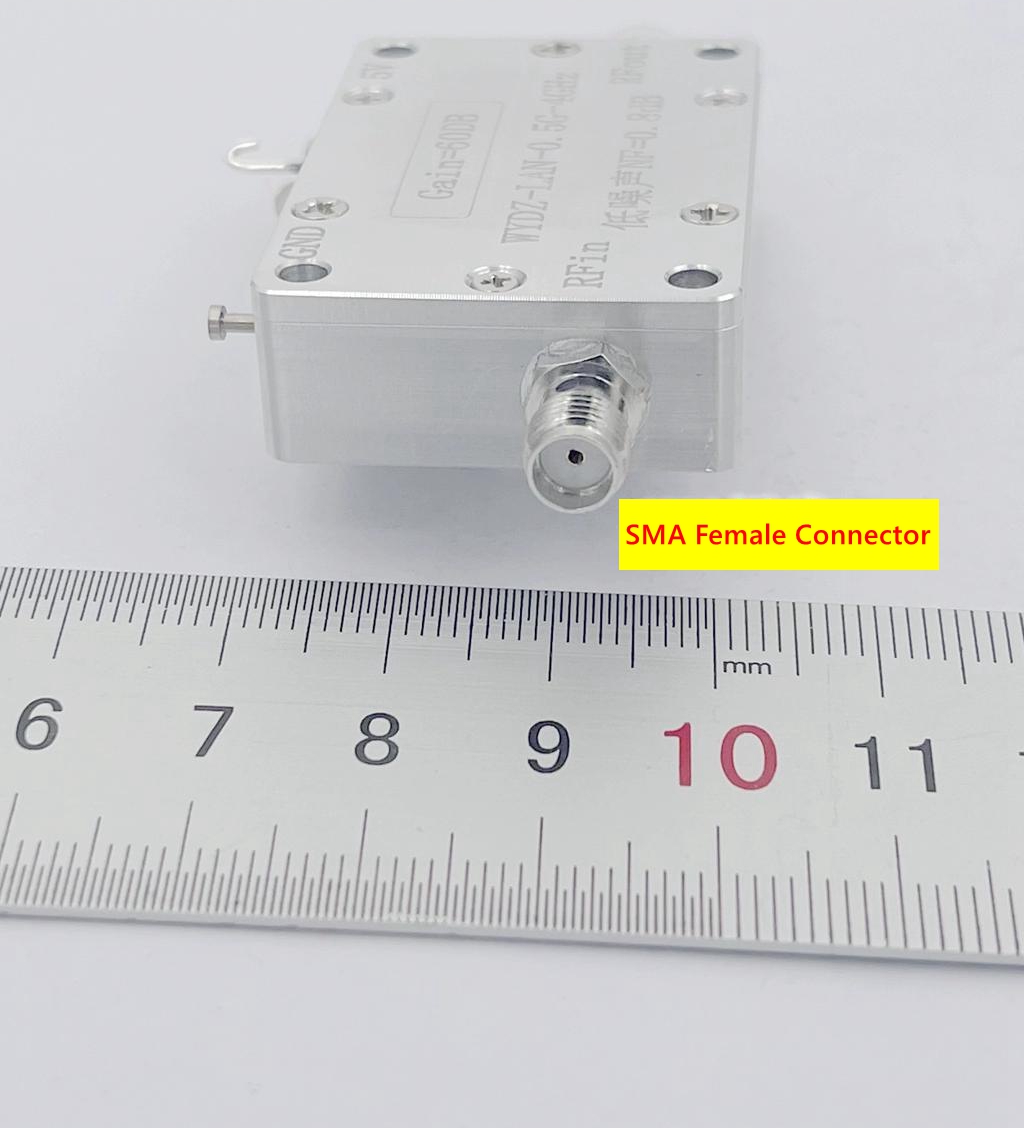

- Connector: SMA female connector

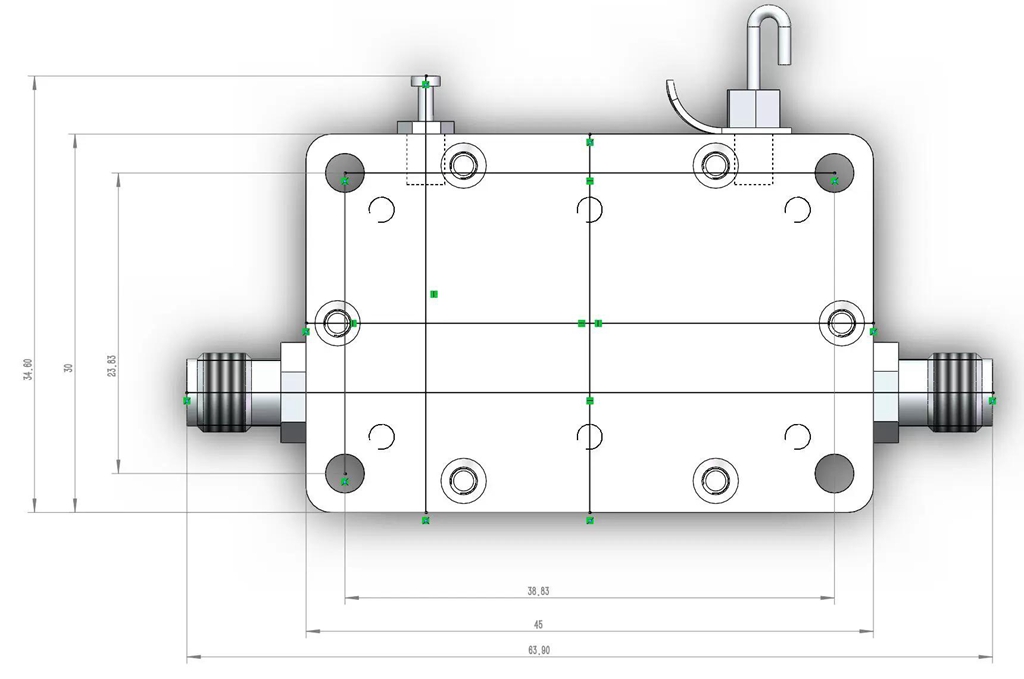

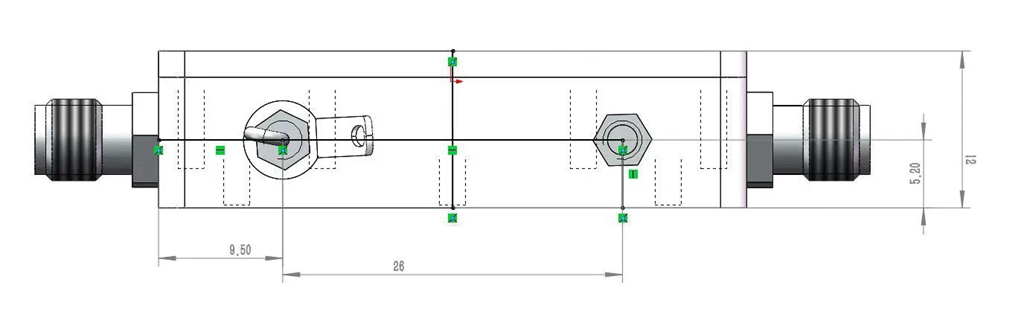

- Size: 45 x 30 x 12mm (excluding the connector length)
- Net weight: 52g
Package Included:
- 1 x Low Noise Amplifier
