| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $117.12 | $114.73 | $111.14 | $106.36 | Contact US |
ADMT-100KG-X Cave Detector Finder Cave Exploration Tool Kit Standard Version for Depth up to 100m
$1,171.82
ADMT-20KG-X Cave Detector Finder Cave Exploration Tool Kit Standard Version Supports Depth up to 20m
$1,026.07
FPU-1 Nitrogen Charging Kit Nitrogen Charger with 3 Gauges 1 Hose & 7 Couplings for Accumulators
$219.60

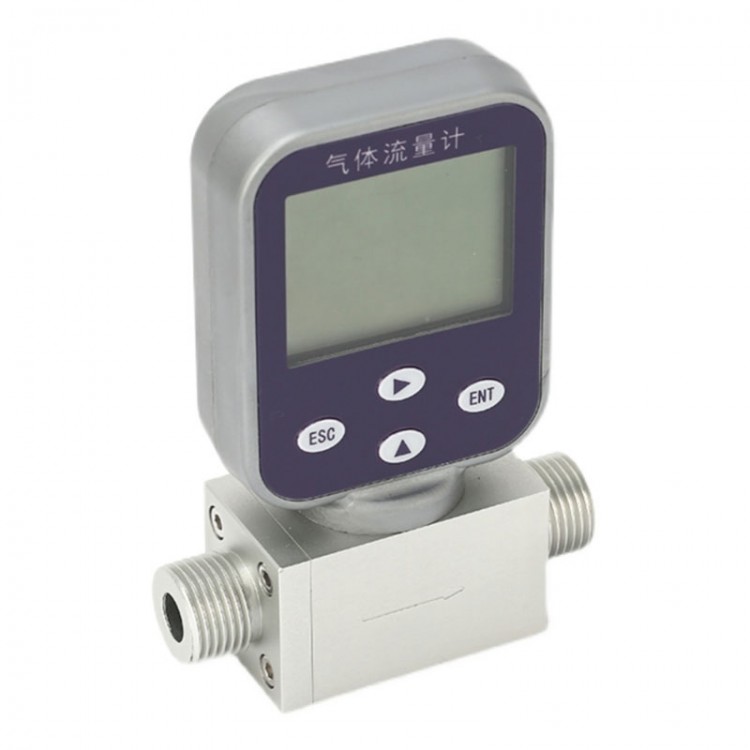

0-50L/min Methane Flow Meter Miniature Thermal Gas Flow Meter Mass Gas Flow Meter with RS485 Output
Features:
- Measuring range: 0-50L/min without pressure loss
- It can display cumulative flow and instant flow
- Operating temperature: -10 to +55°C
- Accuracy: ± (2.0+0.5FS)%
- Powered by a 24V DC external power supply
- Power consumption: ≤ 2.4kW
- Output mode: RS485 output
- Accurate measurement, flexible output, LED display, high range ratio, easy installation and quality assurance
- Widely used: mainly used in metallurgy industry, paper-making industry, pharmaceutical industry, hydro-power engineering, oil industry, chemical machinery, etc.
Specifications:
- Supply voltage: 15-24V DC
- Linearity accuracy: ±0.5%F.S
- Measuring range: 0-50L/min
- Repeatability: ±0.2%F.S
- Working pressure: Below 1.5MPA
- Connection: NPT1/2 external thread. Can be equipped with adapter
- Response time: 50-1000ms
- Range ratio: 1:100
- Accuracy: ±2%F.S
- Signal output: RS485
- Analog quantity: 0~5V
- Medium temperature: 55°C
- Medium type: Methane
- Humidity: <95%RH (no condensation/no frost/not freezing)
- Component material: stainless steel, aluminum alloy material, etc. can be customized. Adapters are available in a variety of sizes
Package Included:
- 1 x Gas Flow Meter
Packaging Details:
- G.W.: 0.4kg
