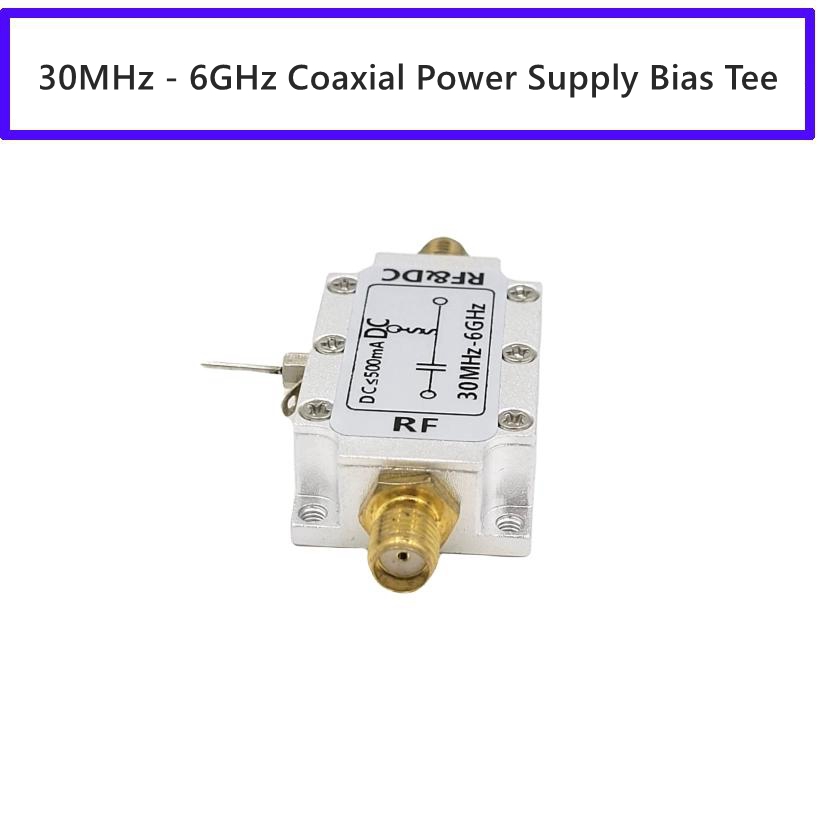

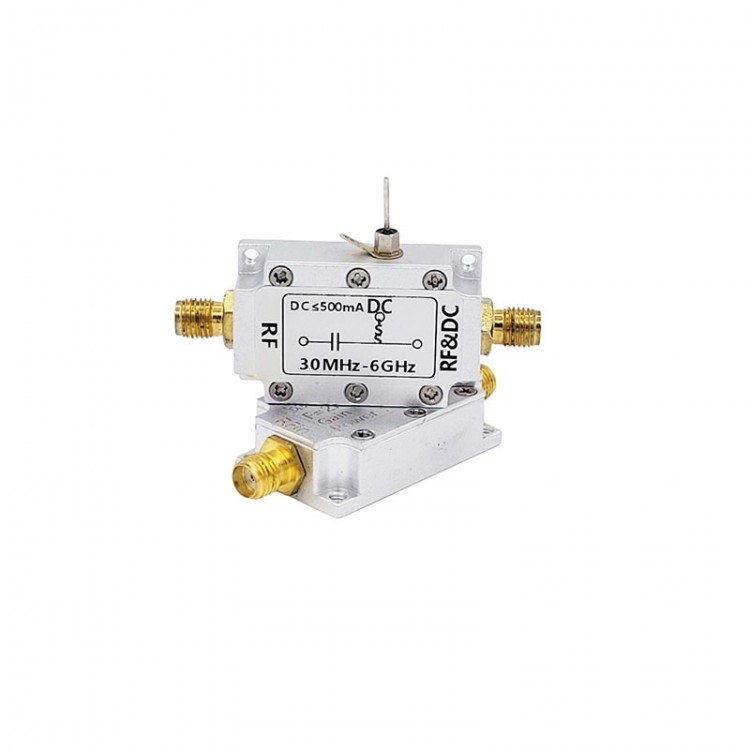

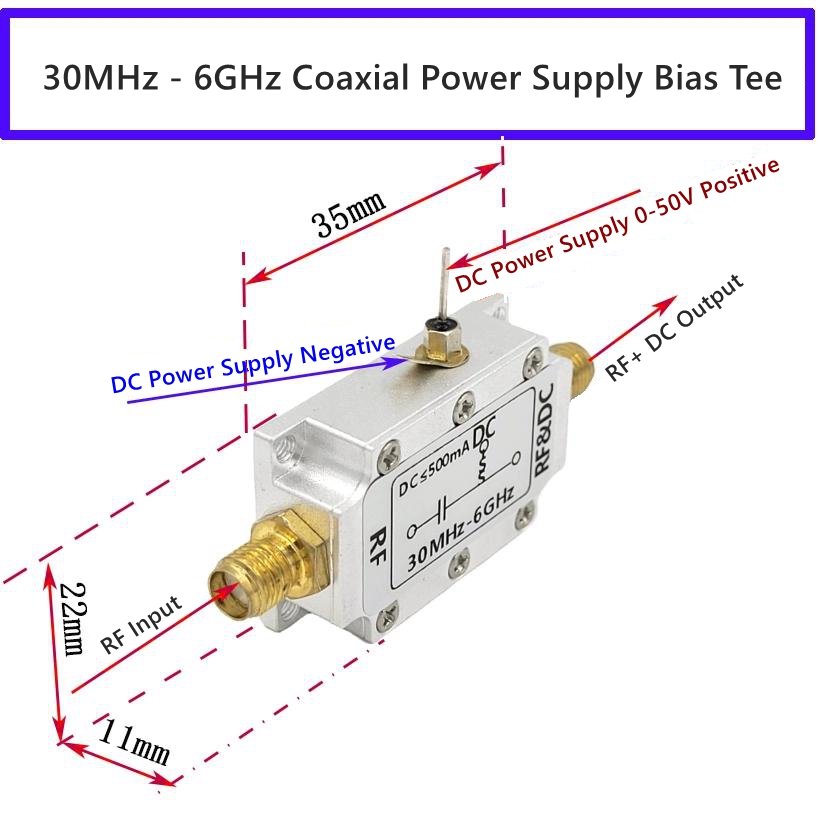

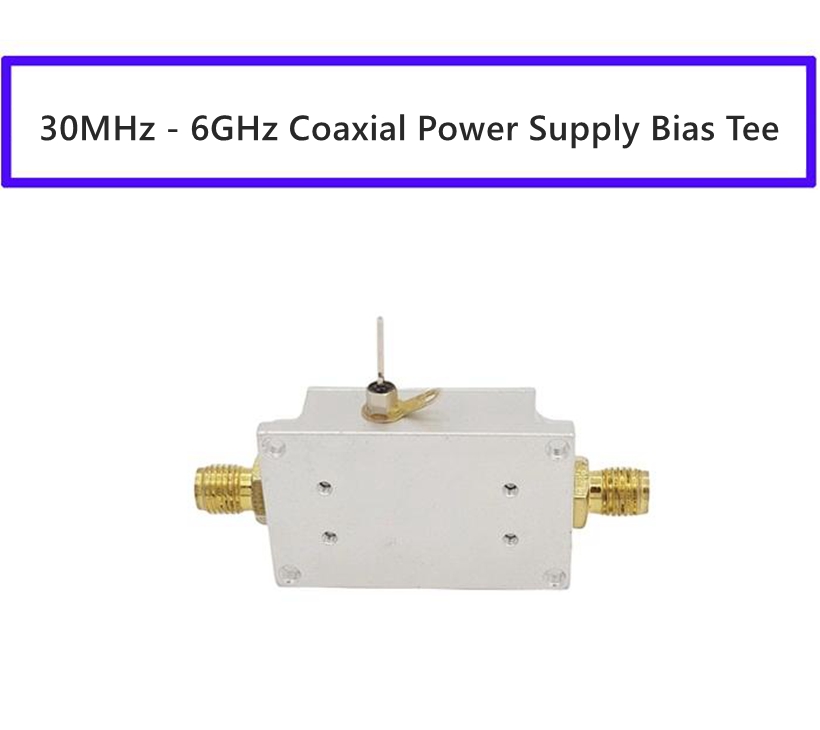

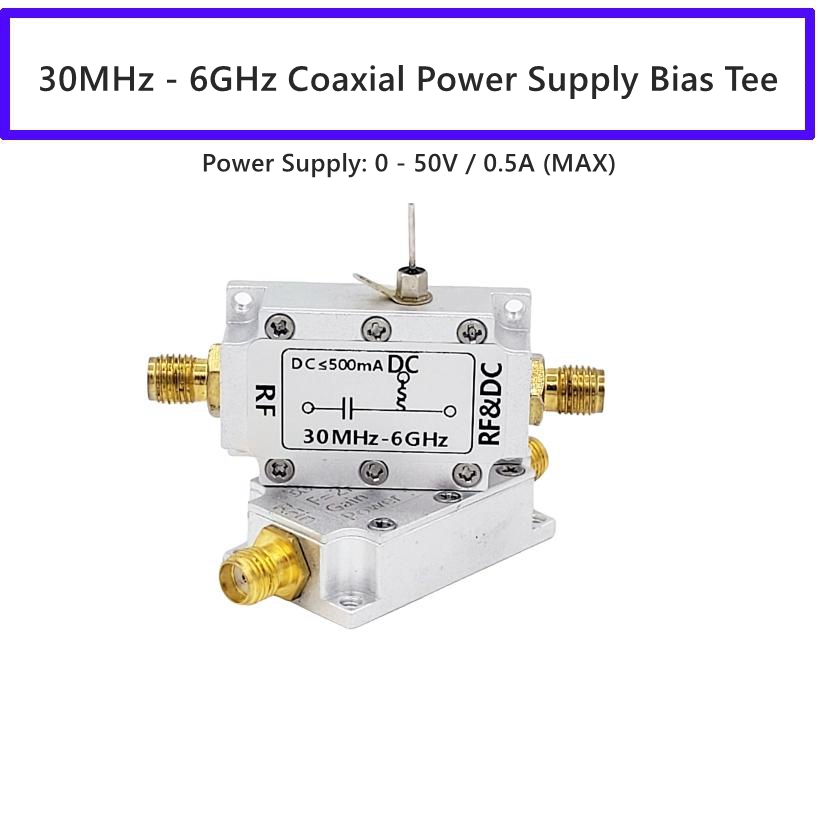

0-50V Self Welding DC Power Supply 30MHz-6GHz RF Isolator High Quality Coaxial Bias Tee with SMA Female Connector
Specification:
- Withstand current: 500mA
- Connector: SMA female connector
Frequency and Corresponding Insertion Loss:
- 30MHz: -0.07dB
- 100MHz: -0.09dB
- 500MHz: -0.16dB
- 1000MHz: -0.25dB
- 1500MHz: -0.34dB
- 2000MHz: -0.73dB
- 2500MHz: -1.3dB
- 3000MHz: -1.73dB
- 4000MHz: -2.0dB
- 4500MHz: -2.55dB
- 5000MHz: -2.86dB
- 5500MHz: -3.1dB
- 6000MHz: <3.12dB
Package Included:
- 1 x Bias Tee
