Product Description:
- For FM walkie-talkie debugging
- Frequency 0.5M --- 470M
- Signal strength -70--132dBm
- Built-in 800Hz tone modulation
- Use 8--12V DC power supply
- Frequency 7 digits Example: 439012.5KHZ display 4390125
- Signal strength -70--132dBm effective other value is invalid
- Value direct input selection item: the number keys
- Numerical stepping modify the selection of project: arrow keys
Audio modulation just about 800Hz other value is invalid:
F1: cycling setting item,pointing to the selected item,respectively,frequency,signal strength,audio modulation frequency
F2: backspace key input of an error
F3: closed,open signal output
F4: closed,open audio signal modulation
Package List:

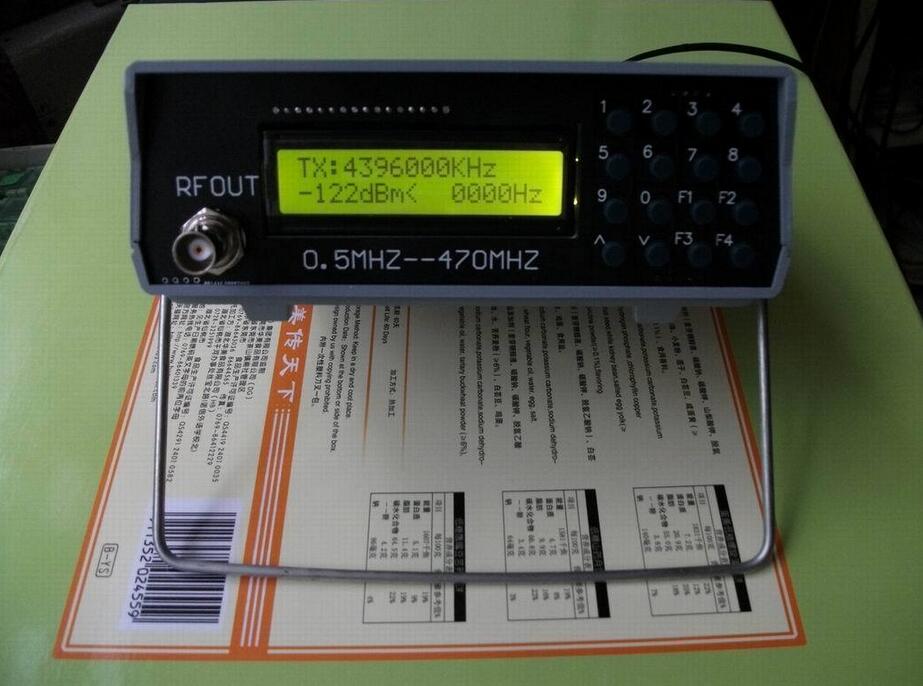

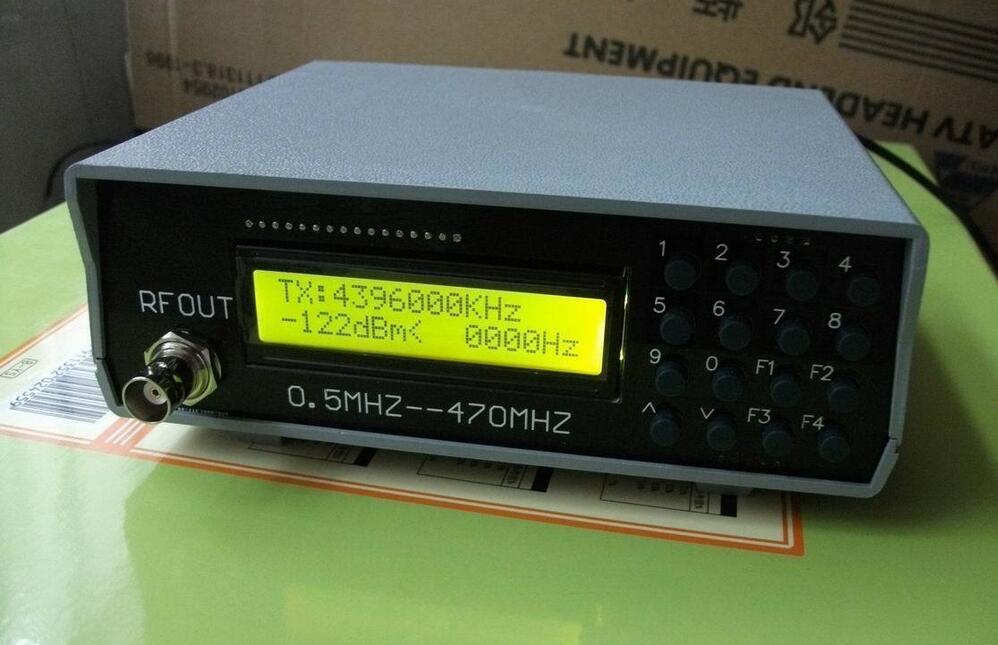

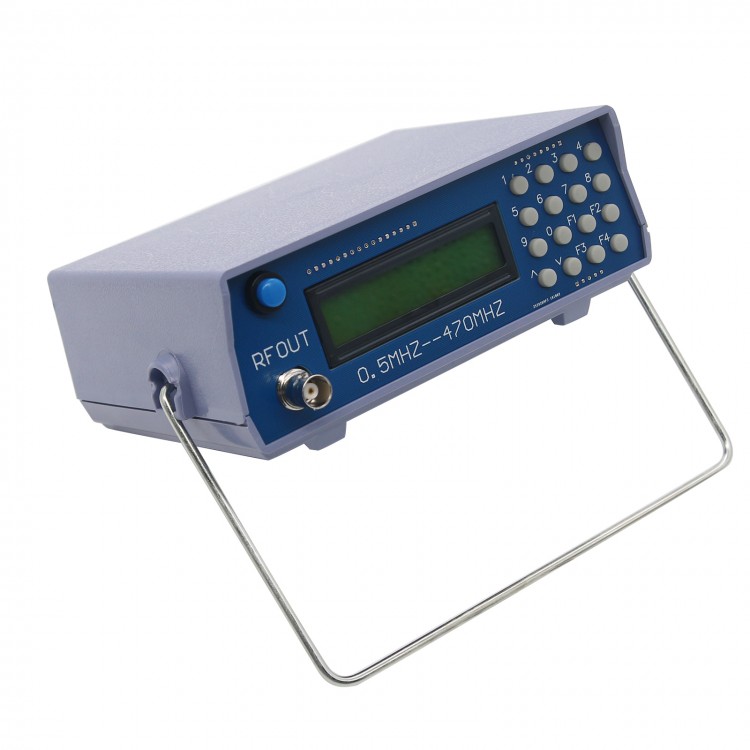

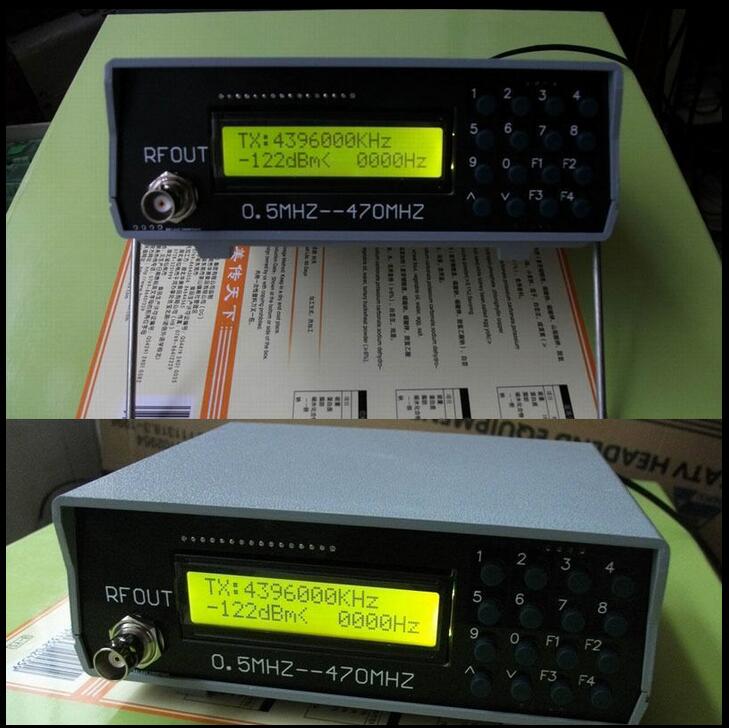

- 1 x 0.5Mhz-470Mhz RF Signal Generator Meter Tester
Note:
- 1. Maximum Sensitivity: -70dbm
Please test its output signal with high-sensitivity spectrum or walkie talkie, instead of oscillometer.
- 2. Specially designed for testing the sensitivity of your walkie talkie, the signal generator meter is not for testing the sensitivity of FM radios. It features narrow-band FM mode different from that of radios.
- 3. Power cable is not included.
