0-5V Output Wind Speed Sensor + 8-Direction Wind Direction Sensor for Weather Station Agriculture

0-5V Output Wind Speed Sensor + 8-Direction Wind Direction Sensor for Weather Station Agriculture

Wind Speed Sensor:
- Wind speed sensor: anti-corrosion, anti-weathering and anti-electromagnetic interference.
- It can be connected to external display instrument. Highlight readings are clearly visible and detection values are displayed in real time.
- Polycarbonate shell: Made of polycarbonate, it is small in volume to reduce friction and increase sensitivity for more accurate measurements. Polycarbonate is resistant to acids, alkalis and oxidation resistance. This greatly extending the service life of the product.
- Bearing cap: The bearing cap brim makes it waterproof and rainproof and enables higher protection level and stable working performance.
- Flange base: It is mounted with flanges. The base has four 6mm diameter mounting holes that use bolts to secure the anemometer to a bracket. The flange connection makes it easy to use and can withstand high pressure.

Wind Direction Sensor:
- Wind direction sensor: anti-corrosion, anti-weathering and anti-electromagnetic interference.
- Easy installation: It has an arrow pointing to due north. The north sign makes it easy to install, which can avoid measurement errors.
- Easy connection: Waterproof cables can be plugged together, making it easy to connect and avoiding mis-connection of the cable.
- Polycarbonate shell: Polycarbonate is resistant to acids, alkalis and oxidation resistance. This greatly extending the service life of the product.
- Stable base: The aluminum alloy increases the stability of the base and enhances its bearing force, thus greatly improving the anti-interference performance to ensure the accuracy of measurement.
- Aviation plug: Four-pin aviation plug is resistant to corrosion and erosion. It has strong performance to use.

Application:
- It is suitable for the measurement of wind speed and wind direction in the field of construction machinery (cranes, crawler cranes, gantry cranes, tower cranes, etc.), terminals and ports, meteorological environment, greenhouses, animal husbandry, smart agriculture, etc.It can output response signals to help you solve problems.

Specifications:
- Equipment power supply: 10~30VDC
- Maximum power consumption: 1.2W
- Accuracy: ± (0.2+0.03V)m/s. V means wind speed (60%RH and 25°C)
- Measuring range: 0~60m/s (default 0-30m/s)
- Resolution: 0.1m/s
- Working environment of transmitter circuit: -40°C to +70°C and 0%RH~80%RH
- Response time: ≤2s
- Output signal: 0-5V (5V powered)
- Load capacity: Output resistance≤ 250Ω (voltage output)

Size of Wind Direction Sensor:
- Overall Height: 190mm/7.5"
- Spindle Height: 142mm/5.6"
- Base Height: 71mm/2.8"
- Base Diameter: 80mm/3.1"
- Mounting Holes: 4.5mm/0.2" in Diameter
- Distribution Diameter: 68mm/2.7"

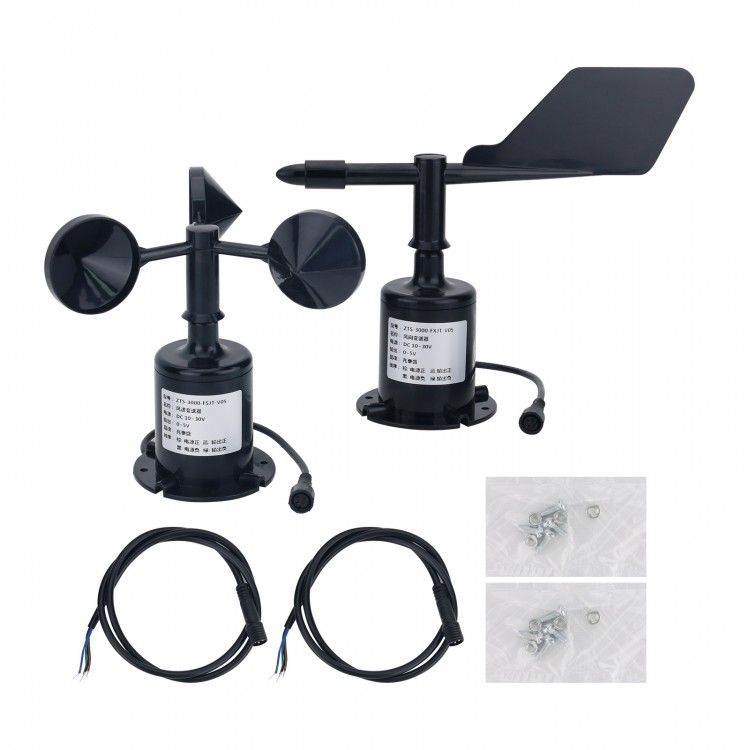

Package Included:
- 1 x Wind Speed Sensor
- 1 x Wind Direction Sensor

Note:
- The wind speed sensor supports side and bottom cable outlets.
