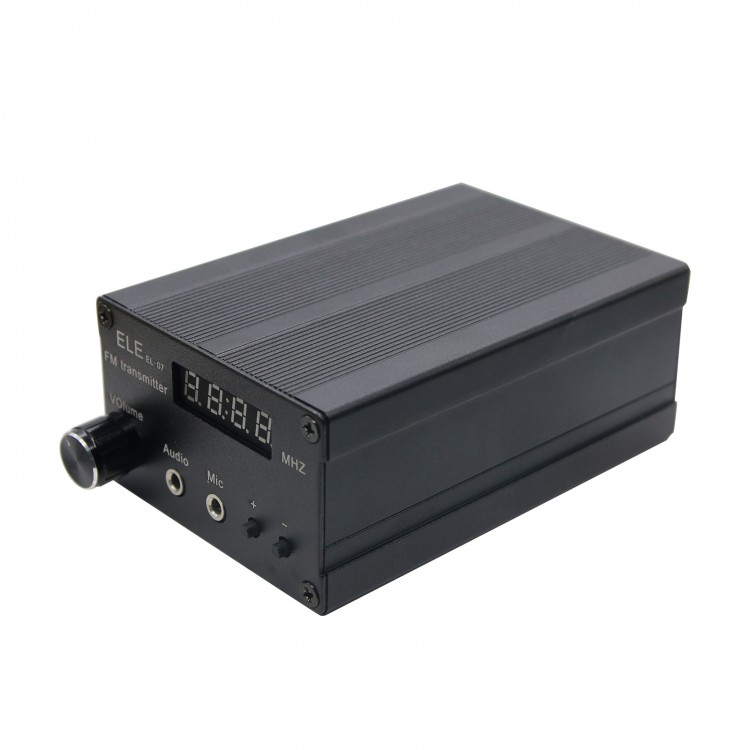

0.5W EL-07RF70120 Series Stereo Frequency Modulation Transmitter Four Grades Adjustable
Parameters:
|
Frequency range |
87.5-108MHZ(70-90M、100-120M) |
|
Frequency stepper |
0.1MHZ |
| Frequency stabilization |
±10ppm (-10° C+50°C) |
|
display |
Led |
|
Modulation |
FM |
|
Antenna resistance |
50Ω |
| Antenna interface |
BNC/Q9 |
|
Output power |
0.2W、1W、3W、5W （50MW、100MW、200MW、0.5W） |
|
Spurious and Harmonics |
< -30dB |
|
Frequency deviation |
≤±75kHz（100%） |
|
Modulation sensitivity |
0.75V |
|
Sound source |
CD、MP3、PC… |
|
Mic electrical level |
1-2mv |
|
Frequency response |
150～15000Hz |
|
Distortion |
≤2%(F=75KHz,f=1KHz) |
|
S/N |
≥55dB(1KHz 100%) |
|
Power voltage |
DC(9V～13.8V) |
|
Working current |
< 1.2A |
|
Working temperature |
-10°C…+60°C |
|
N.W |
about 500g |
|
Size |
125mm*77mm*45mm L W H |
