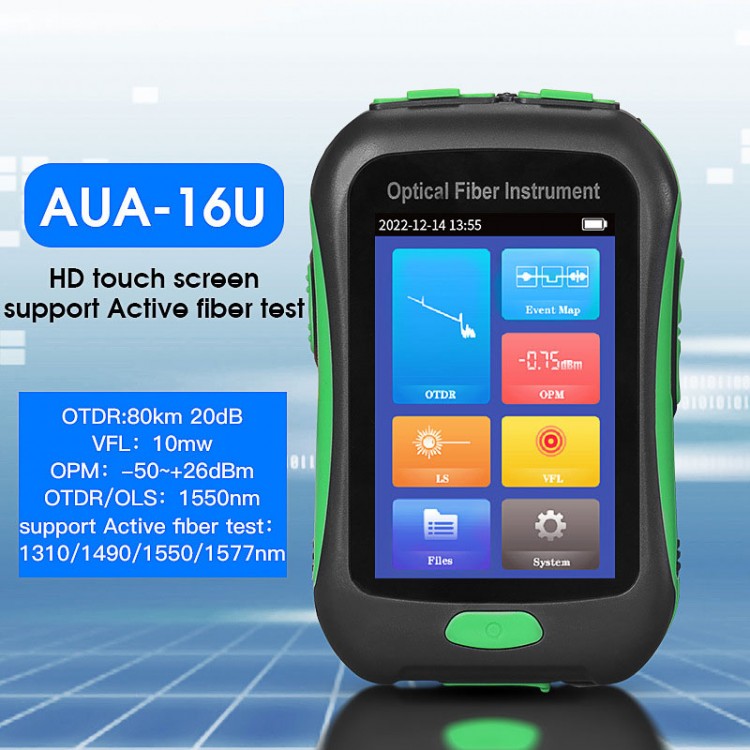

0 - 80KM 1550nm AUA-16U UPC Port Rechargeable OTDR Optical Time Domain Reflectometer with 3.5-inch HD Touch Screen
Features:
- Support active fiber test
- Support multi touch, smooth control, dazzle soft light screen, adjustable screen brightness
- 2200mAh large-capacity built-in lithium battery
- High permeability visual VFL Equipped with LED backlight
Specification:
- OTDR: 0 - 80KM
- OPM: 8 wavelengths
- OLS: 1550nm
- VFL: 10mw
- Display: Full touch 3.5-inch, 320 x 480 color LCD
- Power supply:
AC/DC adapter: Input: 100 ~ 240V, 50/60Hz, 0.6A; output: 5V, 2A
Lithium polymer battery: 3.7V, 2200mAh
- Working hours: standby > 6h, continuous test > 4h
- Data storage: internal: ≥2000 pieces
- Data interface: Type-C USB
- Working temperature: -10℃ ~ +50℃
- Storage temperature: -40℃ ~ +70℃
- Relative humidity: 0 ~ 95% no condensation
- Size: 126 x 80 x 37mm
Package Included:
- 1 x OTDR
- 1 x Power Adapter
- 1 x Type-C Cable
- 1 x User Manual
- 1 x CD-ROM
- 1 x Cleaning Cotton
- 1 x Convenient Bag
