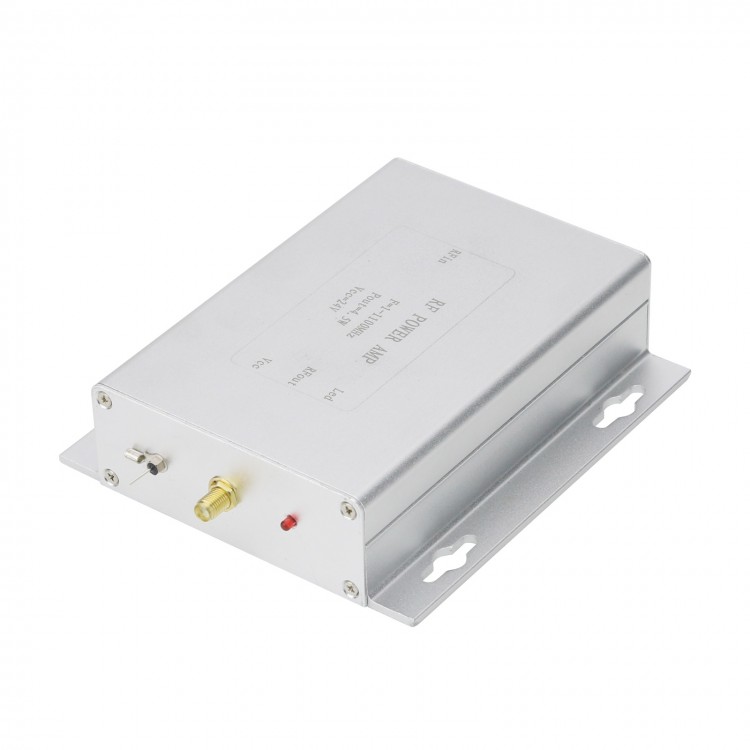

1 - 1100MHz 4.5W 24V 36.5dBm RF Power Amplifier with SMA Female Connector High Quality RF Accessory
Specification:
- Working frequency: 1 - 1100MHz
- Working voltage: 24 - 26V
- Working current: 400 - 600mA
- Amplification gain: 32 - 36dB
- Output power: 36.5dBm (4W typ.), maximum up to 5W
- Working status: Class A linear
- Connector: SMA Female connector
- Size: 120 x 130 x 35mm (not include the connector)
- Product weight: 300g
Wiring Method:
- RFin: signal input interface
- RFout: signal output interface
- VCC: power supply positive
- GND: power supply negative
- LED: power supply indicator
Note:
- During installation, please use the close contact between the shell and other metals to assist in heat dissipation.
Package Included:
- 1 x RF Power Amplifier
