| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $46.58 | $45.63 | $44.20 | $42.30 | Contact US |

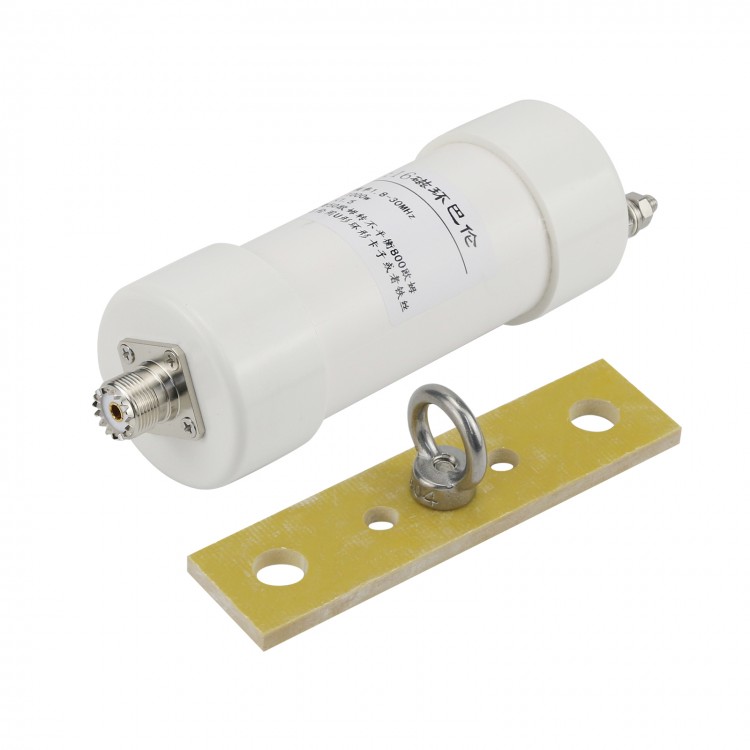

1:16 Balun 2-30MHz Unbalanced To Unbalanced 1000W For Shortwave Fishing Rod Antenna Long Wire Antenna
Main Parameters:
1. Transformation ratio 1:16
2. Input impedance: 50 ohms (unbalanced)
3. Output impedance: 800 ohms (unbalanced). Suitable for long-wired short-wave antennas, fishing rod antennas and other short-wave asymmetric antennas with an impedance of 800 ohms
4. Working frequency: 2-30MHz
5. Standing wave: less than 1.5
6. Withstand power: 1000w
7. Dimensions: outer diameter 57 x 200mm/2.2 x 7.9"
8. N.W.: 440g/1 lb
9. Designed with epoxy resin board, 304 stainless steel ring, two copper noses for connecting vibrator, making it convenient to use
10. Balun has taken waterproof measures, and users only need to waterproof between the M block and cable joint
Package Included:
- 1 x Balun
Note:
- Please use an U-shaped ring clamp or an iron wire to fix the balun.
