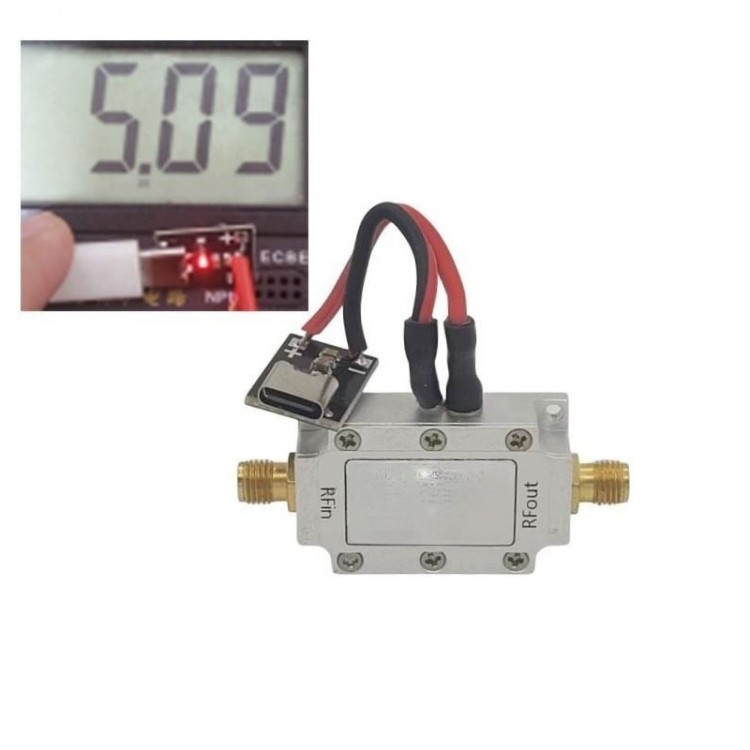

1.1GHz-1.62GHz RF Low Noise Amplifier Module 38.5dB High Gain LNA for GPS/BD/GLONASS (Type-C 5V Power Supply)
Description:
- This amplifier is a two-stage bottom noise amplifier developed for Beidou, GPS, GLONASS, Galileo, and navigation positioning equipment.
- High flatness and high gain in band.
- If used for receiving amplifier: out-of-band suppression >35dB (noise coefficient<0.75dB)
- If used as the front stage of RF power amplifier: the maximum output of this module is 20dBm/100mW).
Specification:
- Bandwidth: 1.1GHz - 1.62GHz (flatness < 1.5dB)
- Impedance: 50ohm
- Gain: 38.5dBi
- NF: < 0.75dB
- Input strength: <= -10dB
- Maximum output power: 20dBm (100mW)
- Case material: CNC aviation aluminum (corrosion preventive)
- Connector: SMA female connector
- Power supply: Type-C 5V power supply
Package Included:
- 1 x Low Noise Amplifier
Note:
- This module must first connect the input and output terminals, and then connect the DC power supply.
- When supplying DC power to the module, be sure to connect the DC positive and negative poles correctly. Do not reversely connect it, which may cause module damage.
