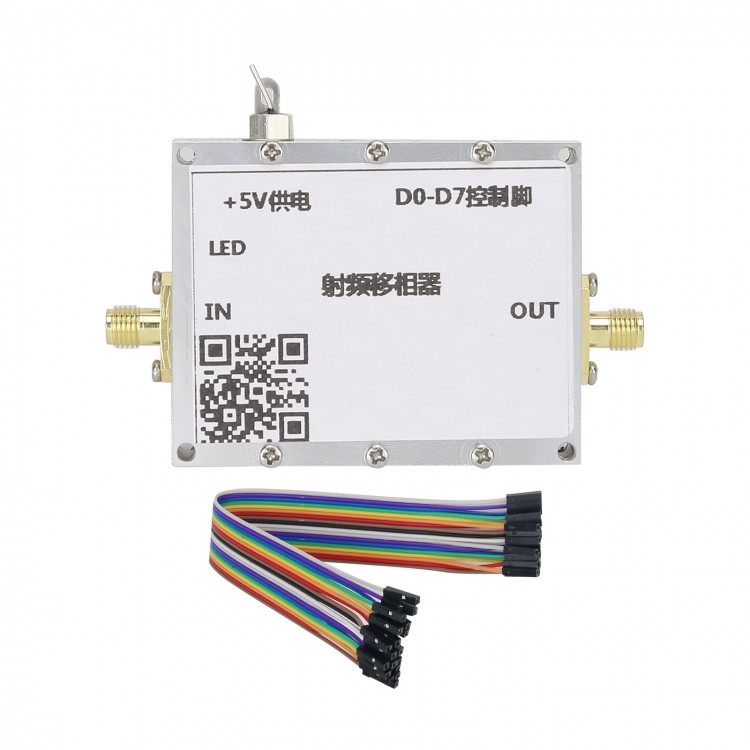

1-2.2GHz RF Digital Phase Shifter 8Bit Microwave Phase Shift Module SMA Connector w/ CNC Shell
Description:
The phase shifter is a device that controls the phase change of the signal and is widely used in radar systems, microwave communication systems, and measurement systems. This module adopts digital program control technology to realize the phase change of the input signal, and adopts 8bit serial or parallel control mode to meet the high precision requirements. At the same time, the built-in adjustable gain module can make up for the signal attenuation caused by the insertion loss of the module. With a CNC shell, the module has excellent electromagnetic shielding performance, and has mounting holes, which can be used with equipment.
Module Parameters:
1. Working frequency: 1-2.2GHz
2: Power supply: +5V single power supply
3: Phase control: 1.4°-358.6°
4. Phase accuracy: 1.4° high precision
5. Control mode: parallel control
6. Control interface: 2.54 pitch connector
7, the number of control bits: 8bit
8. Transmission gain: -5 to +10dB (settable)
9. Interface: SMA-K (customizable)
10. Module size: 58 x 45 x 16mm/2.3 x 1.8 x 0.6" (excluding the size of connectors)
Package Included:
- 1 x RF Phase Shifter
