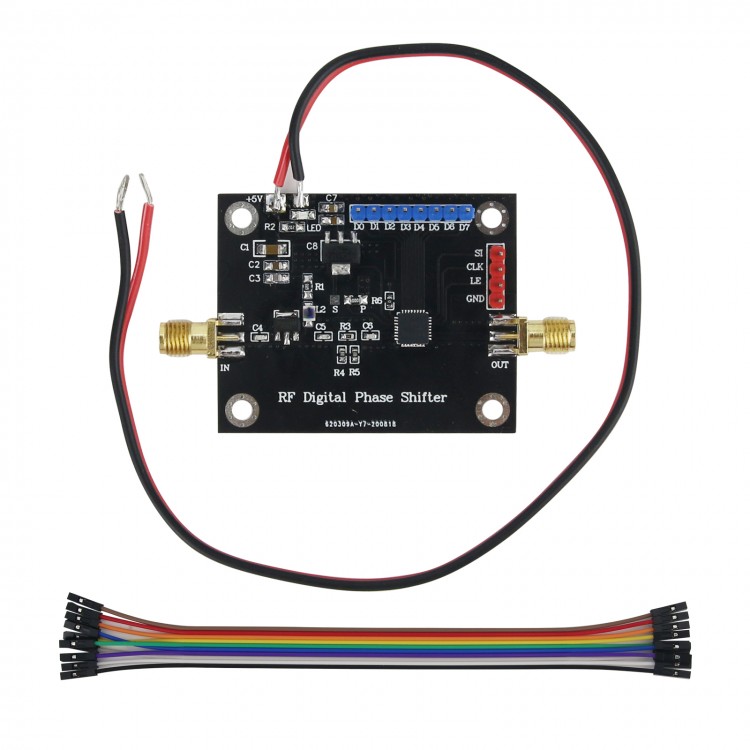

1-2.2GHz RF Digital Phase Shifter Without Shell Microwave Broadband Phase Shift Module 8Bit

Description:
The phase shifter is a device that controls the phase change of the signal and is widely used in radar systems, microwave communication systems, and measurement systems. This module adopts digital program control technology to realize the phase change of the input signal. It adopts 8bit serial or parallel control mode to meet high precision requirements. At the same time, the built-in adjustable gain module can make up for the signal attenuation caused by the insertion loss of the module.

Module Parameters:
1. Working frequency: 1-2.2GHz (wider frequency band can be customized)
2: Power supply: +5V single power supply
3: Phase control: 1.4°-358.6°
4. Phase accuracy: 1.4° high precision
5. Control mode: serial/parallel
6. Control bits: 8bit
7. Transmission gain: -5 to +10dB (settable)
8. Interface: SMA-K (customizable)
9. Module size: 49 x 40mm/1.9 x 1.6" (excluding the size of connectors)
10. With mounting holes

Package Included:
- 1 x RF Phase Shifter
