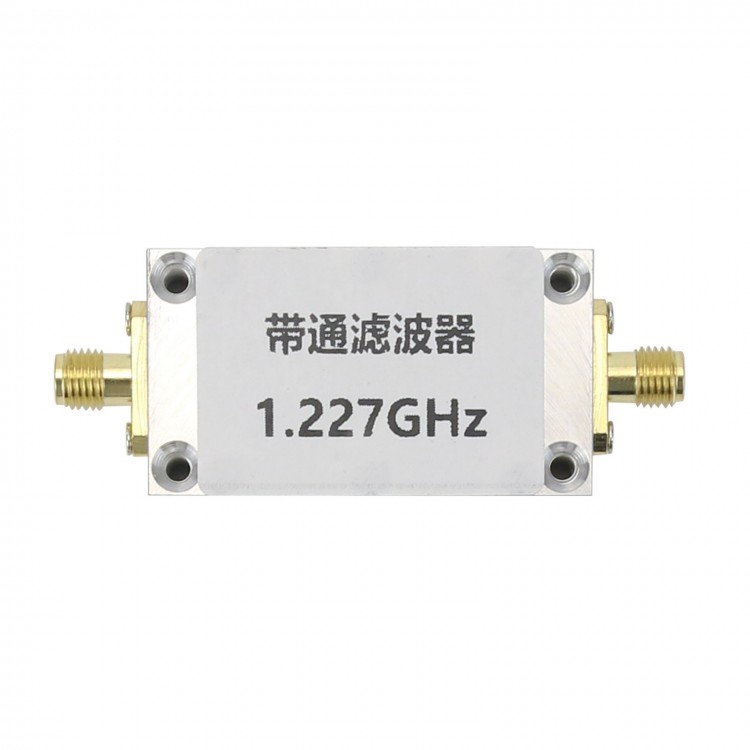

1.227GHz Band Pass Filter SAW BPF Filter with SMA Connector For GPS L2 Band Satellite Positioning

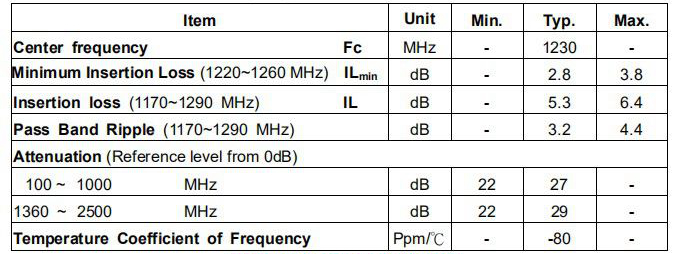

Specifications:
- Item Name: Bandpass filter
- Characteristic Impedance: 50 Ohms
- Center Frequency: 1230MHz Typical
- Pass Band: 25M (see actual measurement index for details)
- Insertion Loss: <3dB
- Input Power: <0.2W
- Interface: SMA
- Product Size: 45 x 25 x 12mm (LxWxH)
Package Included:
- 1 x Bandpass Filter

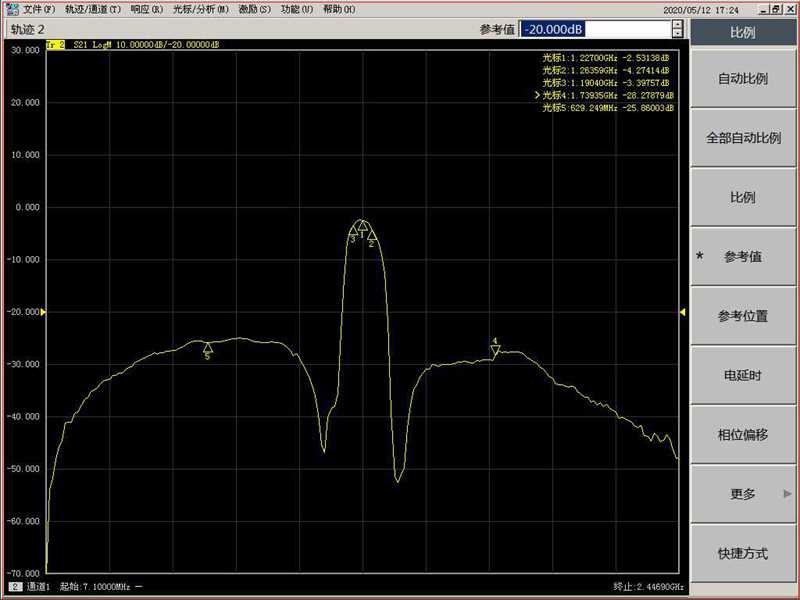

Measured S21 Parameters:
