Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $282.42 | $276.65 | $268.01 | $256.48 | Contact US |

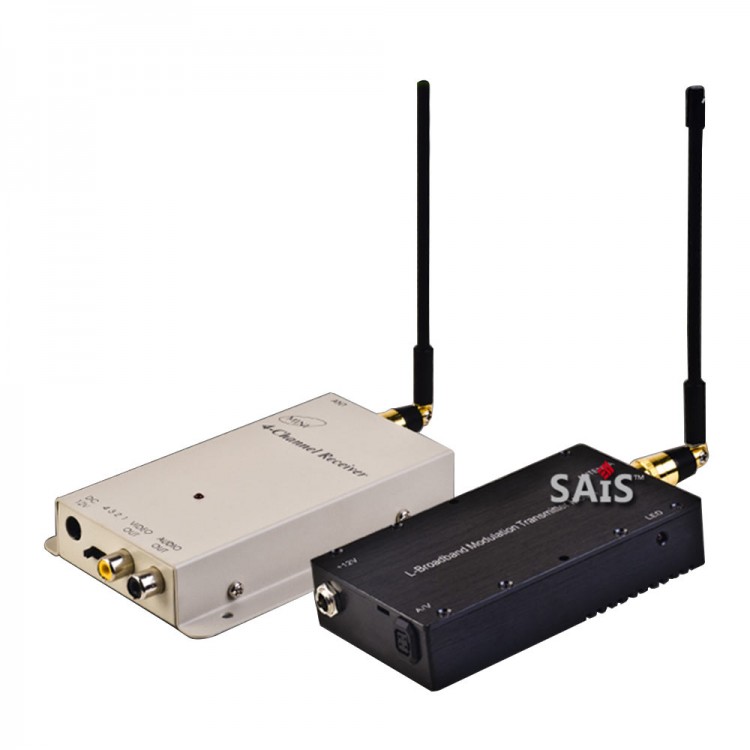

1.2G 8W Wireless Audio Video AV Transmitter 4CH Receiver System Transceiver Telemetry Set
Features:
- Dual channel audio output
- Compatible with DVD/DVR/Camer/IPTV/set-top box/Digital TV/Monitor or home audio transmission
- Support PAL/NTSC video transmission and stereo audio transmission
- Transmission distance: 5-6Km (need to be used with antenna in open area)
- This device is with super power, so will be more heat
Specification:
- Waveband: L waveband
- 1.2G frequency: 1060-1380Mhz
- Transmit power: 2W
- Operating voltage: DC12V
- Operating current: 1200mA
- Output power: 8W(39dbm)
- Operating frequency: 1.2G
- Channel: 4 (1:1080MHZ 2:1120MHZ 3:1160MHZ 4:1200MHZ)
- Channel 2 is for the maximum power. Futher distance with good signal,pls choose channel 2,then 3,4,1
- Transmitter size: Hight 108mm*width58mm*thickness21mm
- Receiver size: 130*80*21mm
- Transmitter weight: 0.22kh
- Receiver weight: 0.14kg
- Power adapter: DC12V 2A for transmitter;DC12V 1A for receiver
Package List:
- 1 x Transmitter
- 1 x Receiver
- 1 x 4P cable
- 1 x AV line
- 2 x Transit line
- 1 x Clip
- 2 x Antenna
- 2 x Power adapter
