1.2GHz 4W Wireless Audio Video AV Transmitter Receiver Transceiver Telemetry Set for FPV

1.2GHz 4W Wireless Audio Video AV Transmitter Receiver Transceiver Telemetry Set for FPV

Features:
- Taiwan production, using the most advanced international components, quality assurance, long life.
- Strong anti-interference. The audio / video signal using a very high frequency microwave transmission, the carrier frequency up to 1.3 GHZ. Therefore, it is effective to avoid the interference of 900MHZ, such as crowded radio telephone signal or all kinds of electric spark and household appliances, and at the same time, it can avoid the interference of the local transmitting frequency to other receiving equipment, the encryption is higher and more secure!
- Image sound distortion is small. The machine uses the superior performance of the FM mode, audio / video with broadband characteristics, and high signal to noise ratio; sound distortion is small, the real stereo wireless transmission.
- Dual channel audio output
- Compatible with DVD/DVR/Camer/IPTV/set-top box/Digital TV/Monitor or home audio transmission
- Support PAL/NTSC video transmission and stereo audio transmission
- Transmission distance: 2000-3000m (need to be used with antenna in open area)

Specification:
- Transmission frequency: 1.2-1.3Ghz
- Transmit power: 4000mW
- Operating voltage and current: 400MA DC12V
- Image signal: NTSC/PAL, 1Vp-p (2KOnm)
- Transmitter size: 95x58x19mm (without antenna connector)
- Receiver size: 132X80X20mm (including antenna connectors)
- Transmitter weight: 180g
- Receiver weight: 140g

Parameter:
- Waveband: L
- Frequency: 1060-1380Mhz
- Channel: 4
- Antenna input mpedance: 50Ohm
- Video input mpedance: 75Ohm
- Audio input mpedance: 600Ohm
- Power adapter: 12V 2A for transmitter/12V 1A for receiver

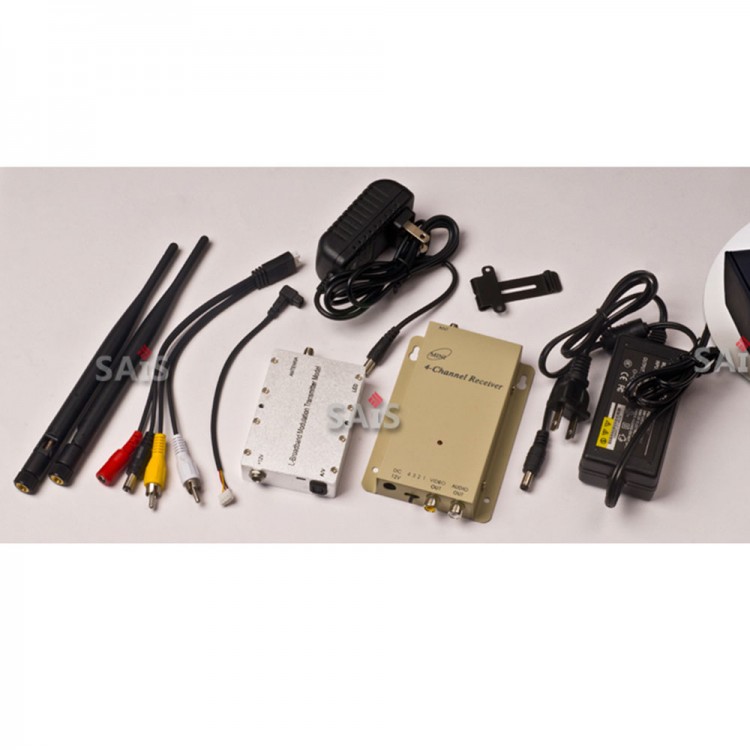

Package List:
- 1 x Transmitter
- 1 x Receiver
- 1 x Clip
- 2 x Transit line
- 2 x Antenna
- 2 x Power adapter
