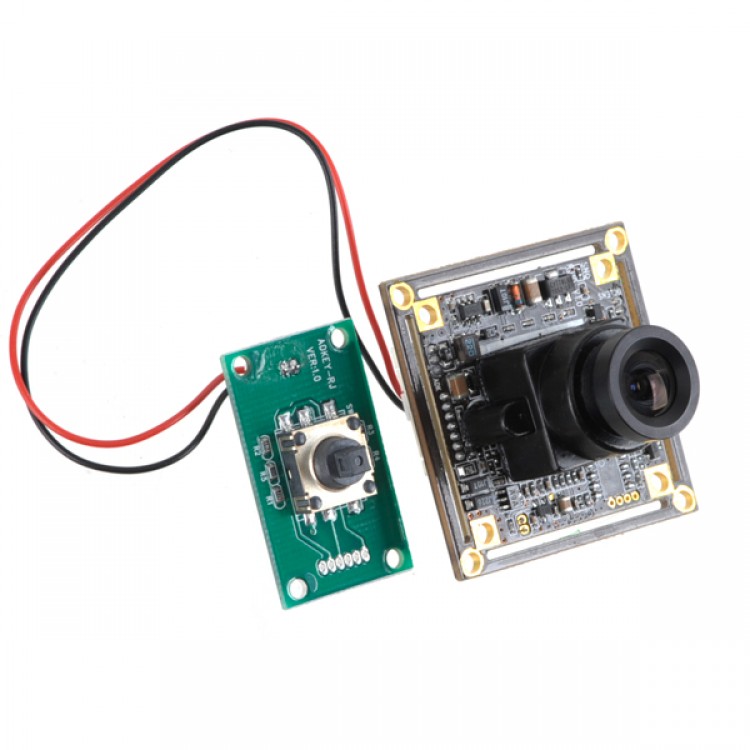

1/3" SONY 420TVL, LSI Super HAD Professional Color CCD PAL Board with Button

1/3" SONY 420TVL, LSI Super HAD Professional Color CCD PAL Board with Button
This high quality Color CCD Sony Board, can produce vivid, crisp high resolution color image.
The picture quality is superior to most of the similar cameras in the market, this is a Professional PAL Board Camera
 Features:
- SONY 1/3" LSI SUPER HAD Professional CCD Color Image sensor
- Picture element PAL 510(H) x 492(V)
- The 1/3" chip is more sensitive to light Compare to 1/4" Ship
- PAL System
- 420 TV Lines resolution
- Minimum Illumination: 0.1 Lux (The lower the Best)
- 12V DC
- Operating temperature -10°C ~ +50 °C
- 40X40mm (1.577 Inches)
Specifications:
- Image Sensor:1/3" SONY LSI Super HAD CCD
- Sensitive area:NTSC=510(H)x492(V)
- TV system:PAL (Only for PAL Systems)
- Sync. system:internal
- Resolution:420TV Line or more
- AGC:Yes
- BLC:Yes
- AWB:Yes
- Min illumination:0.1 Lux/F1.2
- S/N Ratio:>48dB (AGC off)
- Electronic shutter:1/50(1/60)-1/100,000 sec.
- Video output:BNC 1.0Vp-p 75ohm
- Power supply:12V  DC (No included)
- Auto IrisVideo/DC driver
- Size:40 x 40mm / 1.57 x 1.57 in
- Operating temp.:-10 to +50 centigrade degree
- Storage temp.:-20 to +60 centigrade degree

Packge including:1 PAL board with button
