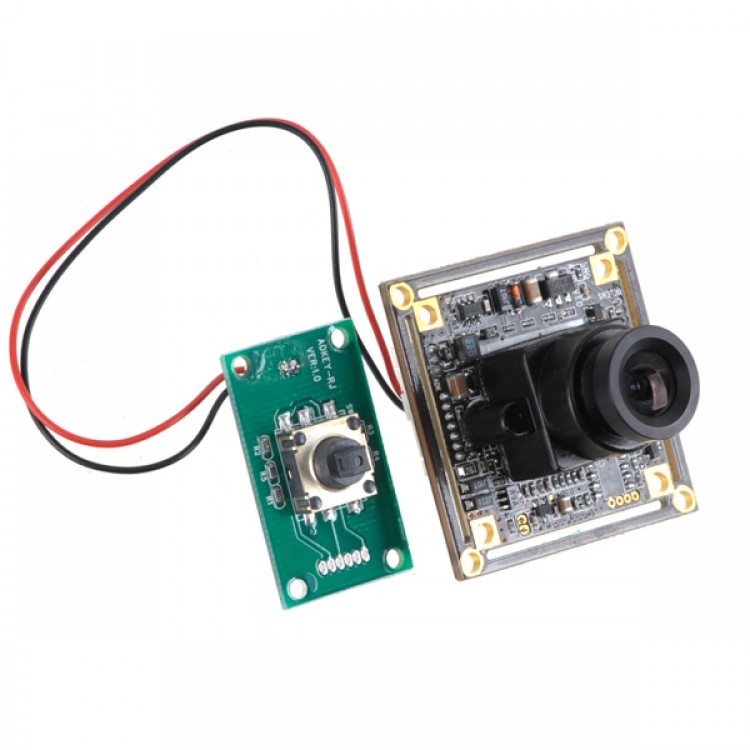

1/3" SONY LSI Super HAD Color Board CCD (NTSC) With Button
Features:
- This high quality Color CCD Sony Board can produce a clear vivid, crisp high resolution color image.
- The picture quality is superior to most of the similar cameras in the market, this is a Professional NTSC Sony Board Camera Chip
Specifications:
- Image Sensor:1/3" SONY CCD (Genuine SONY CCD Chip & Sensor)
- Sensitive Area: 510(H) X 492(V)
- TV system:NTSC
- Sync. system: Internal
- Resolution:20TV Line
- AGC:Yes
- BLC: Yes
- AWB: Yes
- Min illumination:
- 0.1 Lux/F1.2
- S/N Ratio: >48dB (AGC off)
- Electronic shutter:1/50(1/60)-1/100,000 sec.
- Video output: BNC 1.0Vp-p 75ohm
- Power supply:12V DC (No included)
- Auto Iris ：Yes, Video/DC driver
- Weight:20g
- Operating temp.:-15 to +60 centigrade degree
- Storage temp.: -25 to +65 centigrade degree
Package including: 1 SONY LSI Super HAD Color Board CCD (NTSC) with button
