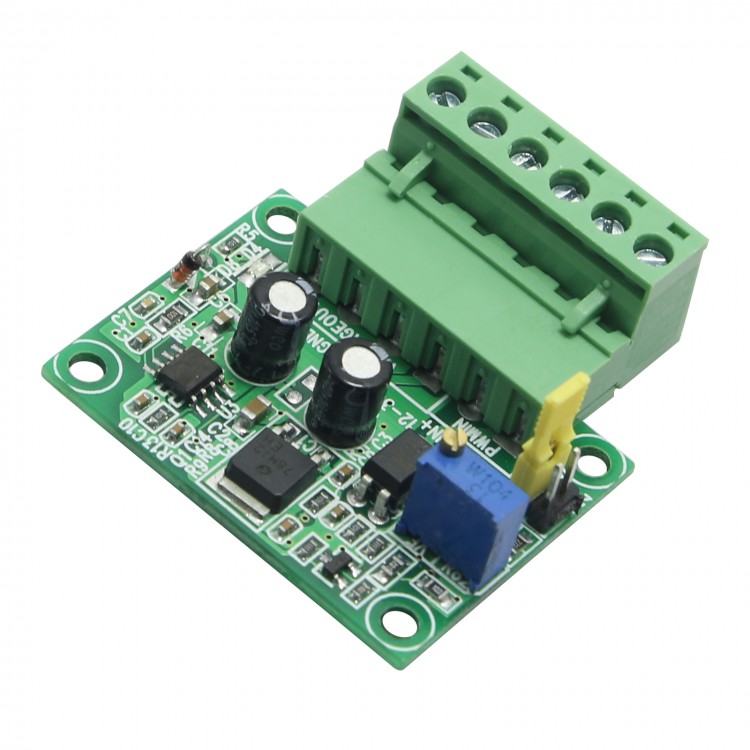

1-3KHZ to 0-10V PWM Signal to Voltage Converter Digital-Analog PLC

Main Parameters:

- Input: DC 12~30V

- Input current: no less than 100mA.



Note:

- After power-up, when there is no input signal, the output is 0V. There is output only when there is input.



Function:

- PWM converts digital signals into analog signal ( 0 to 10V). Can be used for industrial control panel PLC or other signal interface switching.



Use:

- PWM signal input frequency range: 1KHZ-3KHZ.

- PWM signal input level range:

- 4.5V to 10V peak to peak level,  jumper inserted at 5V. This type signal mainly for conventional industrial control card (such as MACH3 board), for 5V the CPU interface.

- 12 to 24V peak to peak level, jumper inserted at 24V. This type signal mainly for conventional PLC interface





0-10V analog output details:

- When the signal input port is not connected, the output port gives 10V.  The first time when we power on this module, we better calibrate it: find a 50% duty ratio signal, connect to DIN-, DIN+, the amplitude matches corresponding jumper. When frequency is at 1kHz ~ 3kHz, use a multi-meter to test AO, GND. The meter should be showing around 5V. We adjust the potentiometer on the converter module to make multi-meter shows 5V sharp. After this is done, we have calibrated and matched pulse signal with this converter module. The module has a definition of 0.1V. Output current 10mA. If duty ratio is in opposite to voltage, we can select or un-select PWM output pin STEP LOW / ACTIVE in MACH3 software.

- Power Input Range: 12V-30V (Power requirements: more than 100MA





Definitions about markings onboard:

DIN+: PWM signal input positive terminal. (When common negative connection, this port connects to PWM Signal. When  common positive connection, this port connects to 5V or 24V)

DIN-: PWM signal input negative terminal. (When common negative connection, this port connects to GND of signal. When  common positive connection, this port connects to PWM signal)

- 12-30V: power input positive terminal

GND: power supply ground

AO: Analog 0-10V output port

GND: signal ground. It is through to GND of power input.



Other Features:

- power supply with anti-false-connection protection

-  with power indicator LED onboard

- by adjusting potentiometer board, can match the calibration of different frequency PWM signal pulses
