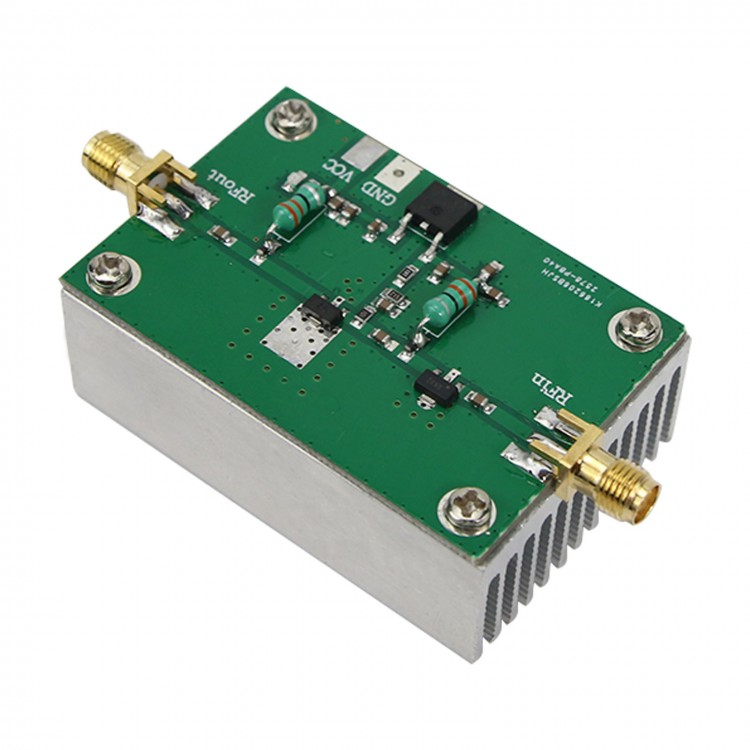

1-512MHz Wideband Amplifier RF Power Amplifier 1.6W HF FM VHF UHF For FM Amateur Radio Walkie Talkie
Application:
This wideband RF low-power amplifier is suitable for various types of radio transmission, such as shortwave FM wireless remote control, FM radio transmission, amateur radio 135-175MHz, and 380-470MHz walkie-talkie. When the low frequency input is 1mW, it can output a maximum of 1.6W. When inputting 512MHz, it can output a maximum of 1.0W. Equipped with heat sink, it can work stably for a long time.
Technical Parameters:
- Working Frequency: 1-512MHz
- Input Power: 1mW (0dBm)
- Maximum Output: 1.6W (32dBm) low frequency end; 1.0W (30dBm) high-frequency end
- Working Voltage: 12V (DC)
- Working Current: 270-370mA (determined by output power)
- RF Connector: standard SMA female
- Dimensions: 60 x 40 x 25mm (LxWxH)
- Product Weight: 75g (thick heat sink)
Package Included:
- 1 x Wideband Amplifier
