1.5KW 220V Water Cooling Motor Spindle Motor 4 Bearings for Engraving Machine GDZ-80-1.5B
Parameter:
- Material: The cover is made of 304 stainless steel, and the water jacket is high compression casting aluminum tube, red copper coil.
- Bearing: 6002 bearing (4pcs)
- Voltage and rated current: 380V, 5A
- Max Rotation Speed:24,000 RPM
- Frequencies: 400Hz
- Radial runout: 0.01mm
- Coaxality: 0.025mm (2.5 microns)

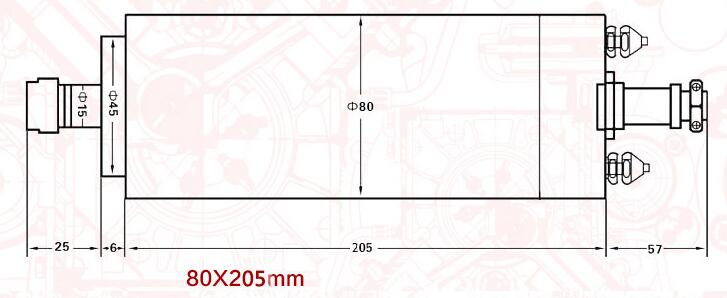

- Size: 80*205 (mm)
- Collet: ER11 collet, 6mm is standard
- Nut model: ER11-A(B)
- Cooling way: water cycling cooling way
- Power interface: GX16 water proof aviation plug marked with number 1, 2, 3, 4. Number 1, 2 and 3 interfaces are connected with inverter power U, V, W respectively. Number 4 is connected with earth wire
- Lubrication way: high temperature resistance grease lubrication
- Application: CNC router, wood carving/engraving machine, advertisement engraving machine, CNC machine, small sized processing center, high speed centrifuge etc.

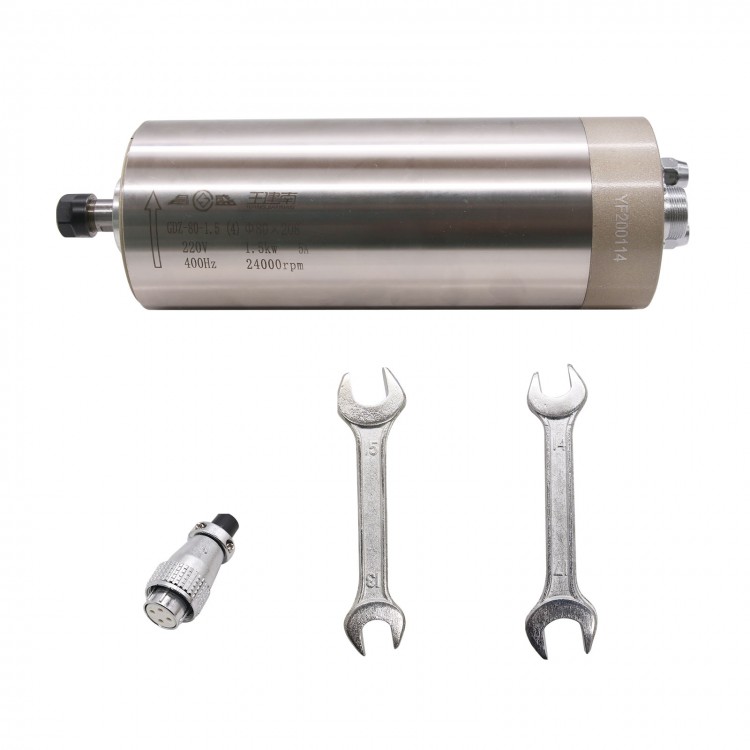

Package List:
- 1 x 1.5KW 220V Water Cooling Motor
