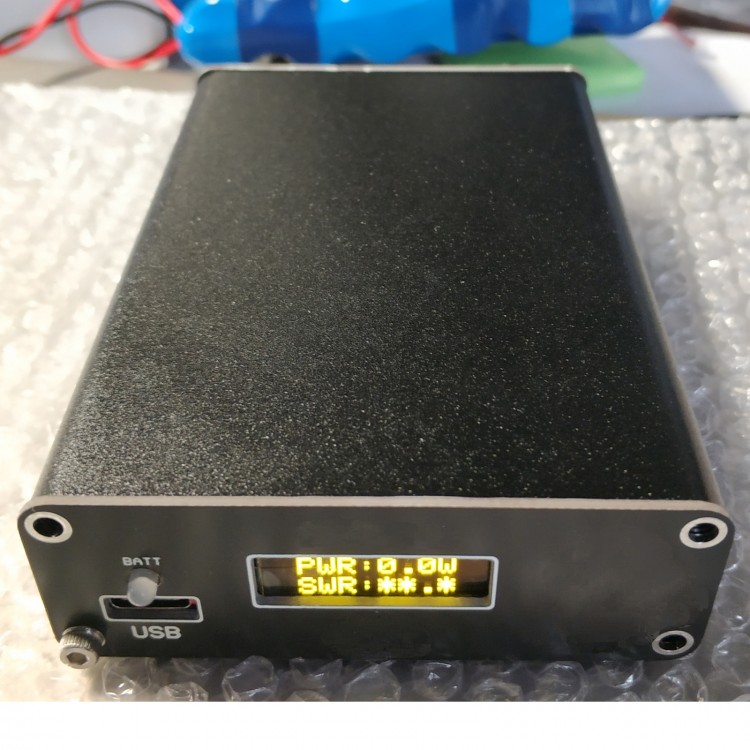

1.6-30MHz 0.1-12W SWR Power Meter PWR SWR Meter QRP RF Power Meter OLED12832 (SMA Connector)
Open source project:
https://g8gyw.github.io/
Application:
- Open source project based on G8GYW
- Power measurement and standing wave measurement
Specifications:
- Frequency range: 1.6MHz~30MHz
- Power range: 0.1w~12w
- Power Measurement Accuracy: Better than ± 5% (at 22°C)
- Standing wave range: 1.0-19.9
- Insertion loss: < 0.15dB
- Instrument standing wave: < 1.02 at 50 Ω
- RF interface: SMA
- Charging interface: type-C
- Dimensions: 71 x 26 x 100mm/2.8 x 1 x 3.9" (without protrusions)
- Built-in battery: 800mAh
Introduction:
- After startup, the version information and battery voltage are displayed first
- After 2s, power and standing wave measurement interface will be displayed
- Red light is on when it is charging, and the red light is off when it is fully charged.
Package Included:
- 1 x Type-C Data Cable
- 1 x Power & SWR Meter
- 2 x SMA-BNC Adapters
