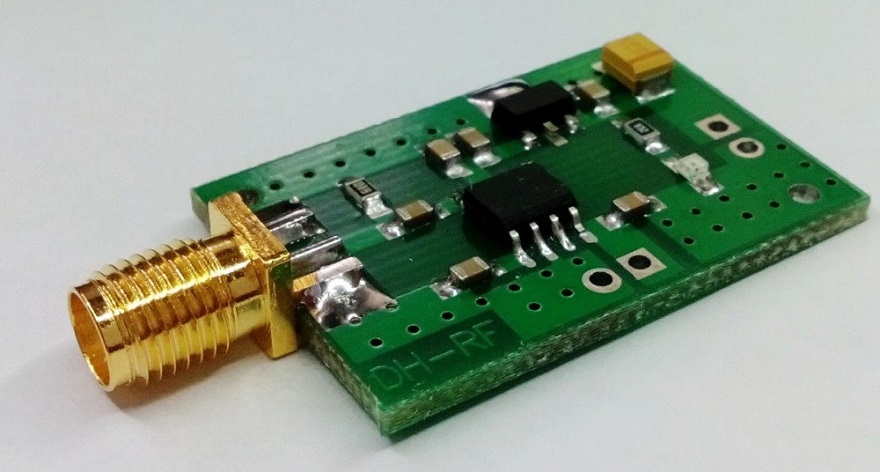

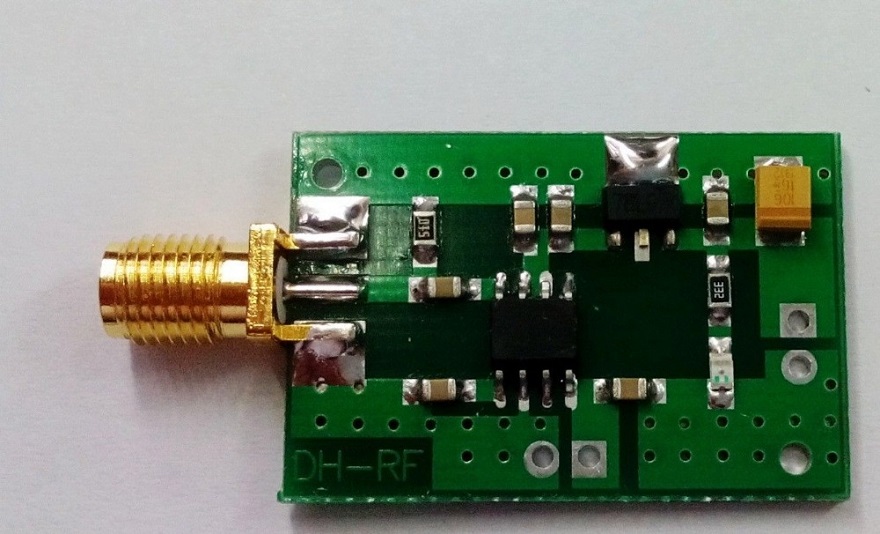

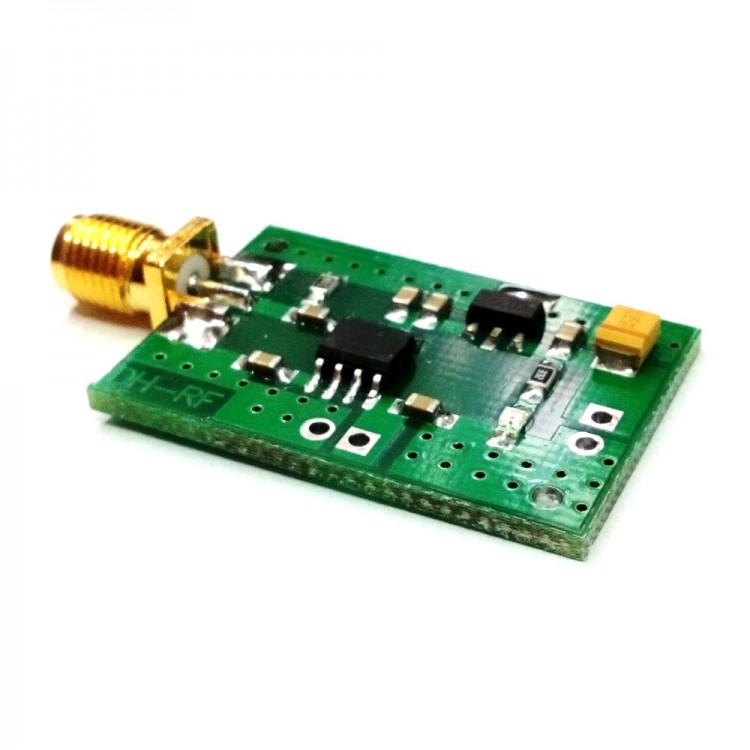

Features:

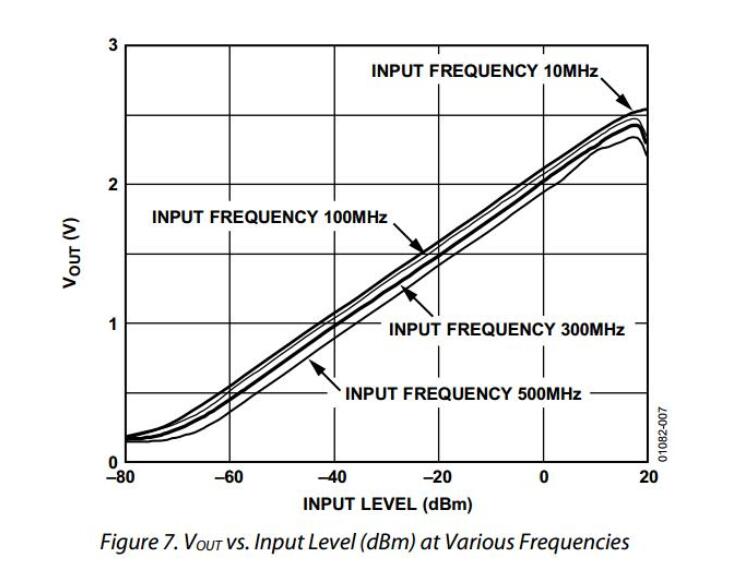

- RF signal power detector for detecting a frequency range 1MHZ~600MHZ,can detect power -74dBm to 18dBm of a radio frequency signal,so that the RF signal is converted into a DC voltage output.RF signal amplitude or power the greater the higher the output voltage,output voltage proportional to the logarithm of the amplitude of the input signal,which is to expand the dynamic range of the detection signal,which range up to 92dB.
- It can be widely used in the RF signal detection,signal power measurements,environmental field testing,can be used as part of the automatic gain control and automatic level control,the baby through the appropriate transformation can be made 1mW~1KW RF power meter.
- You can also output power as a product conformance testing standards.
Specifications:
- Operating frequency: 1MHZ~600MHZ
- Measuring Power: -74dBm to + 18dBm
- Output voltage: 0~2.5V
- Detection slope: 25mV/dBm (typ)
- Input Impedance: 50 ohms
- Supply voltage: 6-15V (can be customized)

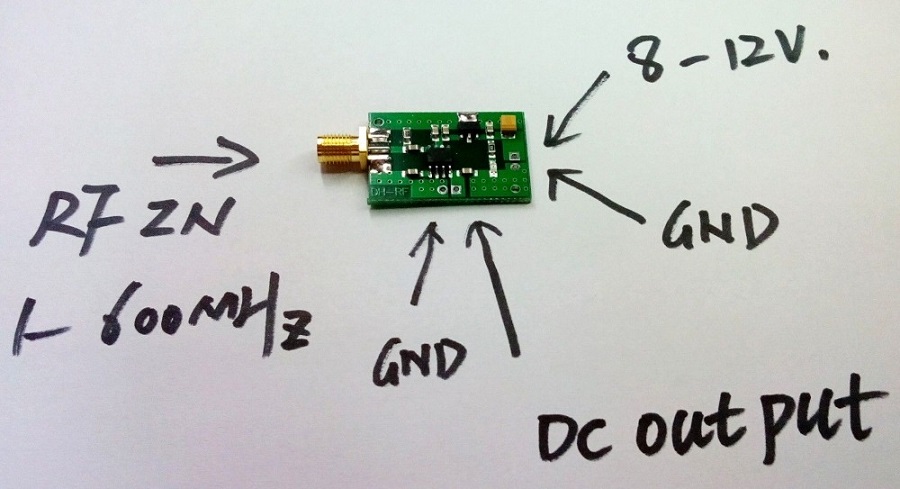

- Signal interface: standard SMA female RF input terminal,power and detection output of 2.54 pin,wherein a pin for the ground,in addition to a power source or the detector output.
Package List:
- 1 x Module
