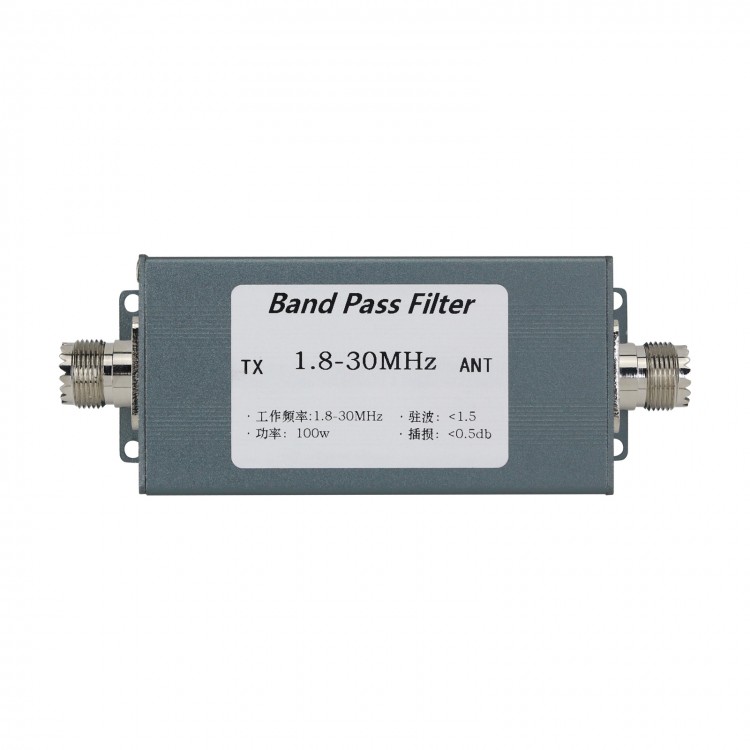

1.8-30MHz Band Pass Filter BPF Bandpass Filter Anti-interference Improve Selectivity Suppress Clutter
Specifications:
- Input impedance: 50Ω; Output impedance: 50Ω
- Operating frequency: 1.8-30MHz
- Insertion loss: <0.5db
- 45db attenuation at 1MHz, 45db attenuation at 56MHz
- Power: 100w (SSB CW AM FM). Higher power can be customized
- Standing wave: <1.5
- Interface: SL16-F (M socket)
- Size: 140 x 53 x 38mm/5.5 x 2.1 x 1.5"
- Net weight: 190g/0.4 lb
Package Included:
- 1 x Band Pass Filter
Attention:
- After IC-718 radio and SX-600 power meter test, the input power to this bandpass filter is 125w and the output is 110w-115w (slightly different depending on the frequency band).
- Special occasions: This band-pass filter is suitable for use in short-wave communication where the radio station is very close to the medium-wave radio station or is subject to strong medium-wave interference, and can also be used in the occasion where the short-wave radio station interferes with cable TV users during transmission.
- General occasion: When the shortwave radio is working, in order to reduce the electromagnetic interference from the surrounding as much as possible, this band-pass filter can be connected, which will greatly improve the signal-to-noise ratio.
Note:
- If you need one with the frequency range of 1.5-30MHz or 3.5-30MHz, or with higher power, we can offer customization services for you. Please feel free to contact us. Thank you!
